SIDE MEMBER

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

55705DPANEL SUB-ASSY, COWL TOP SIDE, RH,

main55705-28030i201304

5752HOLE PLUG

→ Go to FIG 57-52

61063BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, RH

main61063-28060i201304

61101PANEL SUB-ASSY, COWL SIDE, RH

main61013-28051i201304

61106BPILLAR SUB-ASSY, FRONT, RH

main61106-28040i201304

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-28030i201304

61158AEXTENSION, FRONT PILLER, LOWER RH

main61158-28010i201304

61167EBRACKET, NO.6 PILLAR OUTER

main61168-44010i201304

61215ARAIL, ROOF SIDE, OUTER NO.3 RH

main61215-28040i201304

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-28010i201304

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-28100i201304

61237EBRACKET, ASSIST GRIP, NO.1

main61237-28010i201304

NO.1

main61237-28020i201304

NO.2

61247DBRACKET, ASSIST GRIP, RH

main61247-28010i201304

FRONT

main61247-28020i201304

REAR

61255PLATE, ROOF SIDE RAIL, OUTER RH

main61255-28030i201304

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-28210i201304

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-28020i201304

61311BPILLAR, CENTER BODY, OUTER RH

main61311-28130i201304

61315CRETAINER, DOOR LOCK STRIKER, RH

main61315-48010×2i201304

61365BREINFORCE, BELT ANCHOR TO CENTER PILLAR, NO.3 RH

main61365-60040×2i201304

61411PANEL, ROCKER, OUTER RH

main61411-28070i201304

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-28040i201304

61425REINFORCEMENT, ROCKER PANEL, NO.4 RH

main61425-28011i201304

61503AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH

main61503-28100i201304

61515BEXTENSION, QUARTER LOCK PILLAR, RH

main61515-28060i201304

61525REINFORCEMENT, QUARTER LOCK PILLER, UPPER RH

main61525-28040i201304

61527REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH

main61527-28030i201304

61575BPLATE, CAB REAR PILLAR, UPPER RH

main61575-28010i201304

61611PANEL, QUARTER, RH

main61601-28A71i201304

61615FREINFORCEMENT, QUARTER PANEL, OUTER RH

main61615-28050i201304

61619DREINFORCEMENT, QUARTER PANEL, RH

main61619-28060i201304

61625GEXTENSION, QUARTER PANEL, REAR RH

main61625-28100i201304

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-28070i201304

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-28090i201304

61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

main61665-28040i201304

61681CEXTENSION, REAR WHEEL OPENING, RH

main61681-28080i201304

61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH

main61717-28030i201304

61731BPANEL, ROOF SIDE, INNER RH

main61731-28050i201304

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-28030i201304

61733EPANEL, ROOF SIDE, INNER FRONT RH, NO.2

main61733-28040i201304

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-28030i201304

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-28060i201304

61764BREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH

main61764-28070i201304

61768AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH

main61768-28060i201304

61771BFRAME, BACK DOOR OPENING UPPER CORNER, RH

main61771-28070i201304

61775CFRAME, BACK DOOR OPENING SIDE, RH

main61775-28040i201304

61777DRETAINER, BACK DOOR SIDE STOPPER, RH

main61777-28030i201304

62553DPAD, PILLAR, NO.3

main62939-28020×2i201312

main62939-32020×2i201304-201312

62554BPAD, PILLAR, NO.4

main62554-52010×2i201304

62615ECOVER, QUARTER WHEEL HOUSE, INNER RH

main62603-28390i201304

65637BLINER, REAR WHEEL HOUSE, RH

main65637-28011i201304

6758SLIDE ROLLER & RAIL

→ Go to FIG 67-58

68308BRAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-28050i201304-201605

68353APLATE, SLIDE DOOR RAIL PROTECTOR

main68353-28020×2i201304

68981ARETAINER, BACK DOOR STAY, RH

main68981-28030i201304

76587APROTECTOR, CENTER PILLAR OUTER

main76587-28030×4i201304

9011906782

main90119-06782

9011911041

main90119-11041

9017806011

main90178-06011

9018906157

main90189-06157

9046709166

main90467-09166

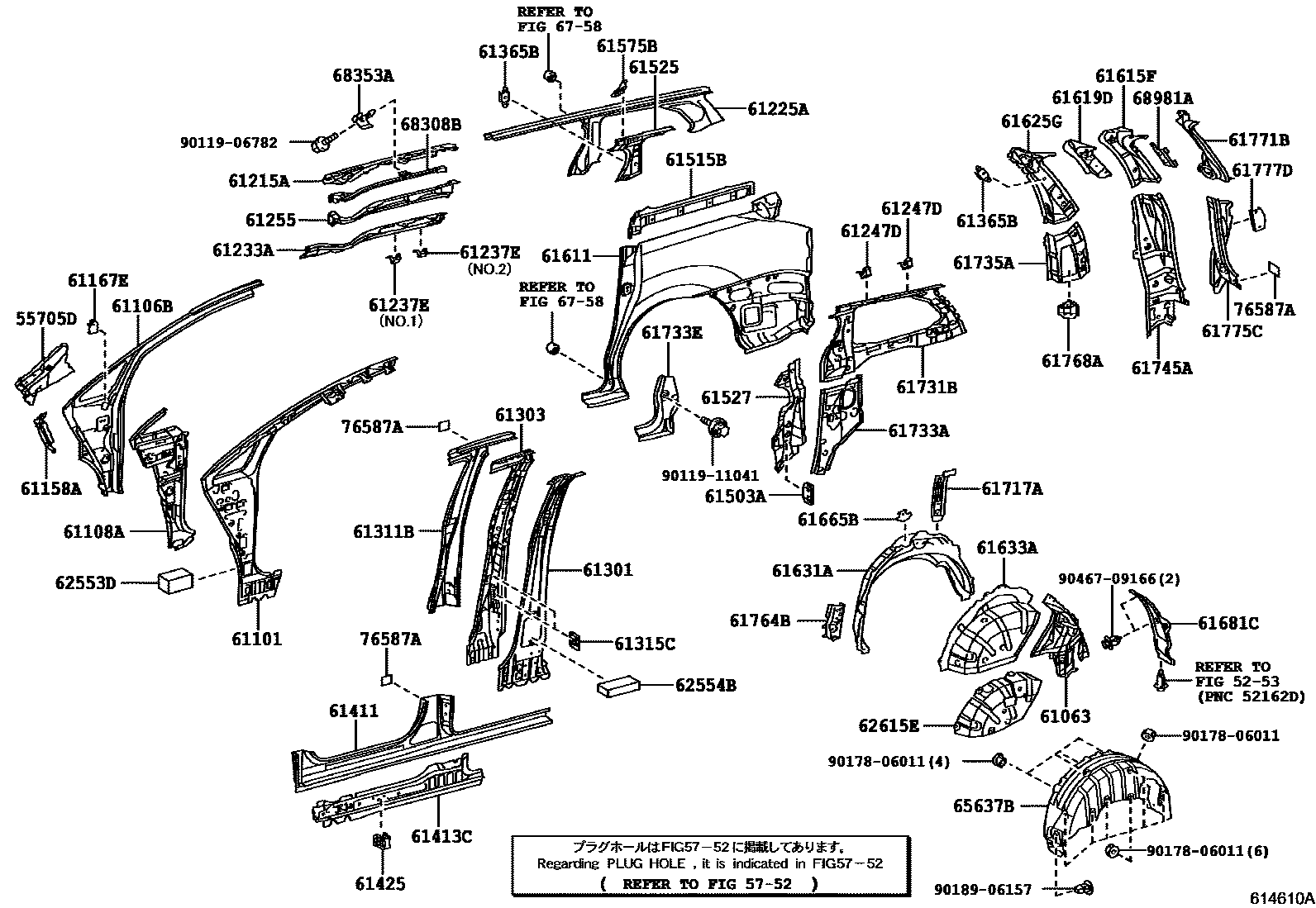

61 parts on this diagram · 2 diagrams in section
