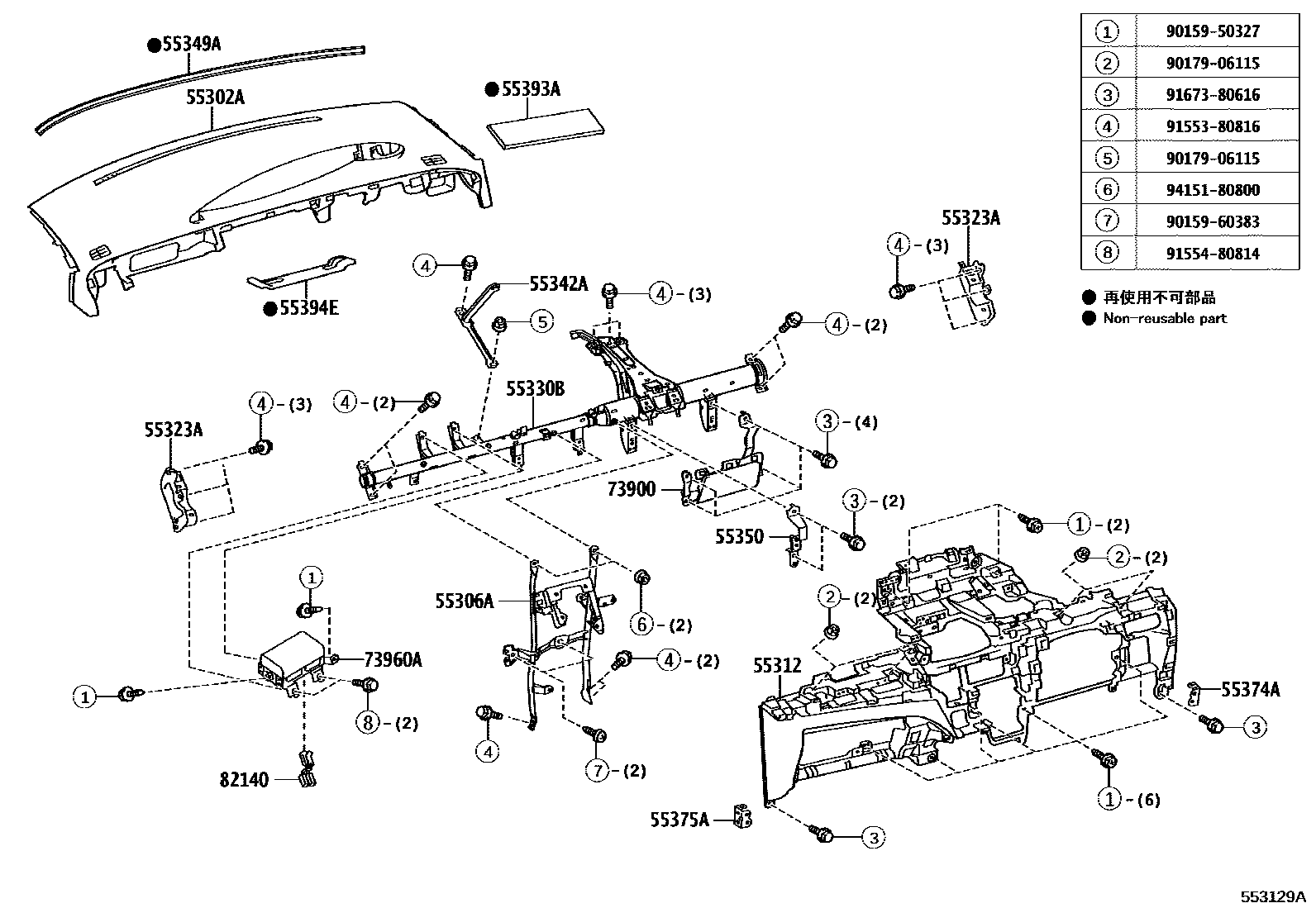

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-28210-E0iAHR20201304-201605

DK. BROWN,TRIM0#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-28190iAHR20201304

55312PANEL, INSTRUMENT, LOWER

main55312-28060-A0iAHR20201304-201404

SHELL,TRIM0#

main55312-28061-A0iAHR20201405-201605

SHELL,TRIM0#

55323ABRACKET, INSTRUMENT PANEL, NO.3

main55304-28020iAHR20201304

RH

main55304-28030iAHR20201304

LH

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-28220iAHR20201304

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-28060iAHR20201304

55349ACUSHION, INSTRUMENT PANEL

main55349-28250iAHR20201304

55350BRACE ASSY, INSTRUMENT PANEL

main55350-28010iAHR20201304

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55374-28050iAHR20201304-201605

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55375-28050iAHR20201304-201605

55393ACUSHION, INSTRUMENT PANEL, LOWER NO.3

main55393-28080iAHR20201304

55394ECUSHION, INSTRUMENT PANEL, LOWER NO.4

main55394-28040iAHR20201304

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-28010-A0iAHR20201304-201605

SHELL,TRIM0#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-28070iAHR20201304

82140WIRE ASSY, INSTRUMENT PANEL

main82140-28010iAHR20201304

9015950327

main90159-50327

9015960383

main90159-60383

9017906115

main90179-06115

9155380816

main91553-80816

9155480814

main91554-80814

9167380616

main91673-80616

9415180800

main94151-80800

22 parts on this diagram · 4 diagrams in section
