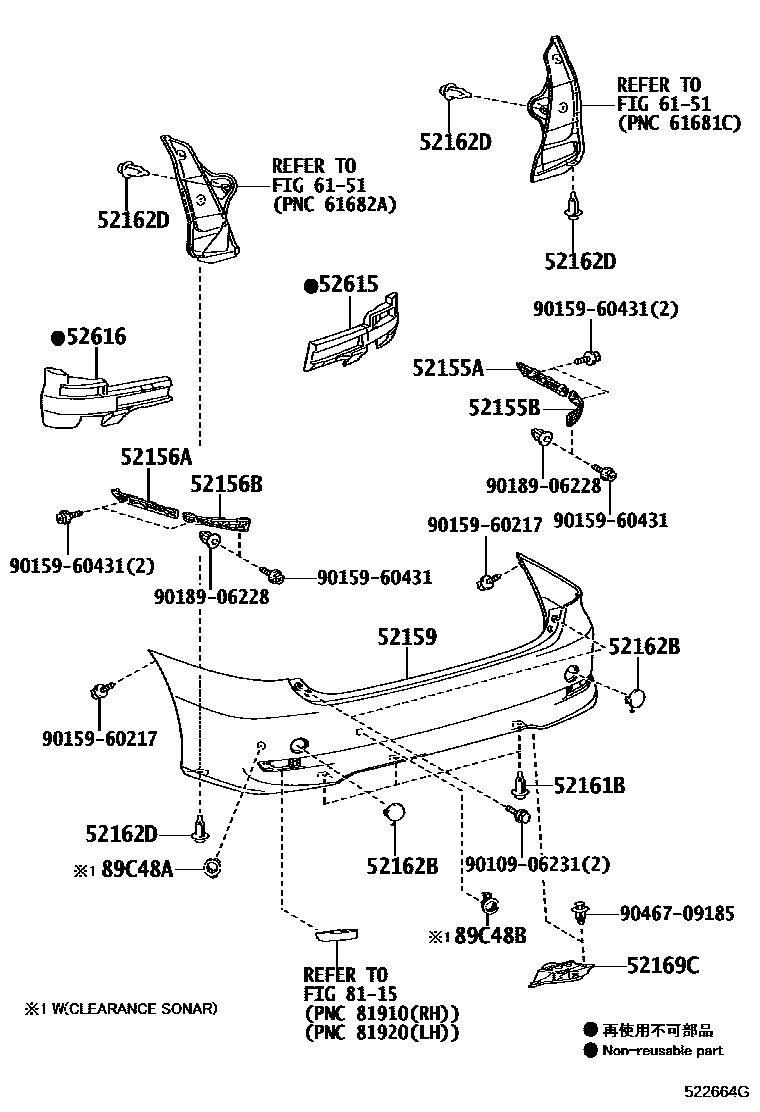

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52155BSUPPORT, REAR BUMPER SIDE, NO.2 RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52156BSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.,CLEARANCE SONAR-WITH
52161BPIECE, REAR BUMPER
52162BPLATE, REAR BUMPER, NO.1
WHITE PEARL CS.,070
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
DEEP RED M.M.,3R9
52162DPIECE, REAR BUMPER
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
52615ABSORBER, REAR BUMPER ENERGY
52616ABSORBER, REAR BUMPER ENERGY, LH
6151SIDE MEMBER
8115REFLEX REFLECTOR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
CLEARANCE SONAR-WITH,WHITE PEARL CS.,070
CLEARANCE SONAR-WITH,SILVER ME.,1F7
CLEARANCE SONAR-WITH,ICE TITANIUM M.M.,1H4
CLEARANCE SONAR-WITH,BLACK,202
CLEARANCE SONAR-WITH,BORDEAUX M.M,3R9
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
CLEARANCE SONAR-WITH,WHITE PEARL CS.,070
CLEARANCE SONAR-WITH,SILVER ME.,1F7
CLEARANCE SONAR-WITH,BLACK,202
CLEARANCE SONAR-WITH,BORDEAUX M.M,3R9
CLEARANCE SONAR-WITH,ICE TITANIUM M.M.,1H4
9010906231
main90109-06231
9015960217
main90159-60217
9015960431
main90159-60431
9018906228
main90189-06228
9046709185
main90467-09185
20 parts on this diagram · 1 diagram in section
