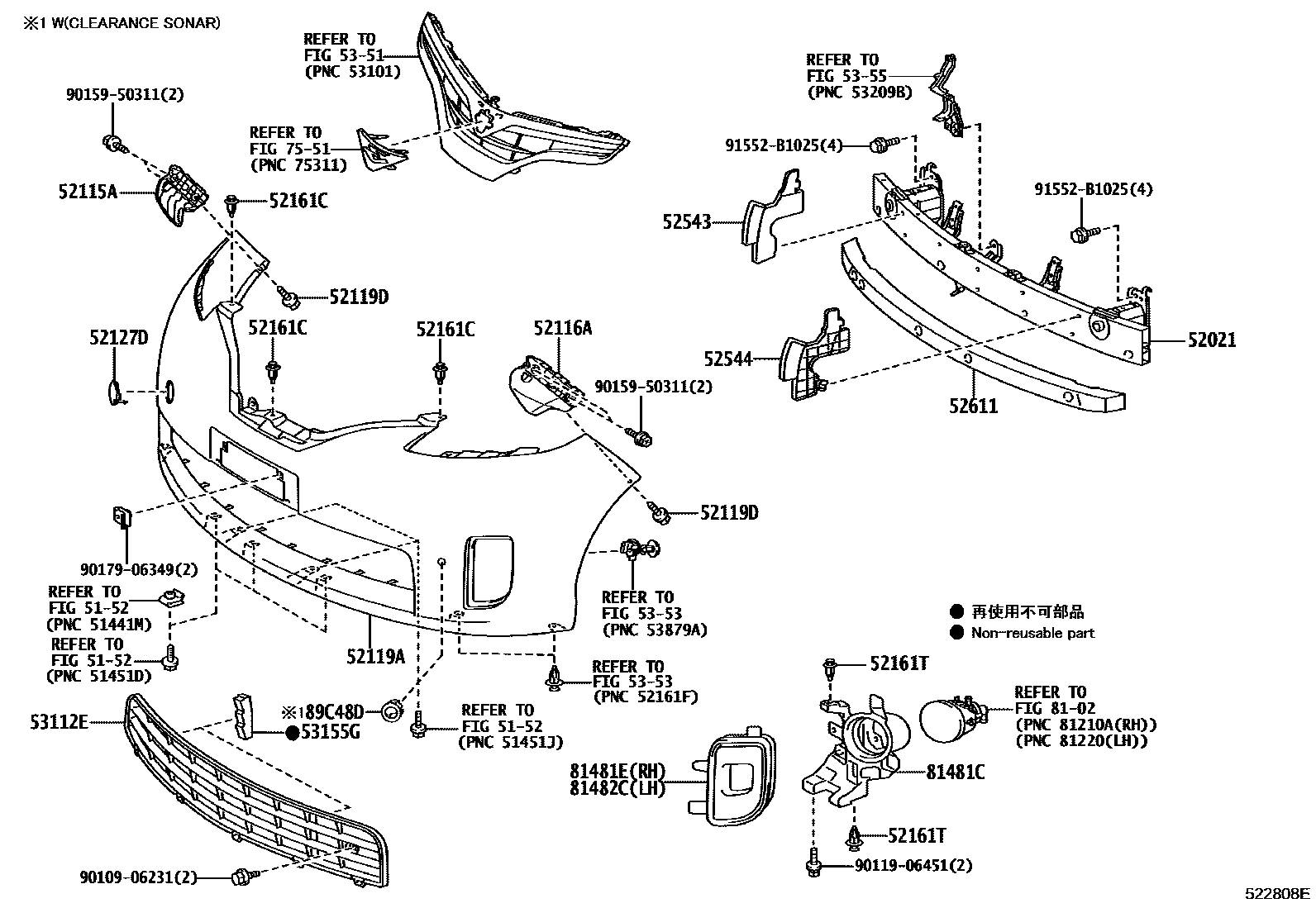

FRONT BUMPER & BUMPER STAY
5152SUSPENSION CROSSMEMBER & UNDER COVER
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.,CLEARANCE SONAR-WITH
52119DSCREW, NO.1
52127DCOVER, FRONT BUMPER HOLE, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
BORDEAUX M.M,3R9
52161CPIECE, FRONT BUMPER
52161TPIECE, FRONT BUMPER
52543SEAL, FRONT BUMPER SIDE, RH
52544SEAL, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
53155GSEAL, RADIATOR GRILLE
5351RADIATOR GRILLE
5353HOOD & FRONT FENDER
5355FRONT FENDER APRON & DASH PANEL
7551EMBLEM & NAME PLATE
8102FOG LAMP
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
CLEARANCE SONAR-WITH,WHITE PEARL CS.,070
CLEARANCE SONAR-WITH,SILVER ME.,1F7
CLEARANCE SONAR-WITH,ICE TITANIUM M.M.,1H4
CLEARANCE SONAR-WITH,BLACK,202
CLEARANCE SONAR-WITH,BORDEAUX M.M,3R9
9010906231
main90109-06231
9011906451
main90119-06451
9015950311
main90159-50311
9017906349
main90179-06349
91552B1025
main91552-B1025
28 parts on this diagram · 1 diagram in section
