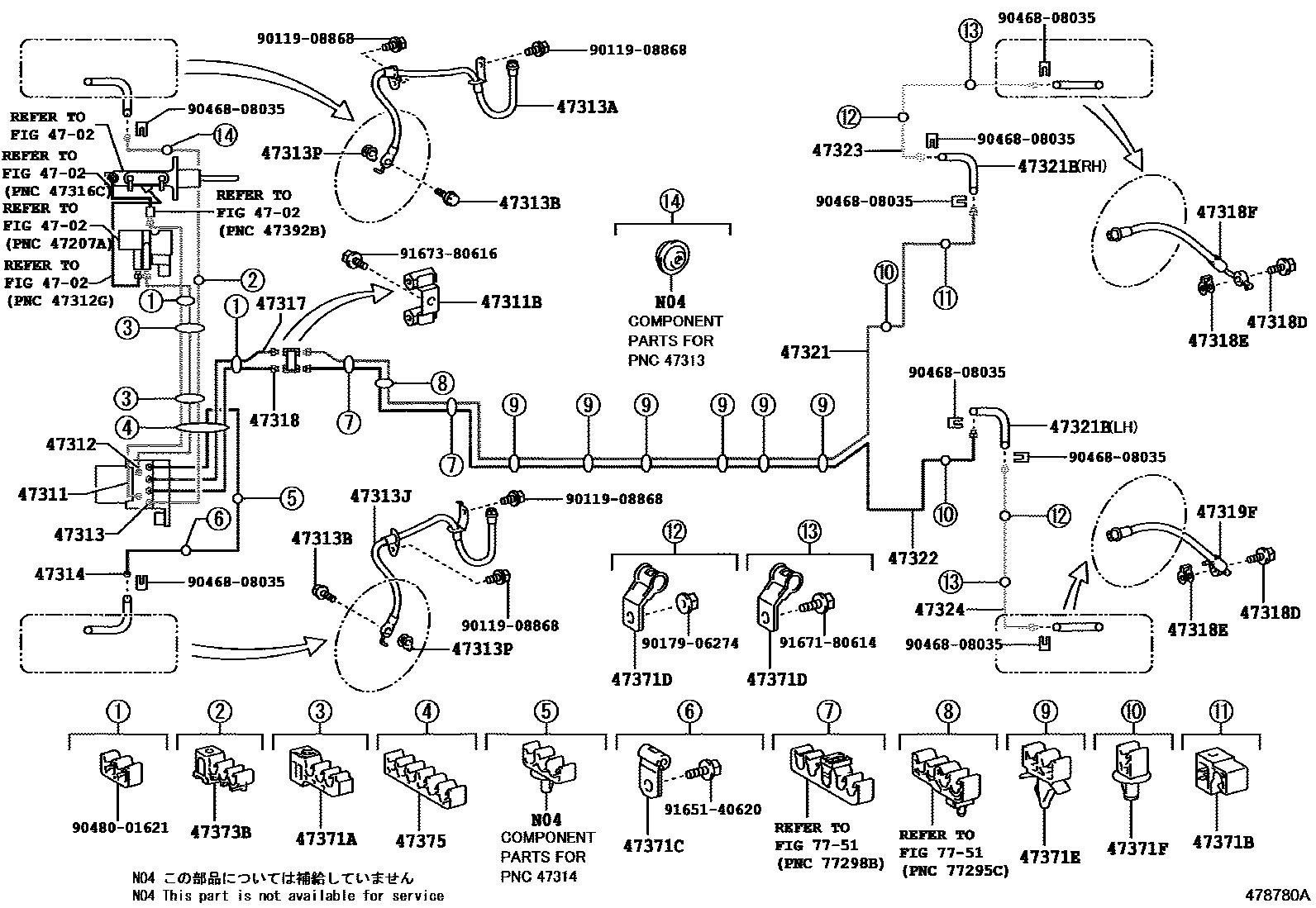

BRAKE TUBE & CLAMP

0001 1 0002 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-28750iAHR20201304-201409

main47311-28810iAHR20201409

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iAHR20201304

47312TUBE, FRONT BRAKE, NO.2

main47312-28550iAHR20201304-201409

main47312-28610iAHR20201409

47313TUBE, FRONT BRAKE, NO.3

main47313-28470iAHR20201304-201409

main47313-28540iAHR20201409

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02E55iAHR20201304

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iAHR20201304

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02E56iAHR20201304

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iAHR20201304

47314TUBE, FRONT BRAKE, NO.4

main47314-28390iAHR20201304-201409

main47314-28460iAHR20201409

47317TUBE, FRONT BRAKE, NO.7

main47317-28270iAHR20201304-201409

main47317-28340iAHR20201409

47318TUBE, FRONT BRAKE, NO.8

main47318-28090iAHR20201304-201409

main47318-28120iAHR20201409

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iAHR20201304

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iAHR20201304

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02F45iAHR20201304

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02F46iAHR20201304

47321TUBE, REAR BRAKE, NO.1

main47321-28540iAHR20201304-201409

main47321-28600iAHR20201409-201605

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02E60iAHR20201304

RH

main90947-02F44iAHR20201304

LH

47322TUBE, REAR BRAKE, NO.2

main47322-28350iAHR20201304-201409

main47322-28420iAHR20201409-201605

47323TUBE, REAR BRAKE, NO.3

main47323-28360iAHR20201304-201409

main47323-28420iAHR20201409

47324TUBE, REAR BRAKE, NO.4

main47324-28260iAHR20201304-201409

main47324-28320iAHR20201409

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01D08×2iAHR20201304

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01C82iAHR20201304-201605

47371CCLAMP, BRAKE TUBE, NO.7

main90461-08730iAHR20201304

47371DCLAMP, BRAKE TUBE, NO.8

main90461-10731×4iAHR20201304

47371ECLAMP, BRAKE TUBE, NO.9

main90469-07019×6iAHR20201304-201605

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D29×2iAHR20201304-201407

main90949-01E01×2iAHR20201407-201605

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01C95iAHR20201304

47375CLAMP, BRAKE TUBE, NO.5

main90464-00890iAHR20201304-201409

main90949-01E17iAHR20201409

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9011908868

main90119-08868

9017906274

main90179-06274

9046808035

main90468-08035

9048001621

main90480-01621

9165140620

main91651-40620

9167180614

main91671-80614

9167380616

main91673-80616

37 parts on this diagram · 2 diagrams in section
