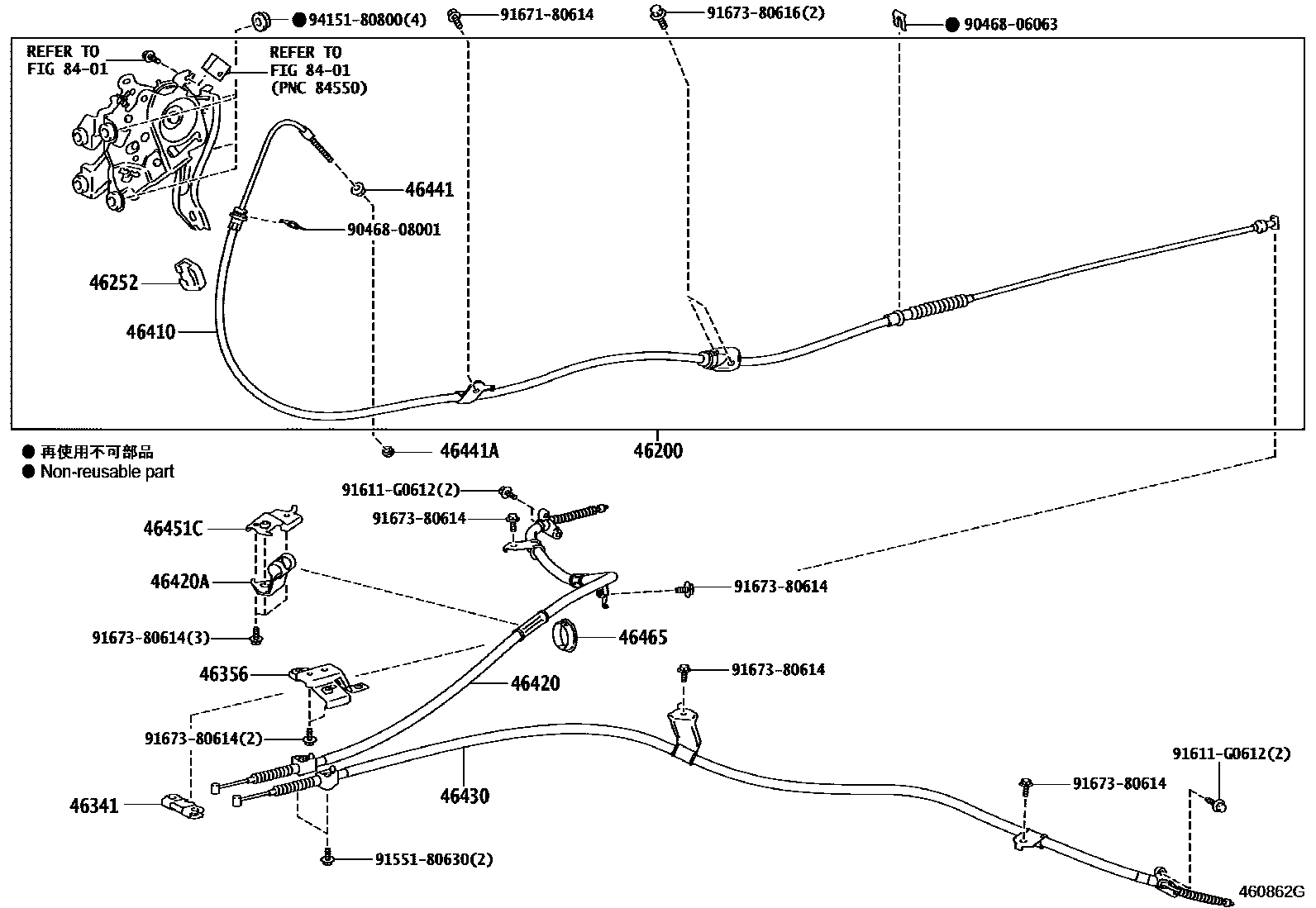

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-28070iAHR20201304-201401

46252PAD, PARKING PEDAL

main46252-52020iAHR20201304

46341EQUALIZER, PARKING BRAKE

main46341-20070iAHR20201304

46356BRACKET, EQUALIZER SUPPORT

main46356-28080iAHR20201304

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-28280iAHR20201304-201310

sub46410-28281

main46410-28281iAHR20201311

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-28471iAHR20201304-201605

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01B71iAHR20201304

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-28411iAHR20201304-201605

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iAHR20201304-201401

main90177-06003iAHR20201403

TYPE B:REFER ILLUST.

main90182-06008iAHR20201401

TYPE A:REFER ILLUST.

46441ANUT, WIRE ADJUSTING, NO.2

main94151-80600iAHR20201304-201401

main94151-80600iAHR20201401

TYPE A:REFER ILLUST.

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-28160iAHR20201304

46465GUIDE, PARKING BRAKE CABLE, RH

main46465-28020iAHR20201304

8401

9046806063

main90468-06063

9046808001

main90468-08001

9155180630

main91551-80630

91611G0612

main91611-G0612

9167180614

main91671-80614

9167380614

main91673-80614

9167380616

main91673-80616

9415180800

main94151-80800

21 parts on this diagram · 3 diagrams in section
