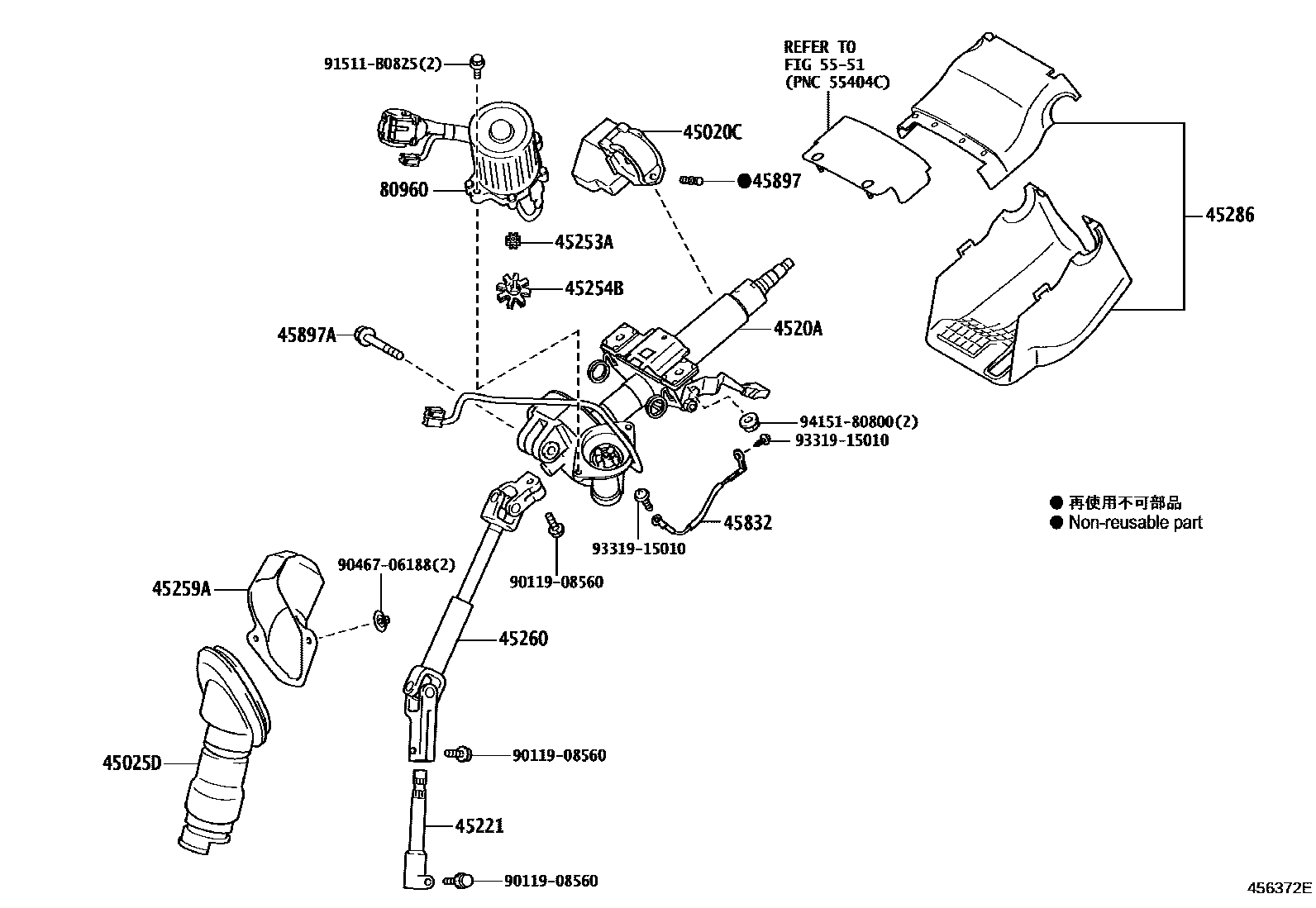

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-42150iAHR20201304-201605

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-28090iAHR20201304

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-28010iAHR20201304

45221SHAFT, STEERING INTERMEDIATE

main45221-28140iAHR20201304

45253ASPACER, ELECTRIC POWER STEERING MOTOR SHAFT

main45253-28130iAHR20201304

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iAHR20201304

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-28010iAHR20201304

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-28110iAHR20201304

45286COVER, STEERING COLUMN

main45286-28905-A0iAHR20201502

SHELL,TRIM0#

main45286-28906-A0iAHR20201304-201402

SHELL,TRIM0#

main45286-28908-A0iAHR20201403-201502

SHELL,TRIM0#

main45286-28909-A0iAHR20201402-201403

SHELL,TRIM0#

45832CABLE, TILT STEERING SUPPORT BOND

main45832-21010iAHR20201304

45897BOLT, STEERING LOCK SET

main45897-12020iAHR20201304

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iAHR20201304

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

80960MOTOR ASSY, POWER STEERING

main80960-28081iAHR20201304

9011908560

main90119-08560

9046706188

main90467-06188

91511B0825

main91511-B0825

9331915010

main93319-15010

9415180800

main94151-80800

19 parts on this diagram · 1 diagram in section
