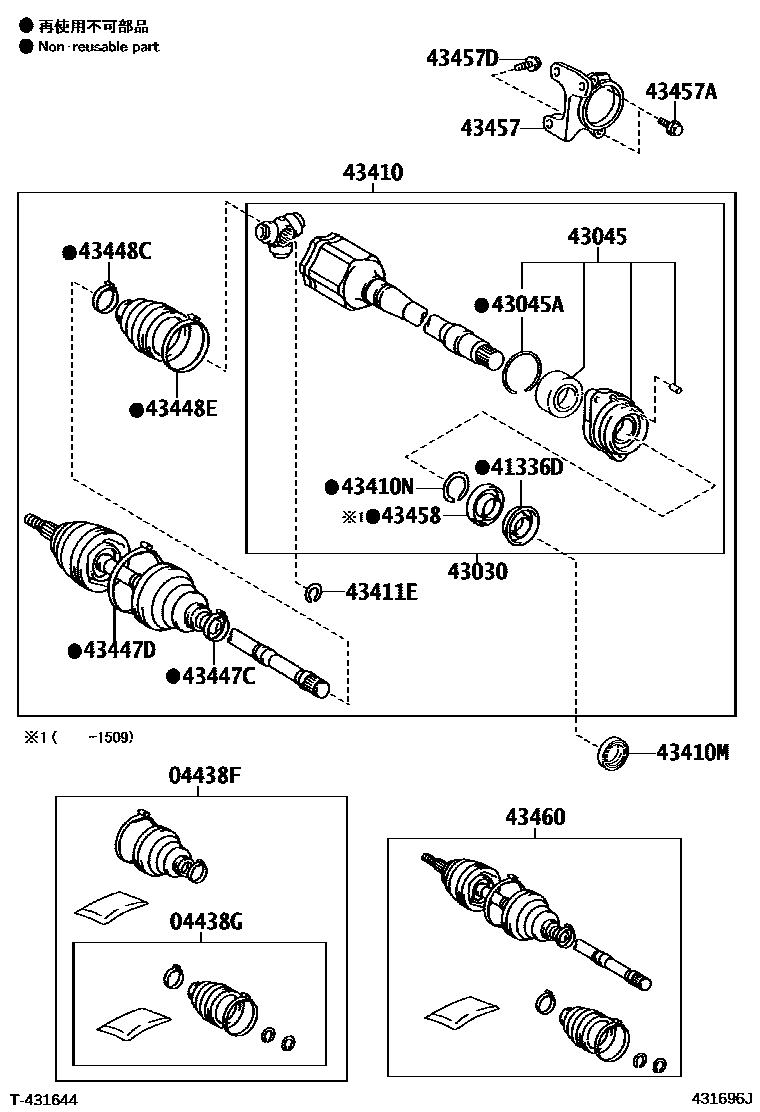

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-44050iAHR20201304

sub04427-44052

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-33040iAHR20201304

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iAHR20201304

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-42040iAHR20201304

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-64020iAHR20201304

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main90520-69002iAHR20201304

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-28120iAHR20201304

sub43410-28121

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40039iAHR20201304

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-38015iAHR20201304

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iAHR20201304

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42100iAHR20201304

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42090iAHR20201304

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-42010iAHR20201304

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iAHR20201304

43457BRACKET, DRIVE SHAFT BEARING

main43457-28040iAHR20201304

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361×2iAHR20201304

*10-1.25PX22-19.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iAHR20201304

43458COVER, FRONT DRIVE SHAFT DUST

main43458-12010iAHR20201304-201509

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-80126iAHR20201304

19 parts on this diagram · 2 diagrams in section
