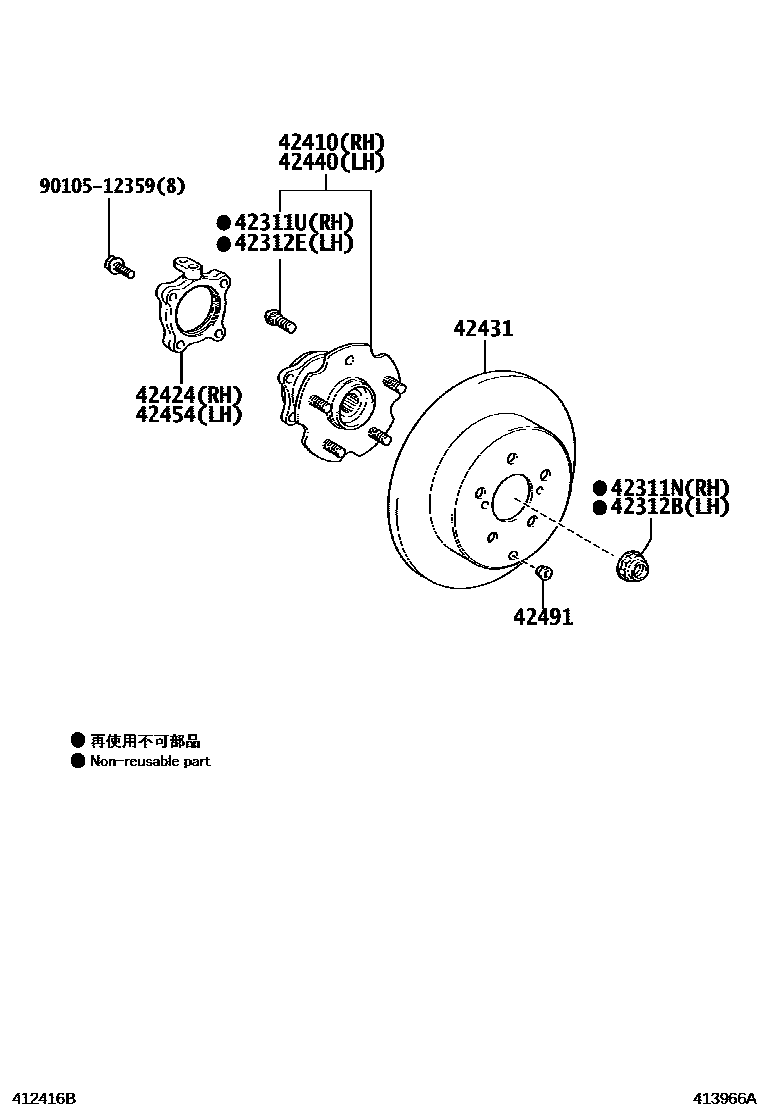

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-22001iAHR20201304

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iAHR20201304

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-22001iAHR20201304

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iAHR20201304

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-28030iAHR20201304

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-28050iAHR20201304

42431DISC, REAR

main42431-28130×2iAHR20201304

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-28030iAHR20201304

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42424-28050iAHR20201304

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iAHR20201304

9010512359

main90105-12359

11 parts on this diagram · 2 diagrams in section
