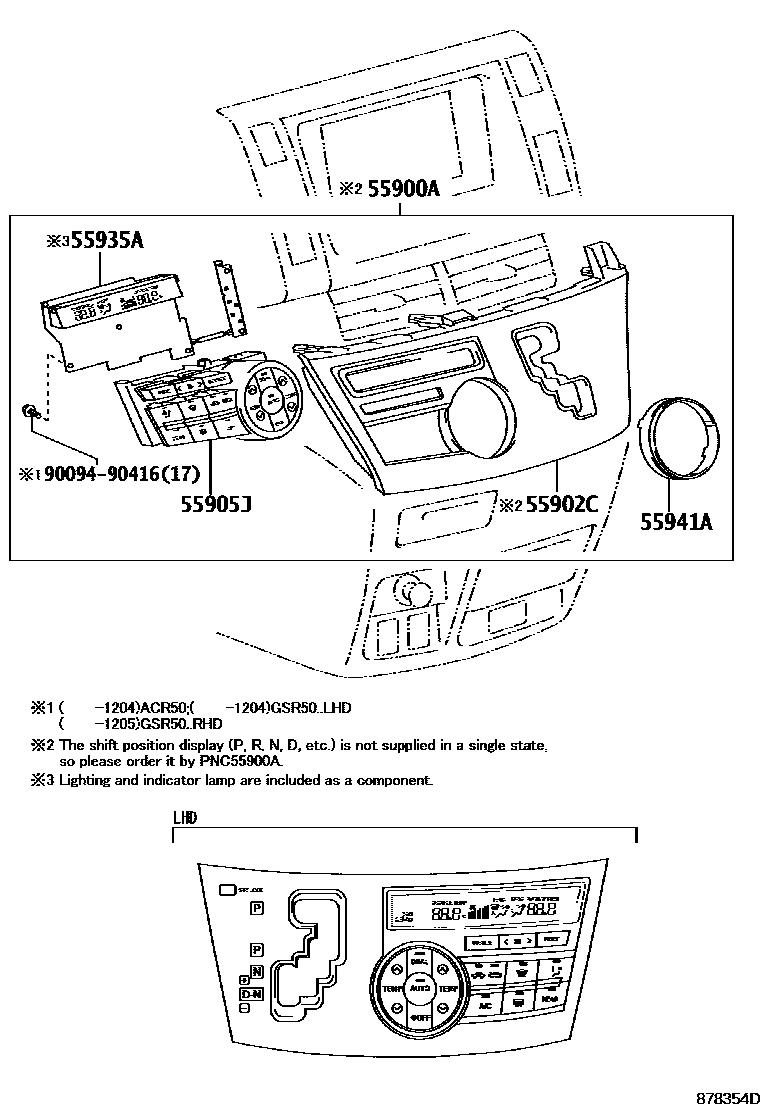

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT HEATER CONTROL 0003 1FRONT HEATER CONTROL 0004 1REAR HEATER CONTROL 0005 1FRONT AIR DUCT 0006 1FRONT AIR DUCT 0007 1REAR AIR DUCT 0008 1SENSOR

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-28A10iGSR50..ARL;ACR50..RHD..4FC..GEN201204-201409

main55900-28A11iACR50,GSR50..RHD..ATM..GL201409-201605

main55900-28A21iGSR50..DLX; GSR50..GL..ARL201409-201605

COLD AREA SPEC

main55900-28A30iACR50,GSR50..LHD..ATM201204-201409

main55900-28A31iACR50,GSR50..LHD..ATM201409-201605

main55900-28A40iGSR50..RHD..GEN201205-201409

main55900-28A50iACR50..RHD..GL; GSR50..ARL;ACR50..RHD..DLX200601-200706

BRUNEI SPEC; MALAYSIA SPEC; SINGAPORE SPEC

main55900-28A51iACR50..RHD..GL; GSR50..ARL;ACR50..RHD..DLX200706-200812

BRUNEI SPEC; MALAYSIA SPEC; SINGAPORE SPEC

main55900-28A52supersedes 55900-28B42iACR50..RHD..4FC..DLX..GEN; ACR50..RHD..4FC..GL200812-201204

BRUNEI SPEC; MALAYSIA SPEC; SINGAPORE SPEC

main55900-28A90iACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200601-200706

main55900-28A91iACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200706-200812

main55900-28A92iACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-201204

main55900-28B40iACR50,GSR50..RHD..GL..GEN200601-200706

main55900-28B41iACR50,GSR50..RHD..GL..GEN200706-200812

main55900-28B82iACR50..CVT..DLX201003-201204

main55900-28B92iACR50..CVT..GL201003-201204

main55900-28F70-C0iACR50..RHD..CVT..GL201605

BLACK,TRIM2#

main55900-2J710iACR50..RHD..07S..CVT201204-201409

main55900-2J711iACR50..RHD..07S..CVT201409-201605

main55900-28A20iGSR50..ARL201205-201409

COLD AREA SPEC

main55900-28A60iACR50,GSR50..ARL; ACR50..RHD..DLX..GEN200601-200706

COLD SPEC(BATTERY SIZE:80D26L); HONG KONG SPEC&COLD SPEC(BATTERY SIZE:80D26L)

main55900-28A61iACR50,GSR50..ARL; ACR50..RHD..DLX..GEN200706-200812

COLD SPEC(BATTERY SIZE:80D26L); HONG KONG SPEC&COLD SPEC(BATTERY SIZE:80D26L)

main55900-28A62iACR50..RHD..DLX..GEN200812-201003

HONG KONG SPEC&COLD AREA SPEC

main55900-28B30iACR50..RHD..GL200601-200706

HONG KONG SPEC&COLD SPEC(BATTERY SIZE:80D26L)

main55900-28B31iACR50..RHD..GL; GSR50..RHD..GEN200706-200812

COLD SPEC(BATTERY SIZE:80D26L); HONG KONG SPEC&COLD SPEC(BATTERY SIZE:80D26L)

main55900-28B32supersedes 55900-28B42iGSR50..RHD..GEN200812-201011

COLD AREA SPEC

main55900-28B50supersedes 55900-28B60iACR50,GSR50..LHD..GL..GEN200601-200706

WITHOUT(COLD AREA SPEC)

main55900-28B51supersedes 55900-28B61iACR50,GSR50..LHD..GL..GEN200706-200812

WITHOUT(COLD AREA SPEC)

main55900-28B52supersedes 55900-28B62iACR50,GSR50..LHD..GL..GEN200812-201204

WITHOUT(COLD AREA SPEC)

main55900-28D20iGSR50..LHD..GEN201204-201409

COLD AREA SPEC

main55900-28D21iGSR50..GEN201605-201709

COLD AREA SPEC

main55900-28D40supersedes 55900-28D30iACR50..LHD..CVT201204-201409

COLD AREA SPEC

main55900-28D41supersedes 55900-28D31iACR50..LHD..CVT201409-201605

COLD AREA SPEC

main55900-28F50-C0supersedes 55900-28F60-C0iACR50..DLX..GEN201605-201906

SINGAPORE SPEC,BLACK,TRIM2#

main55900-28F60-C0supersedes 55900-28F50-C0iACR50..ARL201605

COLD AREA SPEC,BLACK,TRIM2#

main55900-2J690supersedes 55900-2J700iACR50..DLX..GEN201204-201409

SINGAPORE SPEC

main55900-2J691supersedes 55900-2J701iACR50..ARL; ACR50..DLX..GEN201409-201605

SINGAPORE SPEC

main55900-2J700supersedes 55900-2J690iACR50..ARL201205-201409

COLD AREA SPEC

main55900-2J701supersedes 55900-2J691iACR50..ARL; ACR50..DLX..GEN201409-201605

COLD AREA SPEC

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-28440iACR50,GSR50..RHD..GL..GEN200601-200812

main55902-28441iGSR50..RHD..GEN200812-201205

main55902-28450iACR50,GSR50..LHD..GL..GEN200601-200812

main55902-28451iACR50,GSR50..LHD..GL..GEN200812-201204

main55902-28460iACR50..RHD..GL; GSR50..ARL;ACR50..RHD..DLX200601-200812

BRUNEI SPEC; MALAYSIA SPEC; SINGAPORE SPEC

main55902-28461iACR50..RHD..4FC..GL; ACR50..RHD..DLX..GEN200812-201204

BRUNEI SPEC; MALAYSIA SPEC; SINGAPORE SPEC

main55902-28470iACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200601-200812

main55902-28471iACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-201204

main55902-28500iGSR50..ARL;ACR50..CVT..DLX;ACR50..RHD..4FC..GEN201204-201409

main55902-28501iACR50..CVT..DLX;ACR50,GSR50..RHD..ATM201409-201605

main55902-28510iACR50,GSR50..LHD201204-201409

main55902-28511iACR50,GSR50..LHD201409-201605

main55902-28520iGSR50..RHD..GEN;ACR50..RHD..07S..CVT201204-201409

main55902-28521iACR50..RHD..07S..CVT201409-201605

main55902-28550iACR50,GSR50..RHD..ATM..GL201605

main55902-28560iGSR50..DLX; GSR50..GL..ARL201605

COLD AREA SPEC

main55902-28590iACR50..RHD..CVT..GL201605

main55902-28570supersedes 55902-28580iACR50..DLX..GEN201605-201906

SINGAPORE SPEC

main55902-28580supersedes 55902-28570iACR50..ARL201605

COLD AREA SPEC

55905JKNOB SUB-ASSY, CONTROL

main55905-28460iACR50,GSR50..RHD200601-200706

main55905-28461iACR50,GSR50..RHD200706-200812

main55905-28462iACR50..RHD..4FC..GEN200812-201204

main55905-28463iACR50..DLX..GEN; GSR50..GL..ARL;ACR50..CVT..ARL;ACR50..RHD..4FC..GEN201204-201605

SINGAPORE SPEC

main55905-28472supersedes 55905-28473iACR50..CVT201003-201204

main55905-28473supersedes 55905-28463iGSR50..DLX201409-201605

main55905-28480supersedes 55905-28490iACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50,GSR50..LHD..GL..GEN200601-200706

WITHOUT(COLD AREA SPEC)

main55905-28481supersedes 55905-28491iACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50,GSR50..LHD..GL..GEN200706-200812

WITHOUT(COLD AREA SPEC)

main55905-28482supersedes 55905-28492iACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50,GSR50..LHD..GL..GEN200812-201204

WITHOUT(COLD AREA SPEC)

main55905-28483iACR50,GSR50..LHD201204-201605

main55905-28470iACR50..ARL;GSR50..RHD; ACR50..RHD..GEN200601-200706

COLD SPEC(BATTERY SIZE:80D26L); HONG KONG SPEC&COLD SPEC(BATTERY SIZE:80D26L)

main55905-28471iACR50..ARL;GSR50..RHD; ACR50..RHD..GEN200706-200812

COLD SPEC(BATTERY SIZE:80D26L); HONG KONG SPEC&COLD SPEC(BATTERY SIZE:80D26L)

main55905-28493iACR50..LHD..CVT201605-201811

COLD AREA SPEC

55935ACIRCUIT, CENTER CLUSTER MODULE

main55935-28010supersedes 55935-28020iACR50..RHD..GL; GSR50..ARL;ACR50..RHD..DLX200601-200812

BRUNEI SPEC; MALAYSIA SPEC; SINGAPORE SPEC

main55935-28020iACR50,GSR50..RHD..GL..GEN200601-200812

main55935-28030supersedes 55935-28010iACR50..CVT..DLX201003-201204

main55935-28040supersedes 55935-28160iACR50..CVT..GL201003-201204

main55935-28050iACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200601-200812

main55935-28160iACR50..RHD..07S..CVT201204-201605

main55935-28210supersedes 55935-28220iACR50..DLX..GEN; GSR50..GL..ARL;ACR50..CVT..ARL;ACR50..RHD..4FC..GEN201204-201605

SINGAPORE SPEC

main55935-28220supersedes 55935-28210iGSR50..DLX201409-201605

main55935-28230iACR50,GSR50..LHD201204-201605

main55935-28060supersedes 55935-28070iACR50,GSR50..LHD..GL..GEN200812-201204

WITHOUT(COLD AREA SPEC)

main55935-28180iACR50..LHD..CVT;GSR50..LHD..GEN201204-201605

COLD AREA SPEC

55941AGUIDE, HEATER CONTROL

main55941-28020iGSR50..RHD..GEN201204-201409

main55941-28030iACR50,GSR50..LHD200812-201204

9009490416

main90094-90416

6 parts on this diagram · 7 diagrams in section
