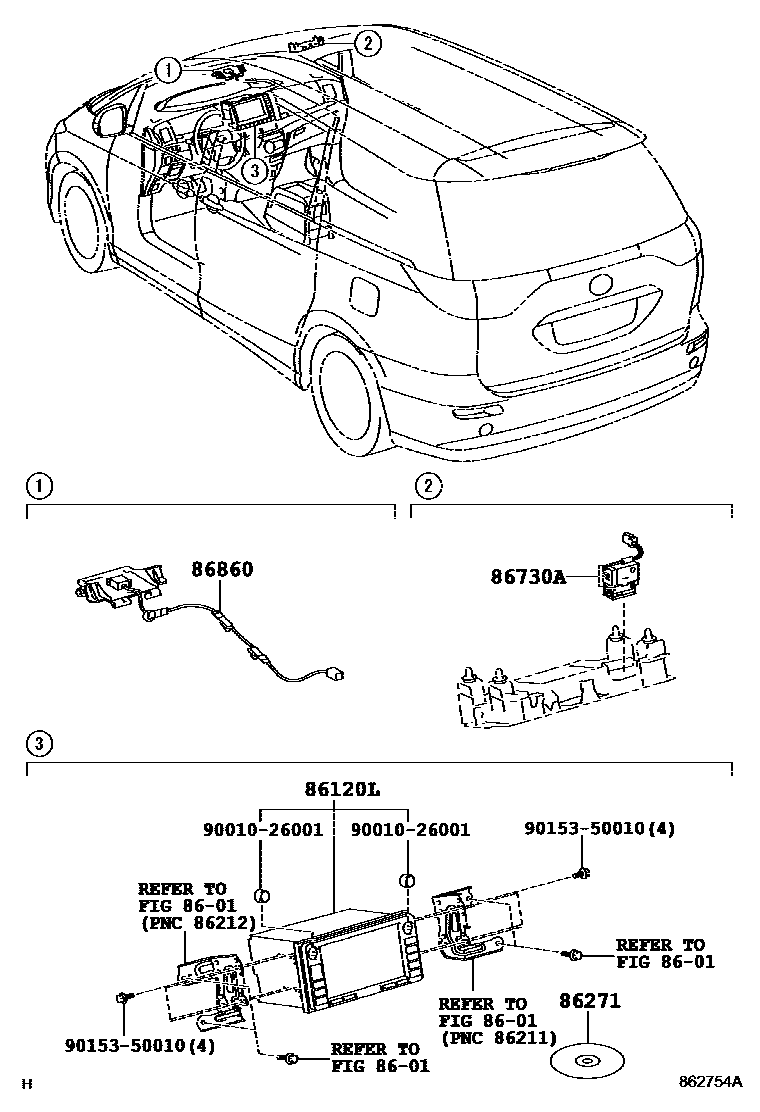

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0003 1

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86100-28140iACR50..LHD..CVT;GSR50..LHD..GEN201204-201208

DENSO,ID=E8047,AUDIO-AVN & 6SPEAKER(CHINA)

main86100-28141iACR50..LHD..CVT;GSR50..LHD..GEN201209-201309

DENSO,ID=E8047,AUDIO-AVN & 6SPEAKER(CHINA)

main86100-28142iACR50..LHD..CVT;GSR50..LHD..GEN201310-201404

DENSO,ID=E8047,AUDIO-AVN & 6SPEAKER(CHINA)

main86100-28143iACR50..LHD..CVT;GSR50..LHD..GEN201405-201409

DENSO,ID=E8047,AUDIO-AVN & 6SPEAKER(CHINA)

main86100-28144iGSR50..GEN;ACR50..LHD..CVT201410-201504

DENSO,ID=E8047,AUDIO-AVN & 6SPEAKER(CHINA)

main86100-28145iGSR50..GEN;ACR50..LHD..CVT201505-201509

DENSO,ID=E8047,AUDIO-AVN & 6SPEAKER(CHINA)

main86100-28146iGSR50..GEN;ACR50..LHD..CVT201510-201605

DENSO,ID=E8047,AUDIO-AVN & 6SPEAKER(CHINA)

main86100-28147iACR50..LHD..CVT201605-201811

DENSO,ID=E8047,AUDIO-AVN & 6SPEAKER(CHINA)

main86120-28540iACR50,GSR50..LHD..GL..GEN200812-201110

DENSO,ID=E8001,AUDIO-AVN 6SPEAKER (FOR CHINA)

main86120-28541iACR50,GSR50..LHD..GL..GEN201111-201204

DENSO,ID=E8001,AUDIO-AVN 6SPEAKER (FOR CHINA)

86271DISC, DISC PLAYER

main86807-0W021iACR50..LHD..GL..GEN200601-200607

MAP DISC(DOP)-WITH

main86807-0W022iACR50..LHD..GL..GEN200610-200708

MAP DISC(DOP)-WITH

main86807-0W023iACR50,GSR50..LHD..GL..GEN200708-200804

MAP DISC(DOP)-WITH

main86807-0W024iACR50,GSR50..LHD..GL..GEN200805-200812

MAP DISC(DOP)-WITH

main86807-0W025iACR50,GSR50..LHD..GL..GEN200905-200909

AUDIO-AVN 6SPEAKER (FOR CHINA)&MAP DISC(DOP)-WITH

main86807-0W026iACR50,GSR50..LHD..GL..GEN200910-201003

AUDIO-AVN 6SPEAKER (FOR CHINA)&MAP DISC(DOP)-WITH

main86807-0W027iACR50,GSR50..LHD..GL..GEN201004-201009

AUDIO-AVN 6SPEAKER (FOR CHINA)&MAP DISC(DOP)-WITH

main86807-0W028iACR50,GSR50..LHD..GL..GEN201010-201104

AUDIO-AVN 6SPEAKER (FOR CHINA)&MAP DISC(DOP)-WITH

main86807-0W029iACR50,GSR50..LHD..GL..GEN201105-201109

AUDIO-AVN 6SPEAKER (FOR CHINA)&MAP DISC(DOP)-WITH

main86807-0W190iACR50,GSR50..LHD..GL..GEN201110-201204

AUDIO-AVN 6SPEAKER (FOR CHINA)&MAP DISC(DOP)-WITH

86730AMICROPHONE ASSY, TELEPHONE

main86730-28030iACR50,GSR50..LHD..GL..GEN200601-200812

AUDIO-AVN 6SPEAKER (FOR CHINA)

main86730-28050iACR50..LHD..CVT;GSR50..LHD..GEN201204-201605

AUDIO-AVN & 6SPEAKER(CHINA)

86860ANTENNA ASSY, NAVIGATION

main86860-28160iACR50,GSR50..LHD..GL..GEN200601-200812

AUDIO-AVN 6SPEAKER (FOR CHINA)

9001026001

main90010-26001

9015350010

main90153-50010

7 parts on this diagram · 2 diagrams in section
