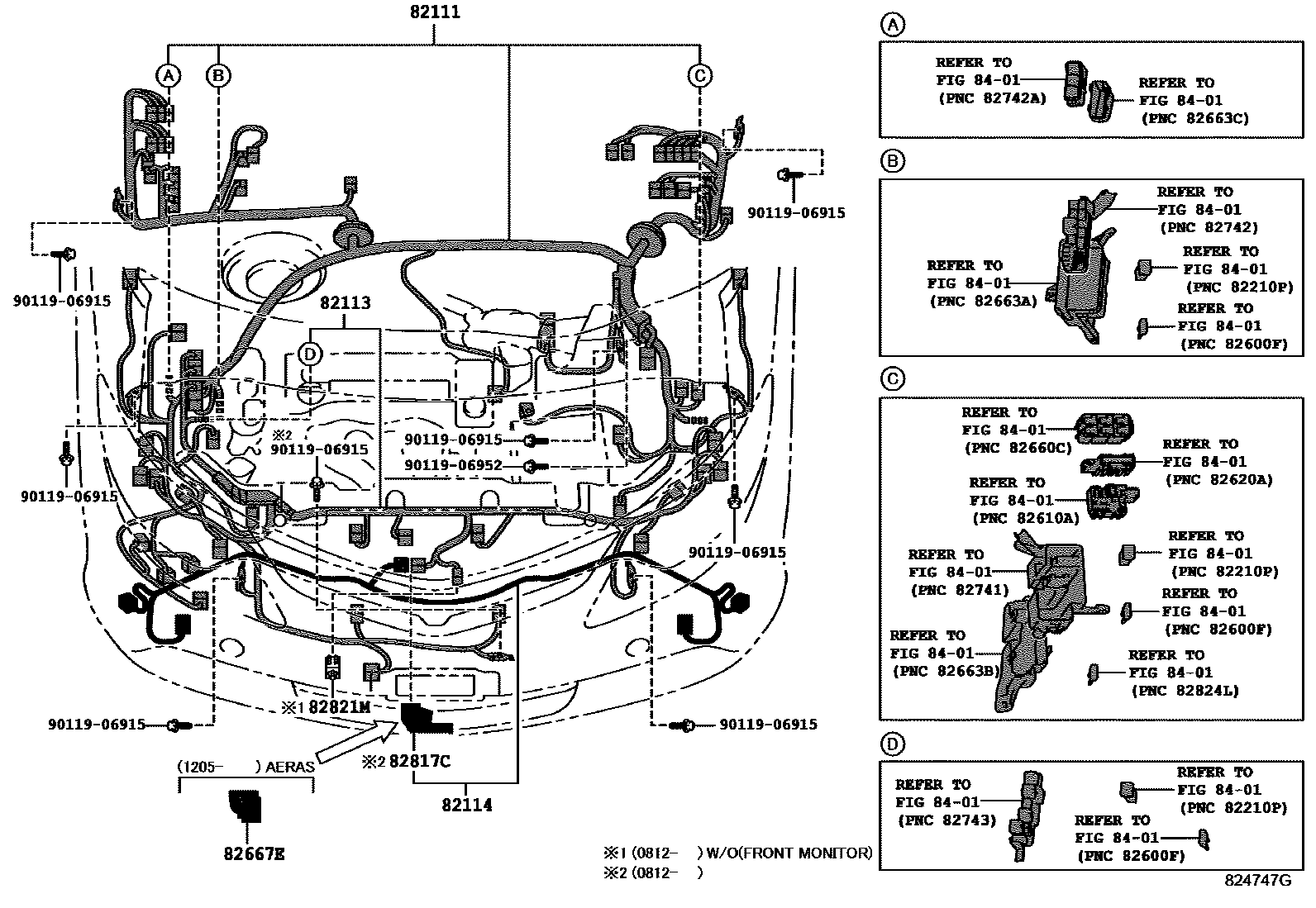

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
VSC-WITH
EL SALVADOR SPEC&VSC-WITHOUT; GUATEMALA SPEC&VSC-WITHOUT; HONDURAS SPEC&VSC-WITHOUT; JORDAN SPEC&VSC-WITHOUT; PHILIPPINES SPEC&VSC-WITHOUT; TAIWAN SPEC&VSC-WITHOUT; VSC-WITHOUT
EL SALVADOR SPEC&VSC-WITHOUT; GUATEMALA SPEC&VSC-WITHOUT; HONDURAS SPEC&VSC-WITHOUT; JORDAN SPEC&VSC-WITHOUT; PHILIPPINES SPEC&VSC-WITHOUT; TAIWAN SPEC&VSC-WITHOUT; VENEZUELA SPEC&VSC-WITHOUT; VSC-WITHOUT
JORDAN SPEC&VSC-WITHOUT; TAIWAN SPEC&VSC-WITHOUT
JORDAN SPEC&VSC-WITHOUT; TAIWAN SPEC&VSC-WITHOUT
SLIDE DOOR-*ECS(RH,LH) & *POSD(LH)&HEADLAMP-DISCHARGE & AFS
VSC-WITH
COLD AREA SPEC
COLD AREA SPEC
COLD SPEC(BATTERY SIZE:80D26L); HONG KONG SPEC
COLD SPEC(BATTERY SIZE:80D26L); HONG KONG SPEC
VSC-WITH
VSC-WITH
VSC-WITH
COLD SPEC(BATTERY SIZE:80D26L)&VSC-WITH; HONG KONG SPEC&VSC-WITH
COLD SPEC(BATTERY SIZE:80D26L)&VSC-WITH; HONG KONG SPEC&VSC-WITH
COLD AREA SPEC&VSC-WITH
COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC
COLD SPEC(BATTERY SIZE:80D26L); HONG KONG SPEC
COLD SPEC(BATTERY SIZE:80D26L); HONG KONG SPEC
VSC-WITH
VSC-WITH
COLD SPEC(BATTERY SIZE:80D26L)&VSC-WITH; HONG KONG SPEC&VSC-WITH
COLD SPEC(BATTERY SIZE:80D26L)&VSC-WITH; HONG KONG SPEC&VSC-WITH
COLD AREA SPEC
COLD AREA SPEC
main82111-28J02supersedes 82111-28K12iACR50..GCC;ACR50..LHD..DLX..GEN; ACR50..LHD..GL..GEN200812-201204
WITHOUT(COLD AREA SPEC)&VSC-WITHOUT&HEADLAMP-HALOGEN
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&VSC-WITHOUT&HEAD LAMP-DISCHARGE + AFS; EL SALVADOR SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&VSC-WITHOUT&HEAD LAMP-DISCHARGE + AFS; GUATEMALA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&VSC-WITHOUT&HEAD LAMP-DISCHARGE + AFS; HEAD LAMP-DISCHARGE + AFS; HONDURAS SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&VSC-WITHOUT&HEAD LAMP-DISCHARGE + AFS; JORDAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&VSC-WITHOUT&HEAD LAMP-DISCHARGE+ AFS; PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&VSC-WITHOUT&HEAD LAMP-DISCHARGE + AFS
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&VSC-WITHOUT&HEAD LAMP-DISCHARGE + AFS; EL SALVADOR SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&VSC-WITHOUT&HEAD LAMP-DISCHARGE + AFS; GUATEMALA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&VSC-WITHOUT&HEAD LAMP-DISCHARGE + AFS; HEAD LAMP-DISCHARGE + AFS; HONDURAS SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&VSC-WITHOUT&HEAD LAMP-DISCHARGE + AFS; JORDAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&VSC-WITHOUT&HEAD LAMP-DISCHARGE+ AFS; PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&VSC-WITHOUT&HEAD LAMP-DISCHARGE + AFS; TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&VSC-WITHOUT&HEAD LAMP-DISCHARGE+ AFS; VENEZUELA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&VSC-WITHOUT&HEAD LAMP-DISCHARGE + AFS
HEADLAMP-DISCHARGE & AFS; WITHOUT(COLD AREA SPEC)&VSC-WITHOUT
main82111-28J20supersedes 82111-28K12iACR50..GCC;ACR50..LHD..DLX..GEN; ACR50..LHD..GL..GEN200601-200804
EL SALVADOR SPEC; GUATEMALA SPEC; HONDURAS SPEC; JORDAN SPEC; PHILIPPINES SPEC; TAIWAN SPEC; VSC-WITH
main82111-28J21supersedes 82111-28K12iACR50..GCC;ACR50..LHD..DLX..GEN; ACR50..LHD..GL..GEN200804-200812
EL SALVADOR SPEC; GUATEMALA SPEC; HONDURAS SPEC; JORDAN SPEC; PHILIPPINES SPEC; TAIWAN SPEC; VENEZUELA SPEC; VSC-WITH
main82111-28J22supersedes 82111-28K12iACR50..GCC;ACR50..LHD..DLX..GEN; ACR50..LHD..GL..GEN200812-201204
VSC-WITH; WITHOUT(COLD AREA SPEC)&HEADLAMP-HALOGEN
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS
COLD AREA SPEC&VSC-WITH&HEADLAMP-DISCHARGE & AFS&CLEARANCE SONAR-WITH
COLD AREA SPEC&VSC-WITH&HEADLAMP-DISCHARGE & AFS
COLD AREA SPEC&HEADLAMP-DISCHARGE & AFS
COLD AREA SPEC&HEADLAMP-DISCHARGE & AFS
HEAD LAMP-DISCHARGE + AFS; JORDAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&VSC-WITHOUT&HEAD LAMP-DISCHARGE+ AFS
HEAD LAMP-DISCHARGE + AFS; JORDAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&VSC-WITHOUT&HEAD LAMP-DISCHARGE+ AFS; TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&VSC-WITHOUT&HEAD LAMP-DISCHARGE+ AFS
JORDAN SPEC; TAIWAN SPEC; VSC-WITH
JORDAN SPEC; TAIWAN SPEC; VSC-WITH
JORDAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; VSC-WITH&HEAD LAMP-DISCHARGE + AFS
JORDAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; VSC-WITH&HEAD LAMP-DISCHARGE + AFS
WITHOUT(COLD AREA SPEC)
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS
COLD AREA SPEC&CLEARANCE SONAR-WITH
COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; EL SALVADOR SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; GUATEMALA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; HONDURAS SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; JORDAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; VSC-WITH&HEAD LAMP-DISCHARGE + AFS
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; EL SALVADOR SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; GUATEMALA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; HONDURAS SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; JORDAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; VENEZUELA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&HEAD LAMP-DISCHARGE + AFS; VSC-WITH&HEAD LAMP-DISCHARGE + AFS
VSC-WITH&HEADLAMP-DISCHARGE & AFS; WITHOUT(COLD AREA SPEC)
VSC-WITH
VSC-WITH
COLD AREA SPEC; COLD AREA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(LH)&HEADLAMP-DISCHARGE & AFS
COLD AREA SPEC
82113WIRE, ENGINE ROOM, NO.3
main82113-28092iACR50..GL..GCC; ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN; ACR50..LHD..CVT201204-201304
HEADLAMP-DISCHARGE & AFS; SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)
main82113-28093iACR50..GL..GCC; ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN; ACR50..LHD..CVT201304-201508
HEADLAMP-DISCHARGE & AFS; SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)
main82113-28101supersedes 82113-28091iACR50..GCC;ACR50..RHD..GEN;ACR50..LHD..DLX..GEN; ACR50..LHD..GL..GEN200812-201204
HEADLAMP-HALOGEN
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)
HEAD LAMP-DISCHARGE + AFS
HEADLAMP-DISCHARGE & AFS
main82113-28094iACR50..GL..GCC; ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN; ACR50..LHD..CVT201509-201605
HEADLAMP-DISCHARGE & AFS; SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)
TOWING PACKAGE-WITH
TOWING PACKAGE-WITH
TOWING PACKAGE-WITH
TOWING PACKAGE-WITH
TOWING PACKAGE-WITH
HEAD LAMP-DISCHARGE + AFS
HEADLAMP-DISCHARGE & AFS
TOWING PACKAGE-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(LH)
CLEARANCE & BACK SONAR-WITH
main82113-28530iACR50..GL..GCC; ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN; ACR50..LHD..CVT201605
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)& W(*PBD); HEADLAMP-DISCHARGE & AFS
82114WIRE, ENGINE ROOM, NO.4
CLEARANCE SONAR-WITHOUT
main82114-28140supersedes 82114-28130iACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200601-200812
CLEARANCE SONAR-WITH(CLEARANCE & BACK SONAR)
CLEARANCE SONAR-WITH
main82114-28143iGSR50..GEN;ACR50..LHD..CVT; GSR50..GL..ARL;ACR50..LHD..4FC;ACR50..RHD..(DLX,GL)201605
CLEARANCE & BACK SONAR-WITH
CLEARANCE SONAR-WITH
CLEARANCE & BACK SONAR-WITH
82667EHOLDER, CONNECTOR, NO.20
82817CPROTECTOR, WIRING HARNESS, NO.4
82821MCOVER, CONNECTOR
8401SWITCH & RELAY & COMPUTER
9011906915
main90119-06915
9011906952
main90119-06952
9 parts on this diagram · 19 diagrams in section
