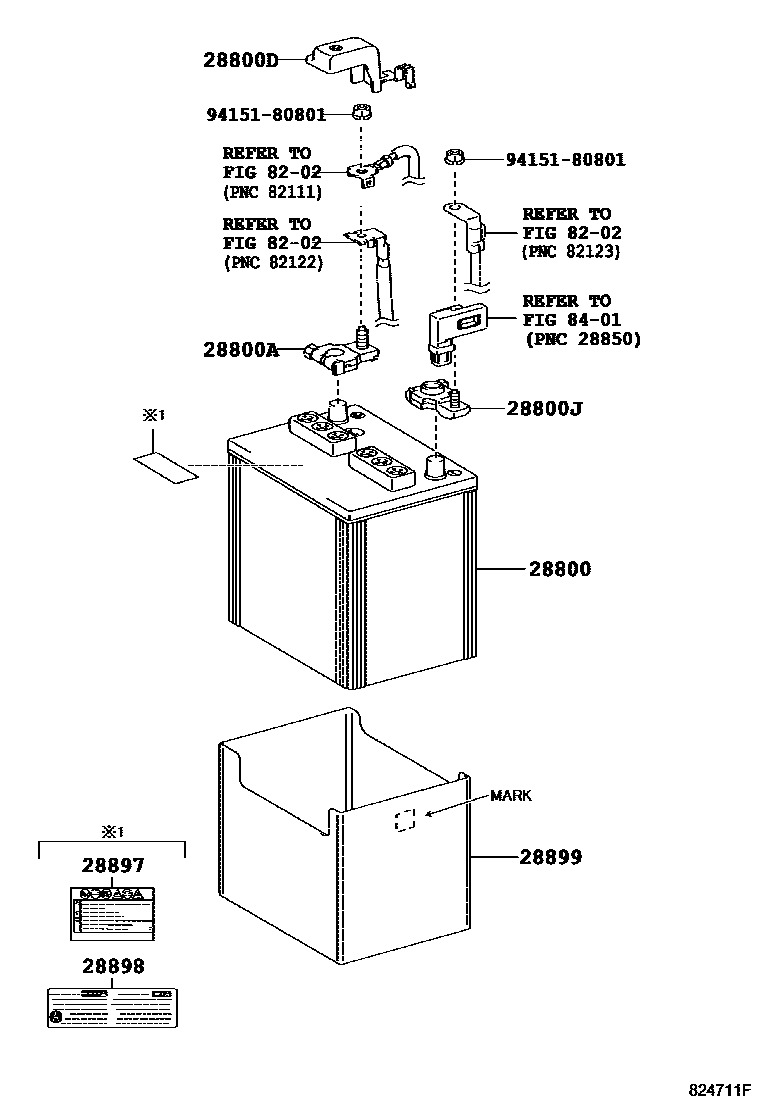

BATTERY & BATTERY CABLE
28800BATTERY
main28800-17121supersedes 28800-42061i2AZFE,2GRFE..ACR50,GSR50..GL..GCC; 2AZFE,2GRFE..ACR50,GSR50..LHD..GL..GEN; 2AZFE..ACR50..LHD..GL..GEN; 2AZFE..ACR50..RHD..GL;2AZFE,2GRFE..ACR50,GSR50..GL..GCC; 2GRFE..GSR50..ARL; 2GRFE..GSR50..LHD..GEN200812-201204
80D26L,ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,FURUKAWA; 80D26L,COLD AREA SPEC,FURUKAWA; 80D26L,EL SALVADOR SPEC&SIDE LIFT-UP SEAT,FURUKAWA; 80D26L,FURUKAWA; 80D26L,GUATEMALA SPEC&SIDE LIFT-UP SEAT,FURUKAWA; 80D26L,HONDURAS SPEC&SIDE LIFT-UP SEAT,FURUKAWA; 80D26L,JORDAN SPEC&SIDE LIFT-UP SEAT,FURUKAWA; 80D26L,PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,FURUKAWA; 80D26L,PHILIPPINES SPEC&SIDE LIFT-UP SEAT&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,FURUKAWA; 80D26L,PHILIPPINES SPEC&SIDE LIFT-UP SEAT,FURUKAWA; 80D26L,SIDE LIFT-UP SEAT&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,FURUKAWA; 80D26L,SIDE LIFT-UP SEAT&WITHOUT(COLD AREA SPEC)&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,FURUKAWA; 80D26L,SIDE LIFT-UP SEAT&WITHOUT(COLD AREA SPEC),FURUKAWA; 80D26L,SIDE LIFT-UP SEAT,FURUKAWA; 80D26L,TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,FURUKAWA; 80D26L,TAIWAN SPEC&SIDE LIFT-UP SEAT&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,FURUKAWA; 80D26L,TAIWAN SPEC&SIDE LIFT-UP SEAT,FURUKAWA; 80D26L,VENEZUELA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,FURUKAWA; 80D26L,WITHOUT(COLD AREA SPEC)&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,FURUKAWA
80D26L,COLD AREA SPEC,PANASONIC; 80D26L,PANASONIC
main28800-31260i2AZFE..ACR50..LHD..DLX..GEN;2AZFE,2GRFE..ACR50,GSR50..GCC;2AZFE,2GRFE..ACR50,GSR50..RHD; 2AZFE..ACR50..LHD..GL..GEN200601-200812
55D23L; 55D23L,EL SALVADOR SPEC; 55D23L,GUATEMALA SPEC; 55D23L,HONDURAS SPEC; 55D23L,JORDAN SPEC; 55D23L,PHILIPPINES SPEC; 55D23L,TAIWAN SPEC
main28800-38080i2AZFE..ACR50..ARL;2GRFE..GSR50..GL..ARL; 2AZFE..ACR50..RHD..GL;2AZFE..ACR50..LHD..4FC; 2GRFE..GSR50..DLX201605-201910
80D26L,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM),PANASONIC; 80D26L,COLD AREA SPEC,PANASONIC; 80D26L,PANASONIC
55D23L,YUASA
main28800-42042i2AZFE..ACR50..LHD..DLX..GEN;2AZFE,2GRFE..ACR50,GSR50..GCC;2AZFE,2GRFE..ACR50,GSR50..RHD; 2AZFE..ACR50..LHD..GL..GEN200601-200709
55D23L,EL SALVADOR SPEC,YUASA; 55D23L,GUATEMALA SPEC,YUASA; 55D23L,HONDURAS SPEC,YUASA; 55D23L,JORDAN SPEC,YUASA; 55D23L,PHILIPPINES SPEC,YUASA; 55D23L,TAIWAN SPEC,YUASA; 55D23L,YUASA
main28800-42061i2AZFE..ACR50..LHD..GL..GEN; 2AZFE..ACR50..RHD;2AZFE..ACR50..GCC;2GRFE..GSR50..ARL,GCC;2AZFE..ACR50..LHD..DLX..GEN; 2GRFE..GSR50..LHD..GEN200812-201204
55D23L,EL SALVADOR SPEC,FURUKAWA; 55D23L,FURUKAWA; 55D23L,GUATEMALA SPEC,FURUKAWA; 55D23L,HONDURAS SPEC,FURUKAWA; 55D23L,JORDAN SPEC,FURUKAWA; 55D23L,PHILIPPINES SPEC,FURUKAWA; 55D23L,TAIWAN SPEC,FURUKAWA; 55D23L,VENEZUELA SPEC,FURUKAWA; 55D23L,WITHOUT(COLD AREA SPEC),FURUKAWA
55D23L,FURUKAWA
S-85
main28800-54020i2AZFE,2GRFE..ACR50,GSR50..GL..GCC; 2AZFE,2GRFE..ACR50,GSR50..GL..GCC;2AZFE,2GRFE..ACR50,GSR50..RHD..GL..GEN; 2AZFE,2GRFE..ACR50,GSR50..LHD..GL..GEN; 2AZFE..ACR50..LHD..GL..GEN; 2GRFE..GSR50..ARL; 2GRFE..GSR50..LHD..GEN; 2GRFE..GSR50..RHD..GEN200705-200811
80D26L,ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,COLD SPEC(BATTERY SIZE:80D26L),YUASA; 80D26L,EL SALVADOR SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,EL SALVADOR SPEC&SIDE LIFT-UP SEAT (OVERSEAS)&ANTI-THEFT SYSTEM-IMMOBILIZER& ALARM,YUASA; 80D26L,EL SALVADOR SPEC&SIDE LIFT-UP SEAT (OVERSEAS),YUASA; 80D26L,GUATEMALA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,GUATEMALA SPEC&SIDE LIFT-UP SEAT (OVERSEAS)&ANTI-THEFT SYSTEM-IMMOBILIZER &ALARM,YUASA; 80D26L,GUATEMALA SPEC&SIDE LIFT-UP SEAT (OVERSEAS),YUASA; 80D26L,HONDURAS SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,HONDURAS SPEC&SIDE LIFT-UP SEAT (OVERSEAS)&ANTI-THEFT SYSTEM-IMMOBILIZER &ALARM,YUASA; 80D26L,HONDURAS SPEC&SIDE LIFT-UP SEAT (OVERSEAS),YUASA; 80D26L,HONG KONG SPEC&COLD SPEC(BATTERY SIZE:80D26L),YUASA; 80D26L,HONG KONG SPEC&SIDE LIFT-UP SEAT (OVERSEAS)&COLD SPEC(BATTERY SIZE:80D26L),YUASA; 80D26L,JORDAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,JORDAN SPEC&SIDE LIFT-UP SEAT (OVERSEAS)&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,JORDAN SPEC&SIDE LIFT-UP SEAT (OVERSEAS)&WITHOUT(COLD AREA SPEC)&ANTI-THEFTSYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,JORDAN SPEC&SIDE LIFT-UP SEAT (OVERSEAS)&WITHOUT(COLD AREA SPEC),YUASA; 80D26L,JORDAN SPEC&SIDE LIFT-UP SEAT (OVERSEAS),YUASA; 80D26L,JORDAN SPEC&WITHOUT(COLD AREA SPEC)&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,PHILIPPINES SPEC&SIDE LIFT-UP SEAT (OVERSEAS)&ANTI-THEFT SYSTEM-IMMOBILIZER& ALARM,YUASA; 80D26L,PHILIPPINES SPEC&SIDE LIFT-UP SEAT (OVERSEAS),YUASA; 80D26L,SIDE LIFT-UP SEAT (OVERSEAS)&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,SIDE LIFT-UP SEAT (OVERSEAS),YUASA; 80D26L,TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,TAIWAN SPEC&SIDE LIFT-UP SEAT (OVERSEAS)&WITHOUT(COLD AREA SPEC),YUASA; 80D26L,TAIWAN SPEC&SIDE LIFT-UP SEAT (OVERSEAS),YUASA; 80D26L,TAIWAN SPEC&WITHOUT(COLD AREA SPEC)&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,VENEZUELA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,YUASA
main28800-64132i2AZFE,2GRFE..ACR50,GSR50..GL..GCC; 2AZFE,2GRFE..ACR50,GSR50..LHD..GL..GEN; 2AZFE..ACR50..LHD..GL..GEN200601-200705
80D26L,ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,EL SALVADOR SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,GUATEMALA SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,HONDURAS SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,JORDAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,PHILIPPINES SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,YUASA; 80D26L,TAIWAN SPEC&SIDE LIFT-UP SEAT (OVERSEAS),YUASA; 80D26L,YUASA
28800ATERMINAL, BATTERY POSITIVE
28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)
28800JTERMINAL, BATTERY NEGATIVE
28897PLATE, BATTERY CAUTION
BEIJING SPEC; CHINA SPEC
28898PLATE, BATTERY
28899INSULATOR, BATTERY
main28899-28040i2AZFE..ACR50..LHD..DLX..GEN;2AZFE,2GRFE..ACR50,GSR50..GCC;2AZFE,2GRFE..ACR50,GSR50..RHD; 2AZFE..ACR50..LHD..GL..GEN200601-200812
EL SALVADOR SPEC,MARK=1; GUATEMALA SPEC,MARK=1; HONDURAS SPEC,MARK=1; JORDAN SPEC,MARK=1; MARK=1; PHILIPPINES SPEC,MARK=1; TAIWAN SPEC,MARK=1
main28899-28070supersedes 28899-31140i2AZFE,2GRFE..ACR50,GSR50..GL..GCC; 2AZFE,2GRFE..ACR50,GSR50..LHD..GL..GEN; 2AZFE..ACR50..LHD..GL..GEN200601-200812
#, MARK=2; ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,#, MARK=2; TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,#, MARK=2
main28899-31140i2AZFE..ACR50..ARL;2GRFE..GSR50..GL..ARL; 2AZFE..ACR50..RHD..GL;2AZFE..ACR50..LHD..4FC; 2GRFE..GSR50..DLX;2AZFE..ACR50..DLX..GEN201605
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM); COLD AREA SPEC
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
9415180801
main94151-80801
10 parts on this diagram · 1 diagram in section
