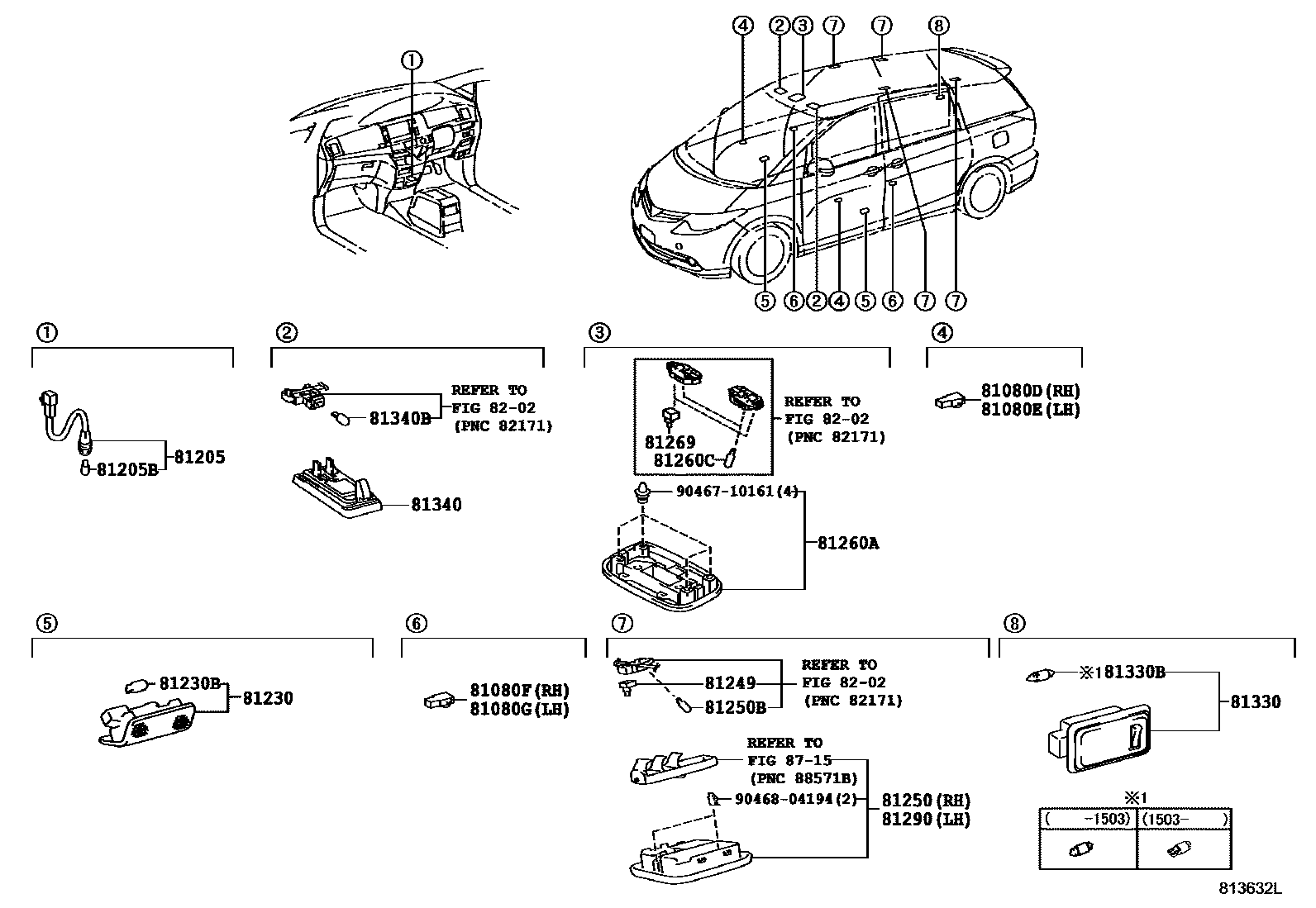

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81205LAMP SUB-ASSY, ASH RECEPTACLE
81205BBULB, ASH RECEPTACLE LAMP
14V 1.4W
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81249SWITCH, ROOM LAMP
81250LAMP ASSY, ROOM, NO.2
SHELL,TRIM0#
LT.GRAY,TRIM1#
GREGE,TRIM4#
SHELL,TRIM0#
LT.GRAY,TRIM2#
BLACK,TRIM2#
81250BBULB, ROOM LAMP, NO.2
12V 5W
81260ALAMP ASSY, MAP
main81260-28020-A0iACR50..GCC;ACR50..LHD..CVT; ACR50..GL..GCC; ACR50..LHD..CVT; GSR50..GL;ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)..GEN201204-201409
HEADLAMP-DISCHARGE & AFS,SHELL,TRIM0#; MOON ROOF-WITH&HEADLAMP-DISCHARGE & AFS,SHELL,TRIM0#; MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD),SHELL,TRIM0#; MOON ROOF-WITH,SHELL,TRIM0#; SHELL,TRIM0#; SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD),SHELL,TRIM0#
main81260-28020-B0supersedes 81260-28100-B0iACR50..LHD..CVT; GSR50..LHD..GEN;ACR50..(AERAS,DLX)..GEN201204-201409
HEADLAMP-DISCHARGE & AFS,LT.GRAY,TRIM2#; LT.GRAY,TRIM2#; MOON ROOF-WITH&HEADLAMP-DISCHARGE & AFS,LT.GRAY,TRIM2#; MOON ROOF-WITH,LT.GRAY,TRIM2#
main81260-28020-E0supersedes 81260-28100-E0iACR50..CVT..GL;ACR50..GL..GCC; ACR50..GCC;ACR50..RHD..GL; GSR50..LHD;ACR50..LHD..GEN200812-201204
GREGE,TRIM4#; MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD),GREGE,TRIM4#; MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH),GREGE,TRIM4#; MOON ROOF-WITH,GREGE,TRIM4#; SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD),GREGE,TRIM4#; SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH),GREGE,TRIM4#
main81260-28021-A0iACR50..GCC; ACR50..GL..GCC; ACR50..LHD..CVT; GSR50..GL;ACR50..RHD..GL;ACR50..LHD..4FC..GEN201409-201605
HEADLAMP-DISCHARGE & AFS,SHELL,TRIM0#; MOON ROOF-WITH&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD),SHELL,TRIM0#; MOON ROOF-WITH,SHELL,TRIM0#; SHELL,TRIM0#; SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD),SHELL,TRIM0#
HEADLAMP-DISCHARGE & AFS,LT.GRAY,TRIM2#; LT.GRAY,TRIM2#
BLACK,TRIM2#
SHELL,TRIM0#
LT.GRAY,TRIM2#
GREGE,TRIM4#; SLIDE DOOR-*ECS(RH,LH),GREGE,TRIM4#
SHELL,TRIM0#
LT.GRAY,TRIM2#
BLACK,TRIM2#
81260CBULB(FOR MAP LAMP)
12V 5W
81269SWITCH, MAP LAMP
81290LAMP ASSY, ROOM, NO.3
SHELL,TRIM0#
LT.GRAY,TRIM1#
GREGE,TRIM4#
SHELL,TRIM0#
LT.GRAY,TRIM2#
BLACK,TRIM2#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
12V 5W
81340LAMP ASSY, VANITY
LT.GRAY,TRIM1#
GREGE,TRIM4#
81340BBULB (FOR VANITY LAMP)
12V 8W
8202WIRING & CLAMP
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9046710161
main90467-10161
9046804194
main90468-04194
23 parts on this diagram · 1 diagram in section
