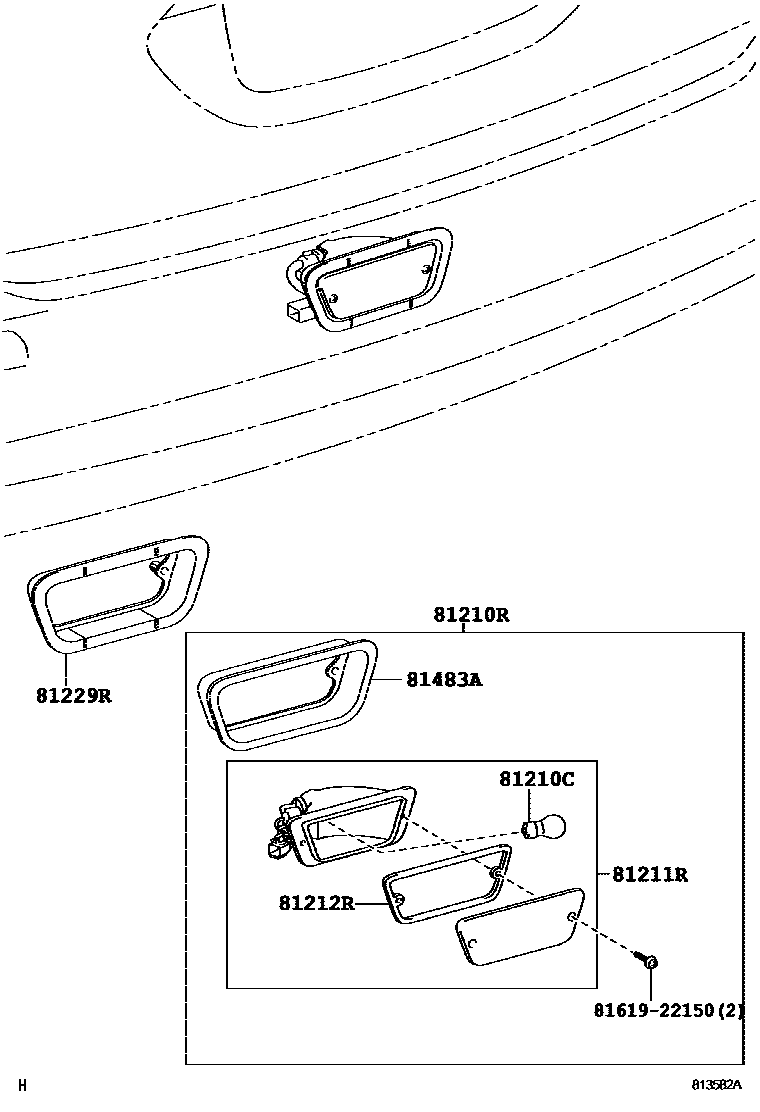

REAR FOG LAMP

81210CBULB, REAR FOG LAMP

main99132-11210iACR50,GSR50..LHD..GL..GEN; ACR50..LHD..DLX..GEN200812-201204

12V 21W; 12V 21W,TAIWAN SPEC

81210RLAMP ASSY, REAR FOG

main81480-28030-A0iGSR50..LHD..GEN200601-200612

SUPER WHITE 2,040

main81480-28030-A1iACR50..LHD..GL..GEN200601-200611

WHITE PEARL CS.,070

main81480-28030-B0iACR50..LHD..GL..GEN200601-200611

SILVER ME.,1F7

main81480-28030-B1iACR50..LHD..GL..GEN200601-200611

MEDIUM SILVER ME.,1F8

main81480-28030-C0iACR50..LHD..GL..GEN200601-200611

BLACK,202

main81480-28030-D0iGSR50..LHD..GEN200601-200612

DK. RED M.M.,3Q3

main81480-28030-F0iACR50..LHD..GL..GEN200601-200611

SILKY GOLD M.M.,5A4

main81480-28030-J0iACR50..LHD..GL..GEN200601-200611

DK.BLUE MC.,8S6

main81480-28030-J1iACR50..LHD..GL..GEN200601-200611

LT.BLUE M.M.,8S7

main81480-28031-A0iACR50,GSR50..LHD..GL..GEN; ACR50..LHD..DLX..GEN200812-201204

SUPER WHITE 2,040; TAIWAN SPEC,SUPER WHITE 2,040

main81480-28031-A1iACR50,GSR50..LHD..GL..GEN; ACR50..LHD..DLX..GEN200812-201204

TAIWAN SPEC,WHITE PEARL CS.,070; WHITE PEARL CS.,070

main81480-28031-B0iACR50..LHD..CVT;GSR50..LHD..GEN201204-201605

SILVER ME.,1F7

main81480-28031-B1iACR50,GSR50..LHD..GL..GEN200612-200812

MEDIUM SILVER ME.,1F8

main81480-28031-B3iGSR50..GEN;ACR50..GCC;ACR50..LHD..CVT201605

ICE TITANIUM M.M.,1H4

main81480-28031-C0iACR50,GSR50..LHD..GL..GEN; ACR50..LHD..DLX..GEN200812-201204

BLACK,202; TAIWAN SPEC,BLACK,202

main81480-28031-D0iACR50,GSR50..LHD..GL..GEN; ACR50..LHD..DLX..GEN200812-201204

DK. RED M.M.,3Q3; TAIWAN SPEC,DK. RED M.M.,3Q3

main81480-28031-D1iACR50..LHD..CVT;GSR50..LHD..GEN201204-201605

DEEP RED M.M.,3R9

main81480-28031-D2iGSR50..GEN;ACR50..GCC;ACR50..LHD..CVT201605

RED M.M.,3R3

main81480-28031-E0iGSR50..GEN;ACR50..GCC;ACR50..LHD..CVT201605

DARK SHERRY M.M.,4W4

main81480-28031-F0iACR50,GSR50..LHD..GL..GEN200612-200812

SILKY GOLD M.M.,5A4

main81480-28031-J0iACR50,GSR50..LHD..GL..GEN; ACR50..LHD..DLX..GEN200812-201204

DK.BLUE MC.,8S6; TAIWAN SPEC,DK.BLUE MC.,8S6

main81480-28031-J1iACR50,GSR50..LHD..GL..GEN200612-200812

LT.BLUE M.M.,8S7

main81480-28031-K0iACR50,GSR50..LHD..GL..GEN; ACR50..LHD..DLX..GEN200812-201204

LT.PURPLE M.M.,9AE; TAIWAN SPEC,LT.PURPLE M.M.,9AE

81211RLENS, REAR FOG LAMP

main81457-28030iACR50..LHD..GL..GEN200601-200611

main81457-28031iACR50,GSR50..LHD..GL..GEN200612-200812

81212RGASKET, REAR FOG LAMP, NO.1

main81458-28030iACR50,GSR50..LHD..GL..GEN200601-200812

81229RBRACKET, REAR FOG LAMP

main81481-28110iACR50,GSR50..LHD..GL..GEN; ACR50..LHD..DLX..GEN200812-201204

TAIWAN SPEC

81483APROTECTOR, FOG LAMP

main81483-28030-A0iGSR50..GEN;ACR50..GCC;ACR50..LHD..CVT201605

SUPER WHITE 2,040

main81483-28030-A1iACR50,GSR50..LHD..GL..GEN200601-200812

WHITE PEARL CS.,070

main81483-28030-B0iACR50,GSR50..LHD..GL..GEN; ACR50..LHD..DLX..GEN200812-201204

SILVER ME.,1F7; TAIWAN SPEC,SILVER ME.,1F7

main81483-28030-B1iACR50,GSR50..LHD..GL..GEN; ACR50..LHD..DLX..GEN200812-201204

MEDIUM SILVER ME.,1F8; TAIWAN SPEC,MEDIUM SILVER ME.,1F8

main81483-28030-B3iACR50..LHD..CVT;GSR50..LHD..GEN201204-201605

ICE TITANIUM M.M.,1H4

main81483-28030-C0iACR50,GSR50..LHD..GL..GEN; ACR50..LHD..DLX..GEN200812-201204

BLACK,202; TAIWAN SPEC,BLACK,202

main81483-28030-D0iACR50,GSR50..LHD..GL..GEN; ACR50..LHD..DLX..GEN200812-201204

DK. RED M.M.,3Q3; TAIWAN SPEC,DK. RED M.M.,3Q3

main81483-28030-D1iACR50..LHD..CVT;GSR50..LHD..GEN201204-201605

DEEP RED M.M.,3R9

main81483-28030-D2iGSR50..GEN;ACR50..GCC;ACR50..LHD..CVT201605

RED M.M.,3R3

main81483-28030-E0iGSR50..GEN;ACR50..LHD..CVT201409-201605

DARK SHERRY M.M.,4W4

main81483-28030-F0iACR50..LHD..CVT;GSR50..LHD..GEN201204-201409

SILKY GOLD M.M.,5A4

main81483-28030-J0iACR50,GSR50..LHD..GL..GEN; ACR50..LHD..DLX..GEN200812-201204

DK.BLUE MC.,8S6; TAIWAN SPEC,DK.BLUE MC.,8S6

main81483-28030-J1iACR50,GSR50..LHD..GL..GEN200601-200812

LT.BLUE M.M.,8S7

main81483-28030-K0iACR50,GSR50..LHD..GL..GEN; ACR50..LHD..DLX..GEN200812-201204

LT.PURPLE M.M.,9AE; TAIWAN SPEC,LT.PURPLE M.M.,9AE

8161922150

main81619-22150

7 parts on this diagram · 1 diagram in section
