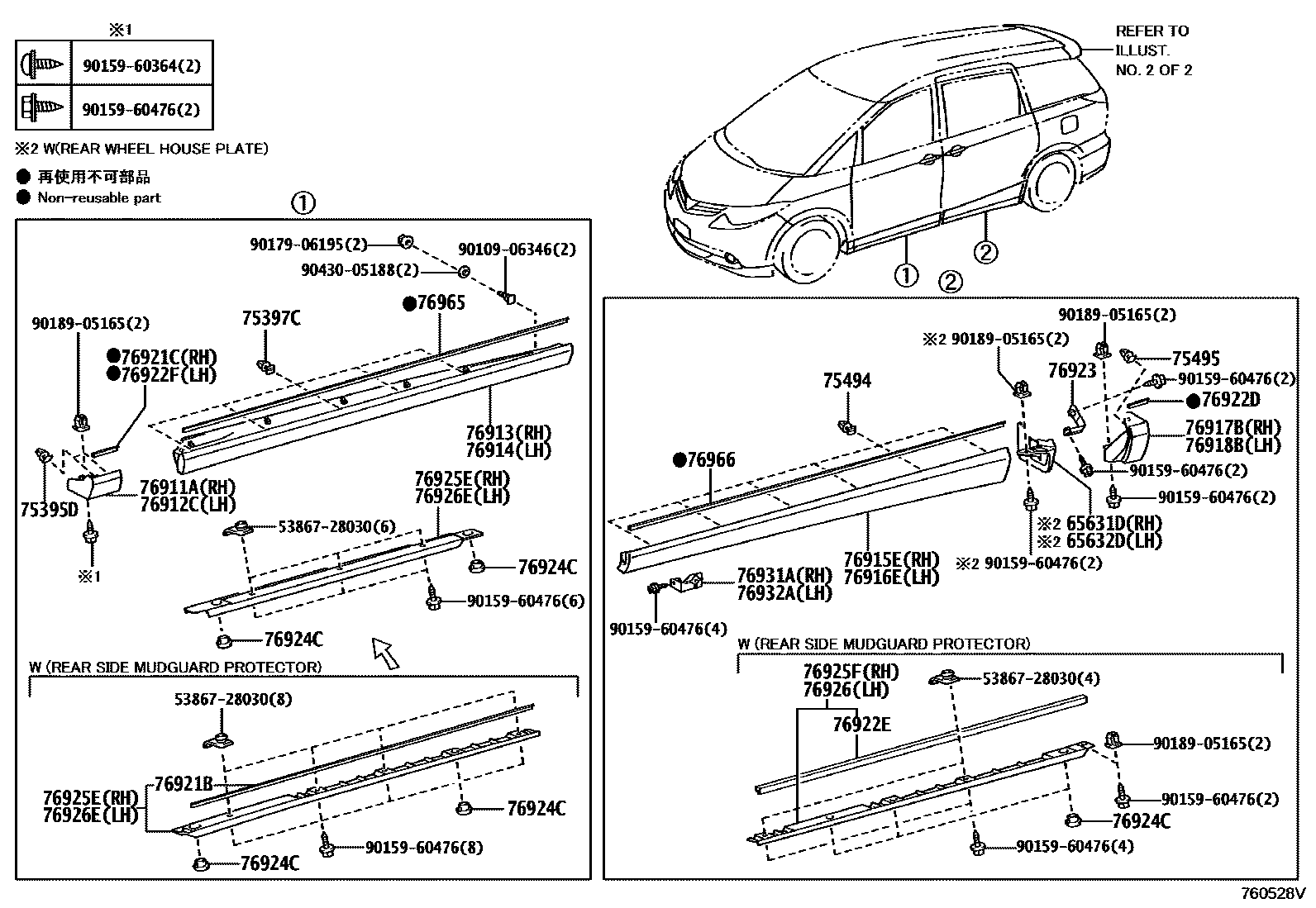

SPOILER & SIDE MUDGUARD
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
main65631-28010iACR50,GSR50..LHD..GL..GEN; ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50..LHD..GL..GEN200601-200812
EL SALVADOR SPEC; GUATEMALA SPEC; HONDURAS SPEC; JORDAN SPEC; PHILIPPINES SPEC; TAIWAN SPEC
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
main65632-28010iACR50,GSR50..LHD..GL..GEN; ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50..LHD..GL..GEN200601-200812
EL SALVADOR SPEC; GUATEMALA SPEC; HONDURAS SPEC; JORDAN SPEC; PHILIPPINES SPEC; TAIWAN SPEC
75395DCLIP, OUTSIDE MOULDING, NO.1
75397CCLIP, OUTSIDE MOULDING, NO.3
75494CLIP, OUTSIDE MOULDING, NO.3
75495CLIP, OUTSIDE MOULDING, NO.4
76911AMUDGUARD, FENDER PANEL, RH
76912CMUDGUARD, FENDER PANEL, LH
76913MUDGUARD, FRONT DOOR, RH
76914MUDGUARD, FRONT DOOR, LH
76915EMUDGUARD, SLIDE DOOR, RH
NO PAINT REQ.
PAINT REQ.
76916EMUDGUARD, SLIDE DOOR, LH
NO PAINT REQ.
PAINT REQ.
76917BMUDGUARD, QUARTER PANEL, RH
76918BMUDGUARD, QUARTER PANEL, LH
76921BPROTECTOR, SIDE MUDGUARD, NO.1
76921CPROTECTOR, SIDE MUDGUARD, RH
76922DPROTECTOR, SIDE MUDGUARD, NO.2
LT. GRAY,070
MEDIUM GRAY,1F7
BLACK,1H4 ,202 ,3R9 ,8V5
76922EPROTECTOR, SIDE MUDGUARD, NO.2
76922FPROTECTOR, SIDE MUDGUARD, LH
76923RETAINER, SIDE MUDGUARD
76924CRETAINER, SIDE MUDGUARD, NO.2
main76924-52021×4iACR50,GSR50..LHD..GL..GEN; ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50..LHD..GL..GEN200601-200812
EL SALVADOR SPEC; GUATEMALA SPEC; HONDURAS SPEC; JORDAN SPEC; PHILIPPINES SPEC; TAIWAN SPEC
76925EPROTECTOR, SIDE MUDGUARD, FRONT RH
main53821-28060supersedes 53821-28040iACR50,GSR50..LHD..GL..GEN; ACR50..LHD..GL..GEN; ACR50..RHD..GEN;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-201204
EL SALVADOR SPEC; GUATEMALA SPEC; HONDURAS SPEC; JORDAN SPEC; PHILIPPINES SPEC; TAIWAN SPEC; VENEZUELA SPEC
BEIJING SPEC; CHINA SPEC
76925FPROTECTOR, SIDE MUDGUARD, RH
76926PROTECTOR, SIDE MUDGUARD, LH
76926EPROTECTOR, SIDE MUDGUARD, FRONT LH
main53822-28060supersedes 53822-28040iACR50,GSR50..LHD..GL..GEN; ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50..LHD..GL..GEN200601-200812
EL SALVADOR SPEC; GUATEMALA SPEC; HONDURAS SPEC; JORDAN SPEC; PHILIPPINES SPEC; TAIWAN SPEC
BEIJING SPEC; CHINA SPEC
76931RETAINER, SIDE MUDGUARD, NO.3
76931ABRACKET, SIDE MUDGUARD, NO.1 RH
76932RETAINER, SIDE MUDGUARD, NO.4
76932ABRACKET, SIDE MUDGUARD, NO.1 LH
76965PROTECTOR, FRONT DOOR LOWER MUDGUARD
LT. GRAY,070
MEDIUM GRAY,1F7
BLACK,1H4 ,202 ,3R9 ,8V5
LT. GRAY,070,RH
MEDIUM GRAY,1F7 ,3R3,RH
BLACK,1H4 ,202 ,220 ,3R3,RH
LT. GRAY,070,RH
MEDIUM GRAY,1F7,RH
BLACK,1H4 ,202 ,220 ,3R3,RH
LT. GRAY,070,LH
MEDIUM GRAY,1F7 ,3R3,LH
BLACK,1H4 ,202 ,220 ,3R3,LH
LT. GRAY,070,LH
MEDIUM GRAY,1F7,LH
BLACK,1H4 ,202 ,220 ,3R3,LH
76966PROTECTOR, SLIDE DOOR LOWER MUDGUARD
LT. GRAY,070
MEDIUM GRAY,1F7
BLACK,1H4 ,202 ,3R9 ,8V5
LT. GRAY,070
MEDIUM GRAY,1F7 ,3R3
BLACK,1H4 ,202 ,220 ,3R3
5386728030SEAL, FRONT FENDER TO COWL SIDE, LH
main53867-28030
9010906346
main90109-06346
9015960364
main90159-60364
9015960476
main90159-60476
9017906195
main90179-06195
9018905165
main90189-05165
9043005188
main90430-05188
38 parts on this diagram · 4 diagrams in section
