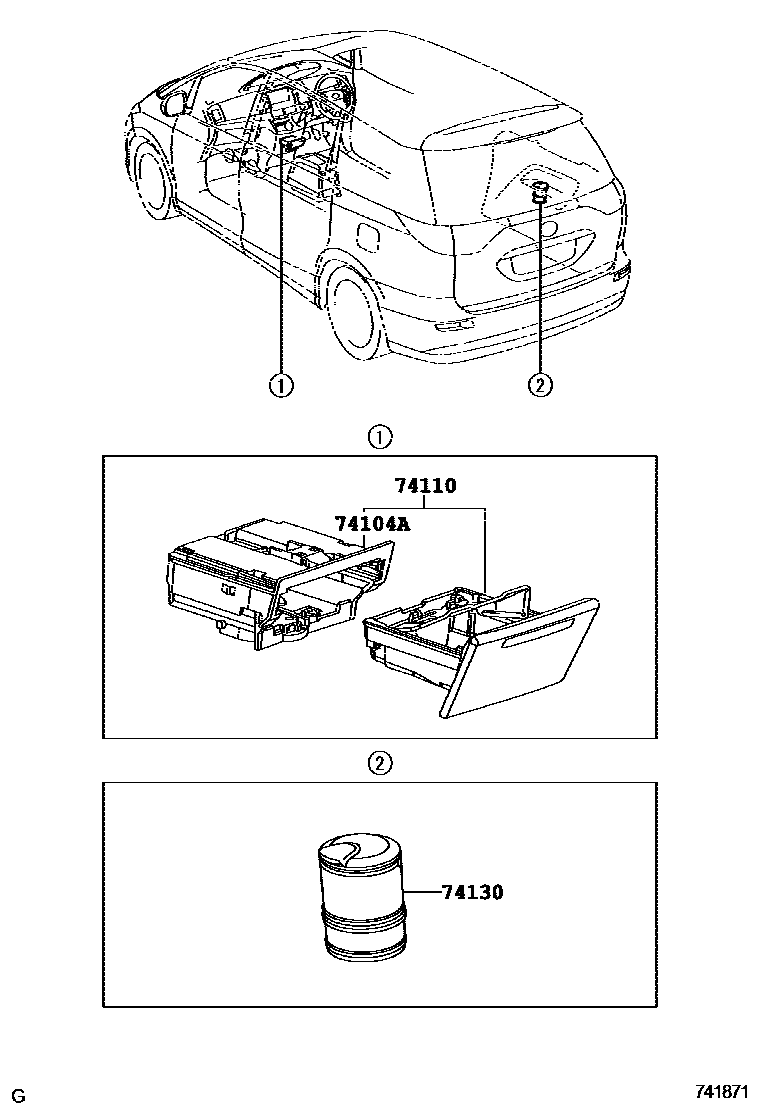

ASH RECEPTACLE

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-60120iACR50..ARL;GSR50..RHD200812-201205

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74110-28030-A0iGSR50..RHD;ACR50..RHD..(DLX,GL)..GEN201204-201304

SHELL,TRIM0#

main74110-28030-B0iACR50,GSR50..RHD..DLX200601-200812

GRAY,TRIM1#

main74110-28030-B1iACR50..ARL200812-201205

MD.GRAY,TRIM1#

main74110-28030-C0iACR50..CVT..(AERAS,DLX)201204-201304

BLACK,TRIM2#

main74110-28030-E0iGSR50..RHD200812-201205

GREGE,TRIM4#

main74110-28040-A0iACR50,GSR50..LHD201204-201605

SHELL,TRIM0#

main74110-28040-C0iGSR50..GEN;ACR50..LHD..CVT201605

BLACK,TRIM2#

main74110-28040-E0iACR50,GSR50..LHD200601-200812

GREGE,TRIM4#

74130RECEPTACLE ASSY, REAR ASH

main74130-28040-C0iACR50,GSR50..GL;ACR50..LHD..DLX; ACR50..RHD..DLX200601-200707

BLACK,TRIM1#; BLACK,TRIM4#

main74130-42010iACR50,GSR50200708-200812

3 parts on this diagram · 1 diagram in section
