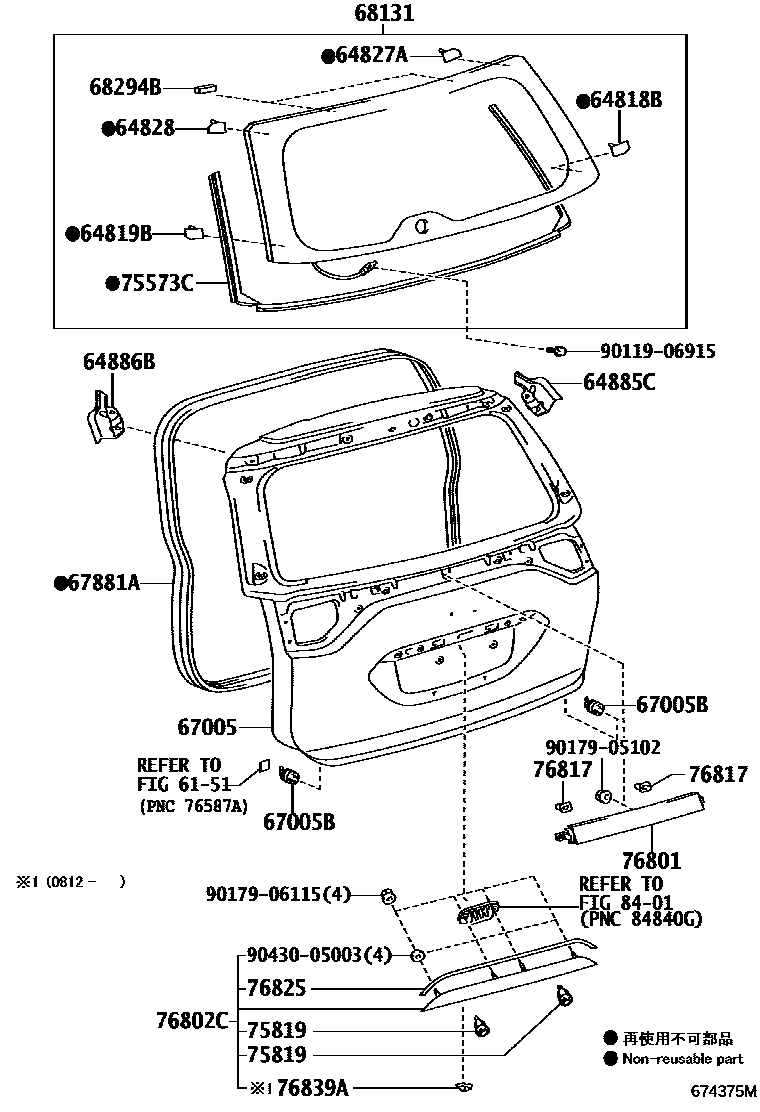

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

6151

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-28020iACR50,GSR50200601-201906

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-28020iACR50,GSR50200601-201906

64827ACLIP, BACK WINDOW GLASS, RH

main64827-28040iACR50,GSR50200601-201906

64828CLIP, BACK WINDOW GLASS, LH

main64828-28030iACR50,GSR50200601-201906

64885CCHANNEL, BACK DOOR GLASS, RH

main64885-28060iACR50,GSR50200601-201906

64886BCHANNEL, BACK DOOR GLASS, LH

main64886-28060iACR50,GSR50200601-201906

67005PANEL SUB-ASSY, BACK DOOR

main67005-28B00iACR50,GSR50200601-200806

sub67005-28C90

sub76889-28020

main67005-28C90iACR50,GSR50200806-201605

main67005-28C90iACR50..GCC;ACR50..RHD..GEN;ACR50..LHD..DLX..GEN200812-201204

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

main67005-28C90iACR50..GCC;ACR50..RHD..GEN;ACR50..LHD..DLX..GEN200812-201204

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)

main67005-28D10iGSR50..RHD..GEN201204-201906

main67005-28D10iGSR50..LHD;ACR50..AERAS200812-201605

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

main67005-28D10iGSR50..LHD;ACR50..AERAS201204-201605

HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(POWER STOW)

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-10042iACR50,GSR50..DLX,GL200601-201906

67881AWEATHERSTRIP, BACK DOOR

main67881-28120iACR50..ARL;GSR50..RHD200601-201906

68131GLASS, BACK DOOR

main68105-28610iACR50,GSR50200601-200810

*UVCEHT,T=3.1,GREEN

sub68105-28611

main68105-28611iACR50,GSR50200811-200812

*UVCEHT,T=3.1,GREEN

main68105-28680iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)200812-201605

*UVCEHT,T=3.1,GREEN

main68105-28680iACR50..AERAS201605-201906

68294BDAM, BACK DOOR GLASS ADHESIVE

main68294-26030iACR50,GSR50200607-201906

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-28030iACR50,GSR50200601-201906

75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-33010iGSR50..LHD;ACR50..GCC,GEN200601-201906

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-28260iACR50,GSR50200707-200812

main76801-28330iACR50,GSR50200601-200706

sub76801-28260

main76801-28400iACR50,GSR50200812-201204

sub76801-28401

main76801-28401iGSR50..RHD..GEN201204-201605

main76801-28450iACR50..AERAS201205-201605

main76801-28460iACR50..AERAS201605-201906

76802CGARNISH SUB-ASSY, BACK DOOR, OUTSIDE NO.2

main76802-28010iACR50,GSR50200601-200812

sub76802-28070

main76802-28070iACR50,GSR50..DLX,GL200812-201906

main76802-28080-A0iACR50..AERAS201205-201605

WHITE PEARL CS.,070

main76802-28080-B0iACR50..AERAS201205-201605

SILVER ME.,1F7

main76802-28080-B1iACR50..AERAS201205-201605

ICE TITANIUM M.M.,1H4

main76802-28080-C0iACR50..AERAS201205-201605

BLACK,202

main76802-28080-D0iACR50..AERAS201205-201605

DEEP RED M.M.,3R9

main76802-28080-J0iACR50..AERAS201205-201605

GRAYISH BLUE M.M.,8V5

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040iGSR50..LHD;ACR50..GCC,GEN200601-201906

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-28080iACR50..ARL;GSR50..RHD200601-201906

76839ACOVER, BACK DOOR GARNISH

main76839-28030iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)200812-201906

8401

9011906915

main90119-06915

9017905102

main90179-05102

9017906115

main90179-06115

9043005003

main90430-05003

24 parts on this diagram · 2 diagrams in section
