FRONT DOOR LOCK & HANDLE

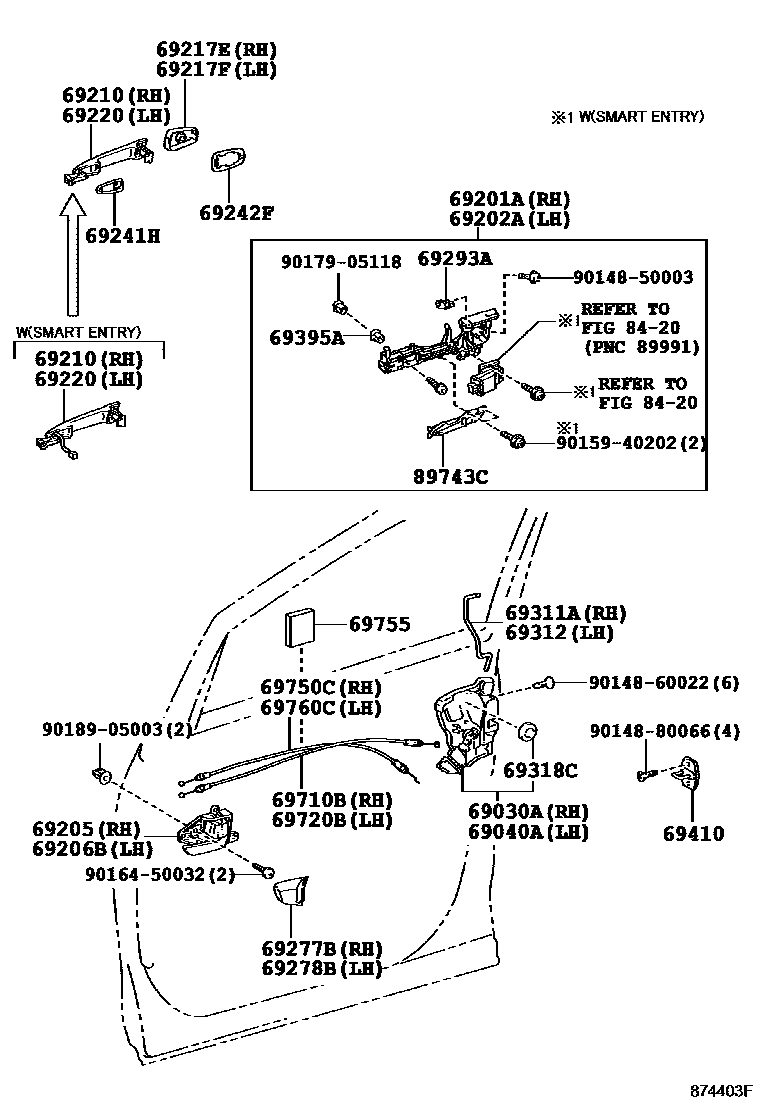

Parts diagram
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-28160i200601-201605
main69030-28170i200601-200610
sub69030-28171
main69030-28171i200610-201204
main69030-28181i200812-201204
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN
main69030-28181i200812-201204
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN
main69030-28181i200812-201204
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)
main69030-42210i201205-201906
main69030-42221i201204-201605
main69030-42221i200812-201204
SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEADLAMP-DISCHARGE & AFS
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-28200i200601-200812
main69040-28200i200812-201205
SLIDE DOOR-*ECS(RH,LH)
main69040-28210i200601-200610
sub69040-28211
main69040-28211i200610-201605
main69040-28230i200812-201605
main69040-42230i201003-201906
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-28010i200601-201605
main69201-28010i200812-201204
HEADLAMP-HALOGEN
main69201-28030i200812-201204
HEADLAMP-DISCHARGE & AFS
main69201-28030i201011-201906
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-28010i200812-201204
HEADLAMP-HALOGEN
main69202-28010i200601-201605
main69202-28020i201011-201906
main69202-28020i200812-201204
HEADLAMP-DISCHARGE & AFS
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-20180-A0i201204-201605
SHELL,TRIM0#
main69205-20180-B2i200601-200812
GRAY,TRIM1#
main69205-20180-B3i200812-201205
MD.GRAY,TRIM1#
main69205-20180-C0i201204-201906
BLACK,TRIM2#
main69205-20180-E1i200601-201205
GREGE,TRIM4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-20180-A0i201204-201605
SHELL,TRIM0#
main69206-20180-B2i200601-200812
GRAY,TRIM1#
main69206-20180-B3i200812-201205
MD.GRAY,TRIM1#
main69206-20180-C0i201204-201906
BLACK,TRIM2#
main69206-20180-E1i200601-201205
GREGE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-44030-A3i200812-201204
HEADLAMP-DISCHARGE & AFS,SUPER WHITE 2,040
sub69210-44030
main69210-44030-A3i200812-201605
SUPER WHITE 2,040
sub69210-44030
main69210-44030-A6i200812-201906
WHITE PEARL CS.,070
sub69210-44030
main69210-44030-A6i200812-201204
HEADLAMP-DISCHARGE & AFS,WHITE PEARL CS.,070
sub69210-44030
main69210-44030-B0i200812-201906
SILVER ME.,1F7
sub69210-44030
main69210-44030-B0i200812-201204
HEADLAMP-DISCHARGE & AFS,SILVER ME.,1F7
sub69210-44030
main69210-44030-C1i200812-201906
BLACK,202
sub69210-44030
main69210-44030-C1i200812-201204
HEADLAMP-DISCHARGE & AFS,BLACK,202
sub69210-44030
main69210-44030-C5i201605-201906
SPARKLING BLACK PEARL CS.,220
sub69210-44030
main69210-44030-D3i201605-201906
RED M.M.,3R3
sub69210-44030
main69210-44030-D5i200812-201205
DK. RED M.M.,3Q3
sub69210-44030
main69210-44030-D5i200812-201204
HEADLAMP-DISCHARGE & AFS,DK. RED M.M.,3Q3
sub69210-44030
main69210-44030-D8i201204-201605
DEEP RED M.M.,3R9
sub69210-44030
main69210-44030-F4i200812-201204
HEADLAMP-DISCHARGE & AFS,SILKY GOLD M.M.,5A4
sub69210-44030
main69210-44030-F4i200812-201409
SILKY GOLD M.M.,5A4
sub69210-44030
main69210-44030-J2i200812-201204
HEADLAMP-DISCHARGE & AFS,DK.BLUE MC.,8S6
sub69210-44030
main69210-44030-J2i200812-201205
DK.BLUE MC.,8S6
sub69210-44030
main69210-44030-K1i200812-201204
HEADLAMP-DISCHARGE & AFS,LT.PURPLE M.M.,9AE
sub69210-44030
main69210-44030-K1i200812-201205
LT.PURPLE M.M.,9AE
sub69210-44030
main69210-44030-L1i201409-201605
DARK SHERRY M.M.,4W4
sub69210-44030
main69210-44030-P1i200812-201205
MEDIUM SILVER ME.,1F8
sub69210-44030
main69210-44030-P1i200812-201204
HEADLAMP-DISCHARGE & AFS,MEDIUM SILVER ME.,1F8
sub69210-44030
main69210-44030-P6i201204-201906
ICE TITANIUM M.M.,1H4
sub69210-44030
main69210-44030-R6i201205-201605
GRAYISH BLUE M.M.,8V5
sub69210-44030
main69211-28070-A0i200601-201605
SUPER WHITE 2,040
sub69211-28070
main69211-28070-A0i200812-201204
HEADLAMP-HALOGEN,SUPER WHITE 2,040
sub69211-28070
main69211-28070-A3i200812-201204
HEADLAMP-HALOGEN,WHITE PEARL CS.,070
sub69211-28070
main69211-28070-A3i200601-201605
WHITE PEARL CS.,070
sub69211-28070
main69211-28070-C1i200812-201204
HEADLAMP-HALOGEN,BLACK,202
sub69211-28070
main69211-28070-C1i200601-201605
BLACK,202
sub69211-28070
main69211-28070-D9i200812-201204
HEADLAMP-HALOGEN,DK. RED M.M.,3Q3
sub69211-28070
main69211-28070-D9i200601-201205
DK. RED M.M.,3Q3
sub69211-28070
main69211-28070-F8i200601-201409
SILKY GOLD M.M.,5A4
sub69211-28070
main69211-28070-F8i200812-201204
HEADLAMP-HALOGEN,SILKY GOLD M.M.,5A4
sub69211-28070
main69211-28070-K2i200812-201205
LT.PURPLE M.M.,9AE
sub69211-28070
main69211-28070-K2i200812-201204
HEADLAMP-HALOGEN,LT.PURPLE M.M.,9AE
sub69211-28070
main69211-28070-L3i201409-201605
DARK SHERRY M.M.,4W4
sub69211-28070
main69211-28070-P2i200601-201605
SILVER ME.,1F7
sub69211-28070
main69211-28070-P2i200812-201204
HEADLAMP-HALOGEN,SILVER ME.,1F7
sub69211-28070
main69211-28070-P6i200601-201205
MEDIUM SILVER ME.,1F8
sub69211-28070
main69211-28070-P6i200812-201204
HEADLAMP-HALOGEN,MEDIUM SILVER ME.,1F8
sub69211-28070
main69211-28070-R9i200601-201205
DK.BLUE MC.,8S6
sub69211-28070
main69211-28070-R9i200812-201204
HEADLAMP-HALOGEN,DK.BLUE MC.,8S6
sub69211-28070
main69211-28070-S4i201205-201605
ICE TITANIUM M.M.,1H4
sub69211-28070
main69211-28070-V4i200601-200812
LT.BLUE M.M.,8S7
sub69211-28070
main69211-28070-X1i201605
RED M.M.,3R3
sub69211-28070
main69211-28070-X4i201205-201605
DEEP RED M.M.,3R9
sub69211-28070
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-28010-A0i200812-201204
HEADLAMP-HALOGEN,SUPER WHITE 2,040
sub69217-28010
main69217-28010-A0i200601-201605
SUPER WHITE 2,040
sub69217-28010
main69217-28010-A3i200601-201906
WHITE PEARL CS.,070
sub69217-28010
main69217-28010-A3i200812-201204
HEADLAMP-HALOGEN,WHITE PEARL CS.,070
sub69217-28010
main69217-28010-C1i200812-201204
HEADLAMP-HALOGEN,BLACK,202
sub69217-28010
main69217-28010-C1i200601-201906
BLACK,202
sub69217-28010
main69217-28010-C6i201605-201906
SPARKLING BLACK PEARL CS.,220
sub69217-28010
main69217-28010-D9i200812-201204
HEADLAMP-HALOGEN,DK. RED M.M.,3Q3
sub69217-28010
main69217-28010-D9i200601-201205
DK. RED M.M.,3Q3
sub69217-28010
main69217-28010-F8i200812-201204
HEADLAMP-HALOGEN,SILKY GOLD M.M.,5A4
sub69217-28010
main69217-28010-F8i200601-201409
SILKY GOLD M.M.,5A4
sub69217-28010
main69217-28010-K3i200812-201205
LT.PURPLE M.M.,9AE
sub69217-28010
main69217-28010-K3i200812-201204
HEADLAMP-HALOGEN,LT.PURPLE M.M.,9AE
sub69217-28010
main69217-28010-L8i201409-201605
DARK SHERRY M.M.,4W4
sub69217-28010
main69217-28010-P2i200601-201906
SILVER ME.,1F7
sub69217-28010
main69217-28010-P2i200812-201204
HEADLAMP-HALOGEN,SILVER ME.,1F7
sub69217-28010
main69217-28010-P7i200601-201205
MEDIUM SILVER ME.,1F8
sub69217-28010
main69217-28010-P7i200812-201204
HEADLAMP-HALOGEN,MEDIUM SILVER ME.,1F8
sub69217-28010
main69217-28010-R9i200601-201205
DK.BLUE MC.,8S6
sub69217-28010
main69217-28010-R9i200812-201204
HEADLAMP-HALOGEN,DK.BLUE MC.,8S6
sub69217-28010
main69217-28010-S6i201204-201906
ICE TITANIUM M.M.,1H4
sub69217-28010
main69217-28010-V4i200601-200812
LT.BLUE M.M.,8S7
sub69217-28010
main69217-28010-W3i201205-201605
GRAYISH BLUE M.M.,8V5
sub69217-28010
main69217-28010-X2i201605-201906
RED M.M.,3R3
sub69217-28010
main69217-28010-X5i201204-201605
DEEP RED M.M.,3R9
sub69217-28010
main69217-60020-A1i200812-201605
WHITE PEARL CS.,070
sub69217-60020
main69217-60020-A1i200812-201204
HEADLAMP-DISCHARGE & AFS,WHITE PEARL CS.,070
sub69217-60020
main69217-60020-A2i200812-201605
SUPER WHITE 2,040
sub69217-60020
main69217-60020-A2i200812-201204
HEADLAMP-DISCHARGE & AFS,SUPER WHITE 2,040
sub69217-60020
main69217-60020-C0i200812-201605
BLACK,202
sub69217-60020
main69217-60020-C0i200812-201204
HEADLAMP-DISCHARGE & AFS,BLACK,202
sub69217-60020
main69217-60020-D8i200812-201204
HEADLAMP-DISCHARGE & AFS,DK. RED M.M.,3Q3
sub69217-60020
main69217-60020-D8i200812-201204
DK. RED M.M.,3Q3
sub69217-60020
main69217-60020-F6i200812-201409
SILKY GOLD M.M.,5A4
sub69217-60020
main69217-60020-F6i200812-201204
HEADLAMP-DISCHARGE & AFS,SILKY GOLD M.M.,5A4
sub69217-60020
main69217-60020-K2i200812-201204
LT.PURPLE M.M.,9AE
sub69217-60020
main69217-60020-K2i200812-201204
HEADLAMP-DISCHARGE & AFS,LT.PURPLE M.M.,9AE
sub69217-60020
main69217-60020-L8i201409-201605
DARK SHERRY M.M.,4W4
sub69217-60020
main69217-60020-P0i200812-201605
SILVER ME.,1F7
sub69217-60020
main69217-60020-P0i200812-201204
HEADLAMP-DISCHARGE & AFS,SILVER ME.,1F7
sub69217-60020
main69217-60020-P5i200812-201204
MEDIUM SILVER ME.,1F8
sub69217-60020
main69217-60020-P5i200812-201204
HEADLAMP-DISCHARGE & AFS,MEDIUM SILVER ME.,1F8
sub69217-60020
main69217-60020-R5i200812-201204
HEADLAMP-DISCHARGE & AFS,DK.BLUE MC.,8S6
sub69217-60020
main69217-60020-R5i200812-201204
DK.BLUE MC.,8S6
sub69217-60020
main69217-60020-S2i201204-201605
ICE TITANIUM M.M.,1H4
sub69217-60020
main69217-60020-X0i201605
RED M.M.,3R3
sub69217-60020
main69217-60020-X2i201204-201605
DEEP RED M.M.,3R9
sub69217-60020
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69217-28010-A0i200601-201605
SUPER WHITE 2,040
sub69217-28010
main69217-28010-A3i200601-201605
WHITE PEARL CS.,070
sub69217-28010
main69217-28010-C1i200601-201605
BLACK,202
sub69217-28010
main69217-28010-D9i200601-201205
DK. RED M.M.,3Q3
sub69217-28010
main69217-28010-F8i200601-201409
SILKY GOLD M.M.,5A4
sub69217-28010
main69217-28010-K3i200812-201205
LT.PURPLE M.M.,9AE
sub69217-28010
main69217-28010-L8i201409-201605
DARK SHERRY M.M.,4W4
sub69217-28010
main69217-28010-P2i200601-201605
SILVER ME.,1F7
sub69217-28010
main69217-28010-P7i200601-201205
MEDIUM SILVER ME.,1F8
sub69217-28010
main69217-28010-R9i200601-201205
DK.BLUE MC.,8S6
sub69217-28010
main69217-28010-S6i201204-201605
ICE TITANIUM M.M.,1H4
sub69217-28010
main69217-28010-V4i200601-200812
LT.BLUE M.M.,8S7
sub69217-28010
main69217-28010-X2i201605
RED M.M.,3R3
sub69217-28010
main69217-28010-X5i201204-201605
DEEP RED M.M.,3R9
sub69217-28010
main69217-60020-A1i201003-201906
WHITE PEARL CS.,070
sub69217-60020
main69217-60020-A2i201003-201605
SUPER WHITE 2,040
sub69217-60020
main69217-60020-C0i201003-201906
BLACK,202
sub69217-60020
main69217-60020-C6i201605-201906
SPARKLING BLACK PEARL CS.,220
sub69217-60020
main69217-60020-D8i201003-201205
DK. RED M.M.,3Q3
sub69217-60020
main69217-60020-F6i201003-201409
SILKY GOLD M.M.,5A4
sub69217-60020
main69217-60020-K2i201003-201205
LT.PURPLE M.M.,9AE
sub69217-60020
main69217-60020-L8i201409-201605
DARK SHERRY M.M.,4W4
sub69217-60020
main69217-60020-P0i201003-201906
SILVER ME.,1F7
sub69217-60020
main69217-60020-P5i201003-201205
MEDIUM SILVER ME.,1F8
sub69217-60020
main69217-60020-R5i201003-201205
DK.BLUE MC.,8S6
sub69217-60020
main69217-60020-S2i201204-201906
ICE TITANIUM M.M.,1H4
sub69217-60020
main69217-60020-V8i201205-201605
GRAYISH BLUE M.M.,8V5
sub69217-60020
main69217-60020-X0i201605-201906
RED M.M.,3R3
sub69217-60020
main69217-60020-X2i201204-201605
DEEP RED M.M.,3R9
sub69217-60020
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-44030-A3i200812-201605
SUPER WHITE 2,040
sub69210-44030
main69210-44030-A3i200812-201204
HEADLAMP-DISCHARGE & AFS,SUPER WHITE 2,040
sub69210-44030
main69210-44030-A6i200812-201906
WHITE PEARL CS.,070
sub69210-44030
main69210-44030-A6i200812-201204
HEADLAMP-DISCHARGE & AFS,WHITE PEARL CS.,070
sub69210-44030
main69210-44030-B0i200812-201906
SILVER ME.,1F7
sub69210-44030
main69210-44030-B0i200812-201204
HEADLAMP-DISCHARGE & AFS,SILVER ME.,1F7
sub69210-44030
main69210-44030-C1i200812-201906
BLACK,202
sub69210-44030
main69210-44030-C1i200812-201204
HEADLAMP-DISCHARGE & AFS,BLACK,202
sub69210-44030
main69210-44030-C5i201605-201906
SPARKLING BLACK PEARL CS.,220
sub69210-44030
main69210-44030-D3i201605-201906
RED M.M.,3R3
sub69210-44030
main69210-44030-D5i200812-201205
DK. RED M.M.,3Q3
sub69210-44030
main69210-44030-D5i200812-201204
HEADLAMP-DISCHARGE & AFS,DK. RED M.M.,3Q3
sub69210-44030
main69210-44030-D8i201204-201605
DEEP RED M.M.,3R9
sub69210-44030
main69210-44030-F4i200812-201204
HEADLAMP-DISCHARGE & AFS,SILKY GOLD M.M.,5A4
sub69210-44030
main69210-44030-F4i200812-201409
SILKY GOLD M.M.,5A4
sub69210-44030
main69210-44030-J2i200812-201204
HEADLAMP-DISCHARGE & AFS,DK.BLUE MC.,8S6
sub69210-44030
main69210-44030-J2i200812-201205
DK.BLUE MC.,8S6
sub69210-44030
main69210-44030-K1i200812-201204
HEADLAMP-DISCHARGE & AFS,LT.PURPLE M.M.,9AE
sub69210-44030
main69210-44030-K1i200812-201205
LT.PURPLE M.M.,9AE
sub69210-44030
main69210-44030-L1i201409-201605
DARK SHERRY M.M.,4W4
sub69210-44030
main69210-44030-P1i200812-201204
HEADLAMP-DISCHARGE & AFS,MEDIUM SILVER ME.,1F8
sub69210-44030
main69210-44030-P1i200812-201205
MEDIUM SILVER ME.,1F8
sub69210-44030
main69210-44030-P6i201204-201906
ICE TITANIUM M.M.,1H4
sub69210-44030
main69210-44030-R6i201205-201605
GRAYISH BLUE M.M.,8V5
sub69210-44030
main69211-28070-A0i200601-201605
SUPER WHITE 2,040
sub69211-28070
main69211-28070-A0i200812-201204
HEADLAMP-HALOGEN,SUPER WHITE 2,040
sub69211-28070
main69211-28070-A3i200601-201605
WHITE PEARL CS.,070
sub69211-28070
main69211-28070-A3i200812-201204
HEADLAMP-HALOGEN,WHITE PEARL CS.,070
sub69211-28070
main69211-28070-C1i200812-201204
HEADLAMP-HALOGEN,BLACK,202
sub69211-28070
main69211-28070-C1i200601-201605
BLACK,202
sub69211-28070
main69211-28070-D9i200812-201204
HEADLAMP-HALOGEN,DK. RED M.M.,3Q3
sub69211-28070
main69211-28070-D9i200601-201205
DK. RED M.M.,3Q3
sub69211-28070
main69211-28070-F8i200812-201204
HEADLAMP-HALOGEN,SILKY GOLD M.M.,5A4
sub69211-28070
main69211-28070-F8i200601-201409
SILKY GOLD M.M.,5A4
sub69211-28070
main69211-28070-K2i200812-201205
LT.PURPLE M.M.,9AE
sub69211-28070
main69211-28070-K2i200812-201204
HEADLAMP-HALOGEN,LT.PURPLE M.M.,9AE
sub69211-28070
main69211-28070-L3i201409-201605
DARK SHERRY M.M.,4W4
sub69211-28070
main69211-28070-P2i200601-201605
SILVER ME.,1F7
sub69211-28070
main69211-28070-P2i200812-201204
HEADLAMP-HALOGEN,SILVER ME.,1F7
sub69211-28070
main69211-28070-P6i200601-201205
MEDIUM SILVER ME.,1F8
sub69211-28070
main69211-28070-P6i200812-201204
HEADLAMP-HALOGEN,MEDIUM SILVER ME.,1F8
sub69211-28070
main69211-28070-R9i200601-201205
DK.BLUE MC.,8S6
sub69211-28070
main69211-28070-R9i200812-201204
HEADLAMP-HALOGEN,DK.BLUE MC.,8S6
sub69211-28070
main69211-28070-S4i201205-201605
ICE TITANIUM M.M.,1H4
sub69211-28070
main69211-28070-V4i200601-200812
LT.BLUE M.M.,8S7
sub69211-28070
main69211-28070-X1i201605
RED M.M.,3R3
sub69211-28070
main69211-28070-X4i201205-201605
DEEP RED M.M.,3R9
sub69211-28070
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-28060i200601-201906
69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-60030i200601-201906
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
main69297-30030-A1i201204-201605
SHELL,TRIM0#
sub69297-30030
main69297-30030-B4i200812-201205
MD.GRAY,TRIM1#
sub69297-30030
main69297-30030-B5i200601-200812
GRAY,TRIM1#
sub69297-30030
main69297-30030-C0i201204-201906
BLACK,TRIM2#
sub69297-30030
main69297-30030-E1i200601-201205
GREGE,TRIM4#
sub69297-30030
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69298-30030-A1i201204-201605
SHELL,TRIM0#
sub69298-30030
main69298-30030-B4i200812-201205
MD.GRAY,TRIM1#
sub69298-30030
main69298-30030-B5i200601-200812
GRAY,TRIM1#
sub69298-30030
main69298-30030-C0i201204-201906
BLACK,TRIM2#
sub69298-30030
main69298-30030-E1i200601-201205
GREGE,TRIM4#
sub69298-30030
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12030i200601-201906
RH
main69293-12040i200601-201906
LH
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-28050i200601-201906
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-28050i200601-201906
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i200601-201906
69395ABUSHING(FOR FRONT DOOR OUTSIDE HANDLE)
main90386-08066i200601-201906
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-33010i200601-201906
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-28040i200601-201906
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-28040i200601-201906
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-28040i200601-201906
69755SILENCER, FRONT DOOR LOCK LINK
main90950-06117i200601-201906
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-28040i200601-201906
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
main89743-30130i200812-201906
LH
main89743-30130i200812-201204
HEADLAMP-DISCHARGE & AFS,LH
main89743-68010i200812-201906
RH
main89743-68010i200812-201204
HEADLAMP-DISCHARGE & AFS,RH
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
9016450032
main90164-50032
9017905118
main90179-05118
9018905003
main90189-05003

34 parts on this diagram · 1 diagram in section
