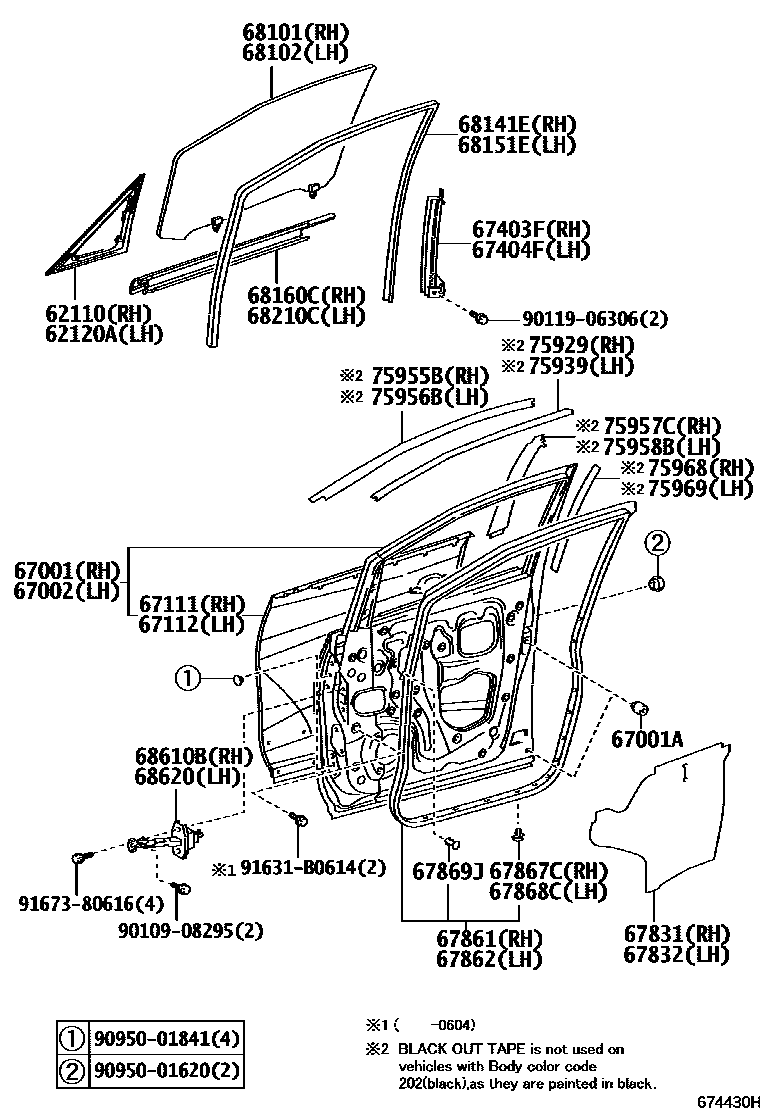

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62110WINDOW ASSY, FRONT SIDE FIX, RH

main62110-28050iACR50,GSR50200601-200710

main62110-28051iACR50,GSR50200711-200810

main62110-28052iACR50,GSR50200811-200812

62120AWINDOW ASSY, FRONT SIDE FIX, LH

main62120-28180iACR50,GSR50200601-200710

main62120-28181iACR50,GSR50200711-200810

main62120-28182iACR50,GSR50200811-200812

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-28200iGSR50..LHD;ACR50..GCC,GEN200812-201204

main67001-28240iACR50..AERAS201605-201906

67001ACUSHION, FRONT DOOR PANEL

main90541-09069×4iACR50,GSR50200601-200812

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-28210iACR50,GSR50200601-200812

main67002-28260iACR50..AERAS201605-201906

67111PANEL, FRONT DOOR, OUTER RH

main67111-28090iACR50,GSR50200601-200812

67112PANEL, FRONT DOOR, OUTER LH

main67112-28100iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201605

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-28090iACR50,GSR50200601-200812

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-28090iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-28160iACR50,GSR50200812-201010

main67831-28161iGSR50..RHD..GEN201204-201409

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-28160iACR50,GSR50200601-200812

main67832-28130iGSR50..LHD;ACR50..GCC,GEN201010-201204

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-28080iACR50,GSR50200601-200812

main67861-28081iACR50,GSR50201206-201302

main67861-28082iGSR50..RHD..GEN201303-201409

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-28080iACR50,GSR50200601-200812

main67862-28081iACR50,GSR50201206-201302

main67862-28082iGSR50..RHD..GEN201303-201409

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×23iGSR50..LHD;ACR50..GCC,GEN200812-201204

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×23iACR50,GSR50200601-200812

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×2iACR50,GSR50200601-200812

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-28240iACR50,GSR50200601-200812

main68101-28241iACR50,GSR50200812-201109

main68101-28242iGSR50..LHD;ACR50..GCC,GEN201110-201204

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-28240iACR50,GSR50200601-200812

main68102-28241iACR50,GSR50200812-201109

main68102-28242iGSR50..LHD;ACR50..GCC,GEN201110-201204

68141ERUN, FRONT DOOR GLASS, RH

main68141-28120iACR50,GSR50200601-200812

main68141-28180iGSR50..RHD..GEN201312-201409

PNC 85710D=TYPE B

68151ERUN, FRONT DOOR GLASS, LH

main68151-28090iACR50,GSR50200601-200812

main68151-28150iGSR50..RHD..GEN201312-201409

PNC 85720C=TYPE B

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-28060iACR50,GSR50200601-200812

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68162-28060iACR50,GSR50200601-200812

68610BCHECK ASSY, FRONT DOOR, RH

main68610-28060iACR50,GSR50200601-200812

68620CHECK ASSY, FRONT DOOR, LH

main68610-28060iGSR50..LHD;ACR50..GCC,GEN200812-201204

75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH

main75929-28020iGSR50..LHD;ACR50..GCC,GEN200812-201204

75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH

main75939-28020iACR50,GSR50200601-200812

75955BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH

main75955-28030iACR50,GSR50200601-200812

75956BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH

main75956-28030iGSR50..LHD;ACR50..GCC,GEN200812-201204

75957CTAPE, BLACK OUT FRONT DOOR, OUTER REAR RH

main75957-28030iACR50,GSR50200601-200812

75958BTAPE, BLACK OUT FRONT DOOR, OUTER REAR LH

main75958-28030iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH

main75968-28020iACR50,GSR50200601-200812

75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH

main75969-28020iACR50,GSR50200601-200812

9010908295

main90109-08295

9011906306

main90119-06306

9095001620

main90950-01620

9095001841

main90950-01841

91631B0614

main91631-B0614

9167380616

main91673-80616

38 parts on this diagram · 2 diagrams in section
