E
EPC Data

INSIDE TRIM BOARD

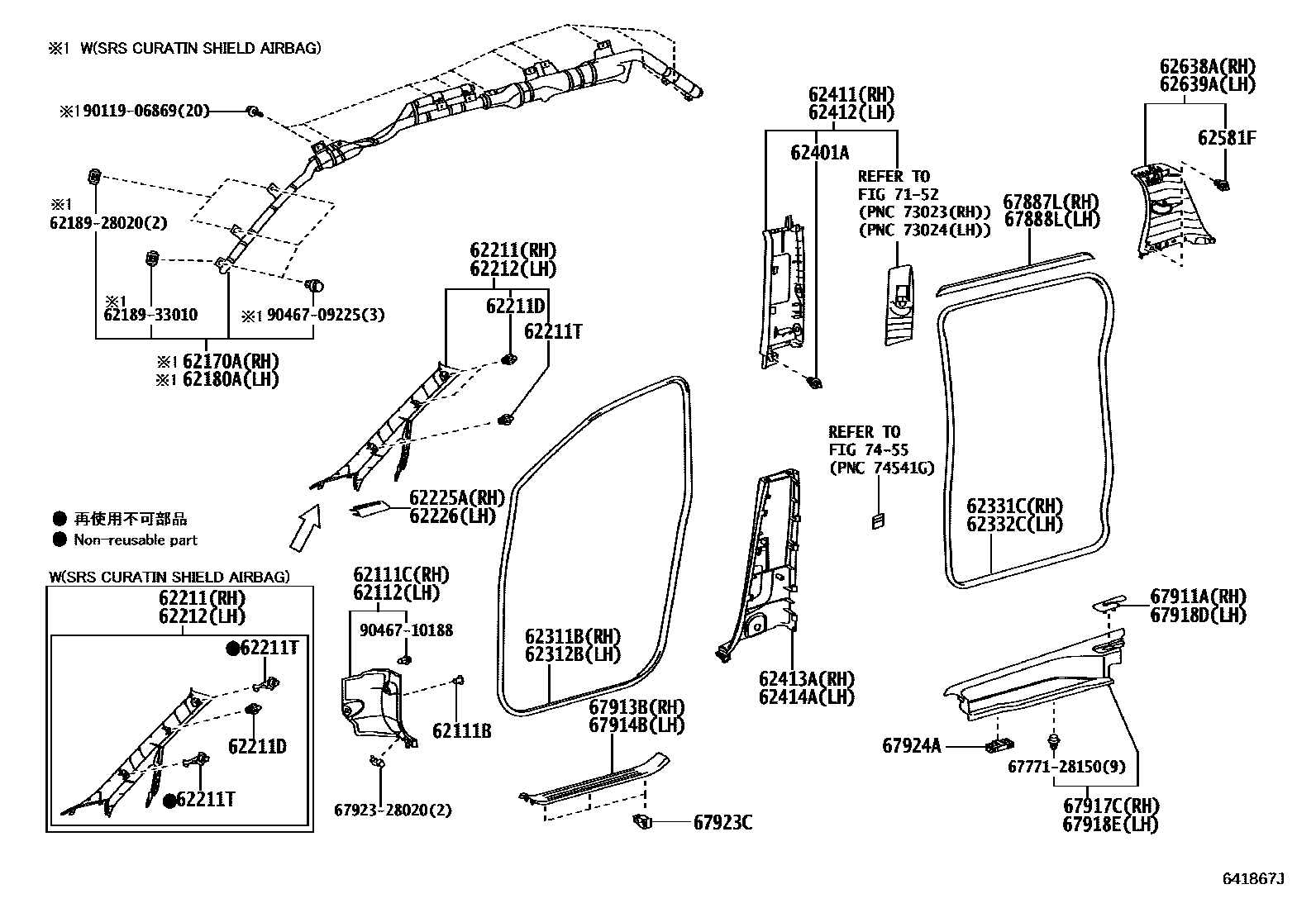

Parts diagram
62111BCLIP(FOR COWL SIDE TRIM)
main90467-06147i201312-201906
main90467-06155i201008-201311
main90467-06193-B2i200812-201007
MD.GRAY,TRIM1#
main90467-06193-B3i200601-200812
GRAY,TRIM1#
main90467-06193-E0i200601-201007
GREGE,TRIM4#
62111CBOARD, COWL SIDE TRIM, RH
main62111-28160-B0i200601-200612
GRAY,TRIM1#
sub62111-28190
main62111-28160-E0i200601-200612
GREGE,TRIM4#
sub62111-28190
main62111-28190-B0i200701-200812
GRAY,TRIM1#
sub62111-28200
main62111-28190-B1i200812-201110
MD.GRAY,TRIM1#
sub62111-28200
main62111-28190-E0i200701-201110
GREGE,TRIM4#
sub62111-28200
main62111-28200-A0i201204-201305
SHELL,TRIM0#
sub62111-28201
main62111-28200-B0i201111-201205
MD.GRAY,TRIM1#
sub62111-28201
main62111-28200-C0i201204-201305
BLACK,TRIM2#
sub62111-28201
main62111-28200-E0i201111-201205
GREGE,TRIM4#
sub62111-28201
main62111-28201-A0i201306-201605
SHELL,TRIM0#
main62111-28201-C0i201306-201906
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
main62112-28180-B0i200601-200612
GRAY,TRIM1#
sub62112-28210
main62112-28180-E0i200601-200612
GREGE,TRIM4#
sub62112-28210
main62112-28210-A0i201204-201305
SHELL,TRIM0#
sub62112-28211
main62112-28210-B0i200701-200812
GRAY,TRIM1#
sub62112-28211
main62112-28210-B1i200812-201205
MD.GRAY,TRIM1#
sub62112-28211
main62112-28210-C0i201204-201305
BLACK,TRIM2#
sub62112-28211
main62112-28210-E0i200701-201205
GREGE,TRIM4#
sub62112-28211
main62112-28211-A0i201306-201605
SHELL,TRIM0#
main62112-28211-C0i201306-201906
BLACK,TRIM2#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-28021i201204-201906
main62170-28021i200812-201204
SRS AIR BAG-WITH(DRIVER & PASSENGER)
main62170-28021i200812-201605
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
main62170-28021i201605
SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-28021i200812-201204
SRS AIR BAG-WITH(DRIVER & PASSENGER)
main62180-28021i200812-201605
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
main62180-28021i201204-201906
main62180-28021i201605
SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE
62211GARNISH, FRONT PILLAR, RH
main62210-28060-B0i200601-200701
LT.GRAY,TRIM1#
sub62210-28120
main62210-28060-E0i200601-200701
GREGE,TRIM4#
sub62210-28120
main62210-28101-A0i201204-201304
SHELL,TRIM0#
sub62210-28102
main62210-28101-B0i200701-201205
LT.GRAY,TRIM1#
sub62210-28102
main62210-28101-B0i201204-201304
LT.GRAY,TRIM2#
sub62210-28102
main62210-28101-E0i200812-201204
SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
sub62210-28102
main62210-28101-E0i200701-201205
GREGE,TRIM4#
sub62210-28102
main62210-28102-A0i201305-201605
SHELL,TRIM0#
sub62210-28180
main62210-28102-B0i201305-201605
LT.GRAY,TRIM2#
sub62210-28180
main62210-28111-A0i201204-201306
SHELL,TRIM0#
sub62210-28112
main62210-28111-A0i201204-201306
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,SHELL,TRIM0#
sub62210-28112
main62210-28111-B0i201204-201306
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,LT.GRAY,TRIM2#
sub62210-28112
main62210-28111-B0i201204-201306
LT.GRAY,TRIM2#
sub62210-28112
main62210-28111-E0i200812-201204
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#
sub62210-28112
main62210-28111-E0i200812-201204
GREGE,TRIM4#
sub62210-28112
main62210-28112-A0i201307-201605
SHELL,TRIM0#
main62210-28112-A0i201307-201605
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,SHELL,TRIM0#
main62210-28112-B0i201307-201605
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,LT.GRAY,TRIM2#
main62210-28112-B0i201307-201605
LT.GRAY,TRIM2#
main62210-28180-A0i201605
SHELL,TRIM0#
main62210-28180-B0i201605
LT.GRAY,TRIM2#
main62210-28180-C0i201605
BLACK,TRIM2#
main62210-28190-A0i201605
SHELL,TRIM0#
main62210-28190-A0i201605
SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE,SHELL,TRIM0#
main62210-28190-B0i201605
LT.GRAY,TRIM2#
main62210-28190-B0i201605
SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE,LT.GRAY,TRIM2#
main62210-28190-C0i201605
SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE,BLACK,TRIM2#
main62210-28190-C0i201605-201906
BLACK,TRIM2#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main90467-10161i200601-201605
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
main90467-10161i200812-201204
SRS AIR BAG-WITH(DRIVER & PASSENGER)
main90467-10161i201204-201906
main90467-10161i201605
SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE
62211TCLIP(FOR FRONT PILLAR GARNISH)
main62217-20010i200812-201605
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE
main62217-20010i201204-201906
main62217-20010i201605
SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE
main90467-10167i200601-201605
main90467-10167i200812-201204
SRS AIR BAG-WITH(DRIVER & PASSENGER)
62212GARNISH, FRONT PILLAR, LH
main62220-28060-B0i200601-200701
LT.GRAY,TRIM1#
sub62220-28120
main62220-28060-E0i200601-200701
GREGE,TRIM4#
sub62220-28120
main62220-28101-A0i201204-201304
SHELL,TRIM0#
sub62220-28102
main62220-28101-B0i201204-201304
LT.GRAY,TRIM2#
sub62220-28102
main62220-28101-B0i200701-201205
LT.GRAY,TRIM1#
sub62220-28102
main62220-28101-E0i200812-201204
SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
sub62220-28102
main62220-28101-E0i200701-201205
GREGE,TRIM4#
sub62220-28102
main62220-28102-A0i201305-201605
SHELL,TRIM0#
sub62220-28180
main62220-28102-B0i201305-201605
LT.GRAY,TRIM2#
sub62220-28180
main62220-28111-A0i201204-201306
SHELL,TRIM0#
sub62220-28112
main62220-28111-A0i201204-201306
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,SHELL,TRIM0#
sub62220-28112
main62220-28111-B0i201204-201306
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,LT.GRAY,TRIM2#
sub62220-28112
main62220-28111-B0i201204-201306
LT.GRAY,TRIM2#
sub62220-28112
main62220-28111-E0i200812-201204
GREGE,TRIM4#
sub62220-28112
main62220-28111-E0i200812-201204
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#
sub62220-28112
main62220-28112-A0i201307-201605
SHELL,TRIM0#
main62220-28112-A0i201307-201605
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,SHELL,TRIM0#
main62220-28112-B0i201307-201605
LT.GRAY,TRIM2#
main62220-28112-B0i201307-201605
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,LT.GRAY,TRIM2#
main62220-28180-A0i201605
SHELL,TRIM0#
main62220-28180-B0i201605
LT.GRAY,TRIM2#
main62220-28180-C0i201605
BLACK,TRIM2#
main62220-28190-A0i201605
SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE,SHELL,TRIM0#
main62220-28190-A0i201605
SHELL,TRIM0#
main62220-28190-B0i201605
LT.GRAY,TRIM2#
main62220-28190-B0i201605
SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE,LT.GRAY,TRIM2#
main62220-28190-C0i201605-201906
BLACK,TRIM2#
main62220-28190-C0i201605
SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE,BLACK,TRIM2#
62225AGARNISH, FRONT PILLAR, LOWER RH
main62225-28030-B0i200601-200612
LT.GRAY,TRIM1#
sub62225-28050
main62225-28030-E0i200601-200612
GREGE,TRIM4#
sub62225-28050
main62225-28050-A0i201204-201306
SHELL,TRIM0#
sub62225-28051
main62225-28050-B0i200701-201205
LT.GRAY,TRIM1#
sub62225-28051
main62225-28050-B0i201204-201306
LT.GRAY,TRIM2#
sub62225-28051
main62225-28050-E0i200701-201205
GREGE,TRIM4#
sub62225-28051
main62225-28051-A0i201307-201605
SHELL,TRIM0#
main62225-28051-B0i201307-201605
LT.GRAY,TRIM2#
main62225-28080-A0i201605
SHELL,TRIM0#
main62225-28080-B0i201605
LT.GRAY,TRIM2#
main62225-28080-C0i201605-201906
BLACK,TRIM2#
62226GARNISH, FRONT PILLAR, LOWER LH
main62226-28030-B0i200601-200612
LT.GRAY,TRIM1#
sub62226-28050
main62226-28030-E0i200601-200612
GREGE,TRIM4#
sub62226-28050
main62226-28050-A0i201204-201306
SHELL,TRIM0#
sub62226-28051
main62226-28050-B0i200701-201205
LT.GRAY,TRIM1#
sub62226-28051
main62226-28050-B0i201204-201306
LT.GRAY,TRIM2#
sub62226-28051
main62226-28050-E0i200701-201205
GREGE,TRIM4#
sub62226-28051
main62226-28051-A0i201307-201605
SHELL,TRIM0#
main62226-28051-B0i201307-201605
LT.GRAY,TRIM2#
main62226-28080-A0i201605
SHELL,TRIM0#
main62226-28080-B0i201605
LT.GRAY,TRIM2#
main62226-28080-C0i201605-201906
BLACK,TRIM2#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-28100-A0i201204-201605
SHELL,TRIM0#
main62311-28100-B0i200601-200812
GRAY,TRIM1#
main62311-28100-C0i200812-201205
BLACK,TRIM1#
main62311-28100-C0i201204-201906
BLACK,TRIM2#
main62311-28100-E0i200601-201205
GREGE,TRIM4#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-28100-A0i201204-201605
SHELL,TRIM0#
main62312-28100-B0i200601-200812
GRAY,TRIM1#
main62312-28100-C0i201204-201906
BLACK,TRIM2#
main62312-28100-C0i200812-201205
BLACK,TRIM1#
main62312-28100-E0i200601-201205
GREGE,TRIM4#
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main67871-28060-A0i201204-201605
SHELL,TRIM0#
main67871-28060-B0i200601-200812
GRAY,TRIM1#
main67871-28060-C0i201204-201906
BLACK,TRIM2#
main67871-28060-C0i200812-201205
BLACK,TRIM1#
main67871-28060-E0i200601-201205
GREGE,TRIM4#
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main67872-28110-A0i201204-201605
SHELL,TRIM0#
main67872-28110-B0i200601-200812
GRAY,TRIM1#
main67872-28110-C0i201204-201906
BLACK,TRIM2#
main67872-28110-C0i200812-201205
BLACK,TRIM1#
main67872-28110-E0i200601-201205
GREGE,TRIM4#
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
main90467-10161i200601-201906
62411GARNISH, CENTER PILLAR, RH
main62410-28080-B1i200601-200612
LT.GRAY,TRIM1#
sub62410-28100
main62410-28080-E0i200601-200612
GREGE,TRIM4#
sub62410-28100
main62410-28080-E1i200601-200612
GREGE,TRIM45
sub62410-28100
main62410-28100-A0i201204-201306
SHELL,TRIM0#
sub62410-28101
main62410-28100-B0i201204-201306
LT.GRAY,TRIM2#
sub62410-28101
main62410-28100-B0i200701-201205
LT.GRAY,TRIM1#
sub62410-28101
main62410-28100-E0i200701-201205
GREGE,TRIM4#
sub62410-28101
main62410-28101-A0i201307-201512
SHELL,TRIM0#
sub62410-28140
main62410-28101-B0i201307-201512
LT.GRAY,TRIM2#
sub62410-28140
main62410-28130-A0i201605
SHELL,TRIM0#
main62410-28130-B0i201605
LT.GRAY,TRIM2#
main62410-28130-C0i201605-201906
BLACK,TRIM2#
main62410-28140-A0i201601-201605
SHELL,TRIM0#
main62410-28140-B0i201601-201605
LT.GRAY,TRIM2#
62412GARNISH, CENTER PILLAR, LH
main62420-28080-B1i200601-200612
LT.GRAY,TRIM1#
sub62420-28100
main62420-28080-E0i200601-200612
GREGE,TRIM4#
sub62420-28100
main62420-28080-E1i200601-200612
GREGE,TRIM45
sub62420-28100
main62420-28100-A0i201204-201306
SHELL,TRIM0#
sub62420-28101
main62420-28100-B0i200701-201205
LT.GRAY,TRIM1#
sub62420-28101
main62420-28100-B0i201204-201306
LT.GRAY,TRIM2#
sub62420-28101
main62420-28100-E0i200701-201205
GREGE,TRIM4#
sub62420-28101
main62420-28101-A0i201307-201512
SHELL,TRIM0#
sub62420-28140
main62420-28101-B0i201307-201512
LT.GRAY,TRIM2#
sub62420-28140
main62420-28130-A0i201605
SHELL,TRIM0#
main62420-28130-B0i201605
LT.GRAY,TRIM2#
main62420-28130-C0i201605-201906
BLACK,TRIM2#
main62420-28140-A0i201601-201605
SHELL,TRIM0#
main62420-28140-B0i201601-201605
LT.GRAY,TRIM2#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-28080-B0i200601-200612
GRAY,TRIM1#
sub62413-28100
main62413-28080-E0i200601-200612
GREGE,TRIM4#
sub62413-28100
main62413-28100-A0i201204-201605
SHELL,TRIM0#
main62413-28100-B0i200701-200812
GRAY,TRIM1#
main62413-28100-B1i200812-201205
MD.GRAY,TRIM1#
main62413-28100-C0i201204-201906
BLACK,TRIM2#
main62413-28100-E0i200701-201205
GREGE,TRIM4#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-28110-B0i200601-200612
GRAY,TRIM1#
sub62414-28130
main62414-28110-E0i200601-200612
GREGE,TRIM4#
sub62414-28130
main62414-28130-A0i201204-201605
SHELL,TRIM0#
sub62414-28130
main62414-28130-B0i200701-200812
GRAY,TRIM1#
sub62414-28130
main62414-28130-B1i200812-201205
MD.GRAY,TRIM1#
sub62414-28130
main62414-28130-C0i201204-201906
BLACK,TRIM2#
sub62414-28130
main62414-28130-E0i200701-201205
GREGE,TRIM4#
sub62414-28130
62581FCLIP (FOR QUARTER PILLAR GARNISH)
main90467-10161i200601-201906
62638AGARNISH, QUARTER PILLAR, RH
main62638-28190-E0i200601-200612
GREGE,TRIM4#
sub62638-28250
main62638-28200-B0i200601-200612
LT.GRAY,TRIM1#
sub62638-28260
main62638-28200-E0i200601-200612
SIDE LIFT-UP SEAT (OVERSEAS),GREGE,TRIM4#
sub62638-28260
main62638-28200-E0i200601-200612
GREGE,TRIM4#
sub62638-28260
main62638-28250-A0i201204-201306
SHELL,TRIM0#
sub62638-28251
main62638-28250-B0i201204-201306
LT.GRAY,TRIM2#
sub62638-28251
main62638-28250-E0i200701-201205
GREGE,TRIM4#
sub62638-28251
main62638-28250-E0i200812-201204
SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
sub62638-28251
main62638-28251-A0i201307-201605
SHELL,TRIM0#
main62638-28251-B0i201307-201605
LT.GRAY,TRIM2#
main62638-28260-A0i201204-201306
SHELL,TRIM0#
sub62638-28261
main62638-28260-B0i200701-201205
LT.GRAY,TRIM1#
sub62638-28261
main62638-28260-E0i200812-201204
SIDE LIFT-UP SEAT&SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
sub62638-28261
main62638-28260-E0i200701-201205
GREGE,TRIM4#
sub62638-28261
main62638-28260-E0i200701-200812
SIDE LIFT-UP SEAT (OVERSEAS),GREGE,TRIM4#
sub62638-28261
main62638-28260-E0i200812-201204
SIDE LIFT-UP SEAT,GREGE,TRIM4#
sub62638-28261
main62638-28261-A0i201307-201605
SHELL,TRIM0#
main62638-28270-A0i201204-201306
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,SHELL,TRIM0#
sub62638-28271
main62638-28270-A0i201204-201306
SHELL,TRIM0#
sub62638-28271
main62638-28270-B0i201204-201306
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,LT.GRAY,TRIM2#
sub62638-28271
main62638-28270-B0i201204-201306
LT.GRAY,TRIM2#
sub62638-28271
main62638-28270-E0i200812-201204
SIDE LIFT-UP SEAT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#
sub62638-28271
main62638-28270-E0i200812-201204
GREGE,TRIM4#
sub62638-28271
main62638-28270-E0i200812-201204
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#
sub62638-28271
main62638-28271-A0i201307-201605
SHELL,TRIM0#
main62638-28271-A0i201307-201605
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,SHELL,TRIM0#
main62638-28271-B0i201307-201605
LT.GRAY,TRIM2#
main62638-28271-B0i201307-201605
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,LT.GRAY,TRIM2#
main62638-28280-A0i201204-201306
SHELL,TRIM0#
sub62638-28281
main62638-28280-B0i201204-201306
LT.GRAY,TRIM2#
sub62638-28281
main62638-28281-A0i201307-201605
SHELL,TRIM0#
main62638-28281-B0i201307-201605
LT.GRAY,TRIM2#
main62638-28390-A0i201605
SHELL,TRIM0#
main62638-28390-B0i201605
LT.GRAY,TRIM2#
main62638-28390-C0i201605
BLACK,TRIM2#
main62638-28400-A0i201605
SHELL,TRIM0#
main62638-28410-A0i201605
SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE,SHELL,TRIM0#
main62638-28410-A0i201605
SHELL,TRIM0#
main62638-28410-B0i201605
LT.GRAY,TRIM2#
main62638-28410-B0i201605
SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE,LT.GRAY,TRIM2#
main62638-28410-C0i201605
SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE,BLACK,TRIM2#
main62638-28410-C0i201605-201906
BLACK,TRIM2#
main62638-28420-C0i201605
BLACK,TRIM2#
62639AGARNISH, QUARTER PILLAR, LH
main62639-28220-E0i200601-200612
GREGE,TRIM4#
sub62639-28290
main62639-28230-A0i201204-201306
SHELL,TRIM0#
sub62639-28231
main62639-28230-B0i200601-201205
LT.GRAY,TRIM1#
sub62639-28231
main62639-28230-E0i200601-201205
GREGE,TRIM4#
sub62639-28231
main62639-28230-E0i200812-201205
SIDE LIFT-UP SEAT,GREGE,TRIM4#
sub62639-28231
main62639-28230-E0i200601-200812
SIDE LIFT-UP SEAT (OVERSEAS),GREGE,TRIM4#
sub62639-28231
main62639-28231-A0i201307-201605
SHELL,TRIM0#
main62639-28250-A0i201204-201306
SHELL,TRIM0#
sub62639-28251
main62639-28250-B0i201204-201306
LT.GRAY,TRIM2#
sub62639-28251
main62639-28251-A0i201307-201605
SHELL,TRIM0#
main62639-28251-B0i201307-201605
LT.GRAY,TRIM2#
main62639-28290-A0i201204-201306
SHELL,TRIM0#
sub62639-28291
main62639-28290-B0i201204-201306
LT.GRAY,TRIM2#
sub62639-28291
main62639-28290-E0i200812-201204
SIDE LIFT-UP SEAT&SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
sub62639-28291
main62639-28290-E0i200701-201205
GREGE,TRIM4#
sub62639-28291
main62639-28290-E0i200812-201204
SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
sub62639-28291
main62639-28291-A0i201307-201605
SHELL,TRIM0#
main62639-28291-B0i201307-201605
LT.GRAY,TRIM2#
main62639-28300-A0i201204-201306
SHELL,TRIM0#
sub62639-28301
main62639-28300-A0i201204-201306
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,SHELL,TRIM0#
sub62639-28301
main62639-28300-B0i201204-201306
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,LT.GRAY,TRIM2#
sub62639-28301
main62639-28300-B0i201204-201306
LT.GRAY,TRIM2#
sub62639-28301
main62639-28300-E0i200812-201204
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#
sub62639-28301
main62639-28300-E0i200812-201204
SIDE LIFT-UP SEAT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#
sub62639-28301
main62639-28300-E0i200812-201204
GREGE,TRIM4#
sub62639-28301
main62639-28301-A0i201307-201605
SHELL,TRIM0#
main62639-28301-A0i201307-201605
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,SHELL,TRIM0#
main62639-28301-B0i201307-201605
LT.GRAY,TRIM2#
main62639-28301-B0i201307-201605
SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,LT.GRAY,TRIM2#
main62639-28410-A0i201605
SHELL,TRIM0#
main62639-28410-B0i201605
LT.GRAY,TRIM2#
main62639-28410-C0i201605
BLACK,TRIM2#
main62639-28420-A0i201605
SHELL,TRIM0#
main62639-28430-A0i201605
SHELL,TRIM0#
main62639-28430-A0i201605
SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE,SHELL,TRIM0#
main62639-28430-B0i201605
LT.GRAY,TRIM2#
main62639-28430-B0i201605
SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE,LT.GRAY,TRIM2#
main62639-28430-C0i201605
SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE,BLACK,TRIM2#
main62639-28430-C0i201605-201906
BLACK,TRIM2#
main62639-28440-C0i201605
BLACK,TRIM2#
67887LWEATHERSTRIP, SLIDE DOOR, NO.2 RH
main67887-28090i200601-201906
67888LWEATHERSTRIP, REAR DOOR, NO.2 LH
main67888-28100i200601-201906
67911APLATE, REAR DOOR SCUFF, RH
main67933-28020-A0i201204-201605
SHELL,TRIM0#
main67933-28020-B0i200601-200812
GRAY,TRIM1#
main67933-28020-B1i200812-201205
MD.GRAY,TRIM1#
main67933-28020-C0i201204-201605
BLACK,TRIM2#
main67933-28020-E0i200812-201204
SIDE LIFT-UP SEAT,GREGE,TRIM4#
main67933-28020-E0i200601-201205
GREGE,TRIM4#
main67933-28020-E0i200601-200812
SIDE LIFT-UP SEAT (OVERSEAS),GREGE,TRIM4#
main67933-28030-A0i201204-201605
SHELL,TRIM0#
main67933-28030-C0i201204-201906
BLACK,TRIM2#
main67933-28030-E0i200601-201205
GREGE,TRIM4#
67913BPLATE, FRONT DOOR SCUFF, RH
main67913-28050-B0i200601-200612
GRAY,TRIM1#
sub67913-28070
main67913-28050-E0i200601-200612
GREGE,TRIM4#
sub67913-28070
main67913-28070-A0i201204-201305
SHELL,TRIM0#
sub67913-28071
main67913-28070-B0i200701-200812
GRAY,TRIM1#
sub67913-28071
main67913-28070-B1i200812-201205
MD.GRAY,TRIM1#
sub67913-28071
main67913-28070-C0i201204-201305
BLACK,TRIM2#
sub67913-28071
main67913-28070-E0i200701-201205
GREGE,TRIM4#
sub67913-28071
main67913-28071-A0i201306-201605
SHELL,TRIM0#
main67913-28071-C0i201306-201906
BLACK,TRIM2#
67914BPLATE, FRONT DOOR SCUFF, LH
main67914-28050-B0i200601-200612
GRAY,TRIM1#
sub67914-28070
main67914-28050-E0i200601-200612
GREGE,TRIM4#
sub67914-28070
main67914-28070-A0i201204-201305
SHELL,TRIM0#
sub67914-28071
main67914-28070-B0i200701-200812
GRAY,TRIM1#
sub67914-28071
main67914-28070-B1i200812-201205
MD.GRAY,TRIM1#
sub67914-28071
main67914-28070-C0i201204-201305
BLACK,TRIM2#
sub67914-28071
main67914-28070-E0i200701-201205
GREGE,TRIM4#
sub67914-28071
main67914-28071-A0i201306-201605
SHELL,TRIM0#
main67914-28071-C0i201306-201906
BLACK,TRIM2#
67917CPLATE, REAR DOOR SCUFF, RH
main67917-28110-B0i200601-200604
GRAY,TRIM1#
sub67917-28111
main67917-28110-E0i200601-200604
GREGE,TRIM4#
sub67917-28111
main67917-28111-B0i200605-200612
GRAY,TRIM1#
sub67917-28140
main67917-28111-E0i200605-200612
GREGE,TRIM4#
sub67917-28140
main67917-28140-A0i201204-201605
SHELL,TRIM0#
main67917-28140-B0i200701-200812
GRAY,TRIM1#
main67917-28140-B1i200812-201205
MD.GRAY,TRIM1#
main67917-28140-C0i201204-201906
BLACK,TRIM2#
main67917-28140-E0i200701-201205
GREGE,TRIM4#
67918DPLATE, REAR DOOR SCUFF, LH
main67934-28020-A0i201204-201605
SHELL,TRIM0#
main67934-28020-B0i200601-200812
GRAY,TRIM1#
main67934-28020-B1i200812-201205
MD.GRAY,TRIM1#
main67934-28020-C0i201204-201605
BLACK,TRIM2#
main67934-28020-E0i200601-201205
GREGE,TRIM4#
main67934-28020-E0i200812-201205
SIDE LIFT-UP SEAT,GREGE,TRIM4#
main67934-28020-E0i200601-200812
SIDE LIFT-UP SEAT (OVERSEAS),GREGE,TRIM4#
main67934-28030-A0i201204-201605
SHELL,TRIM0#
main67934-28030-C0i201204-201906
BLACK,TRIM2#
main67934-28030-E0i200601-201205
GREGE,TRIM4#
67918EPLATE, REAR DOOR SCUFF, LH
main67918-28100-B0i200601-200604
GRAY,TRIM1#
sub67918-28101
main67918-28100-E0i200601-200604
GREGE,TRIM4#
sub67918-28101
main67918-28101-B0i200605-200612
GRAY,TRIM1#
sub67918-28140
main67918-28101-E0i200605-200612
GREGE,TRIM4#
sub67918-28140
main67918-28140-A0i201204-201605
SHELL,TRIM0#
main67918-28140-B0i200701-200812
GRAY,TRIM1#
main67918-28140-B1i200812-201205
MD.GRAY,TRIM1#
main67918-28140-C0i201204-201906
BLACK,TRIM2#
main67918-28140-E0i200701-201205
GREGE,TRIM4#
67923CCLAMP, DOOR SCUFF PLATE, NO.1
main67923-28030i200601-201906
67924ACLAMP, DOOR SCUFF PLATE, NO.2
main67924-28010i200601-201906
7152
7455
6218928020PLATE, REAR FLOOR SIDE BOARD SET, REAR LH
main62189-28020
6218933010PLATE, REAR FLOOR SIDE BOARD SET, REAR LH
main62189-33010
6777128150WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-28150
6792328020CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-28020
9011906869
main90119-06869
9046709225
main90467-09225
9046710188
main90467-10188

42 parts on this diagram · 2 diagrams in section
