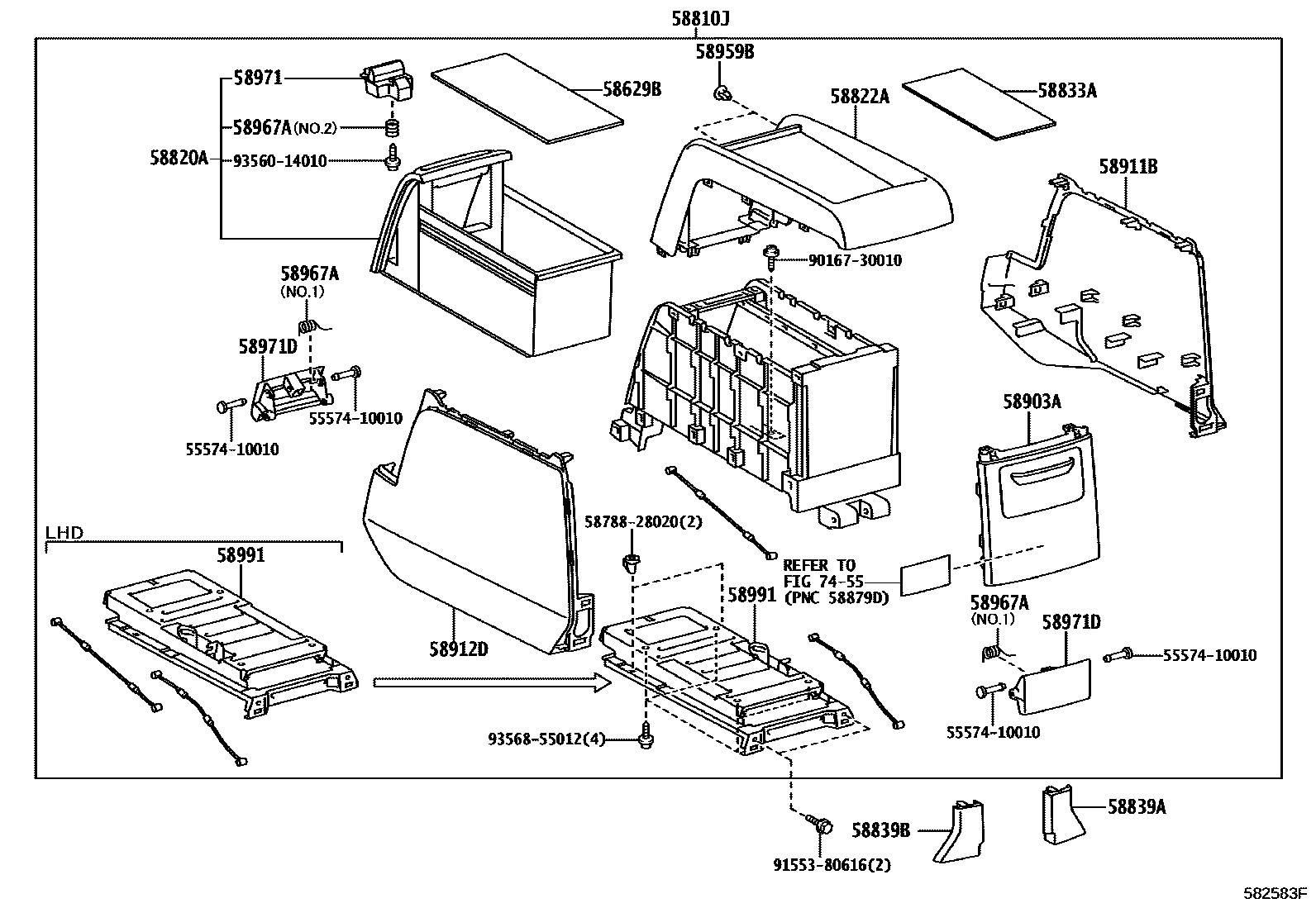

CONSOLE BOX & BRACKET

58629BMAT, CENTER CONSOLE

main58629-28010iACR50,GSR50..GL200604-200812

SIDE LIFT-UP SEAT (OVERSEAS)

main58629-28010iACR50..GL;GSR50..LHD200812-201205

SIDE LIFT-UP SEAT

main58629-28010iACR50,GSR50..07S201204-201910

main58629-28010-E0iACR50..GL200601-200604

GREGE,TRIM4#

sub58629-28010

main58629-28010-E0iACR50..GL200601-200604

SIDE LIFT-UP SEAT (OVERSEAS),GREGE,TRIM4#

sub58629-28010

58810JBOX ASSY, CONSOLE

main58810-28360-E0iACR50,GSR50..RHD..GL200601-200812

GREGE,TRIM4#

main58810-28360-E0iACR50,GSR50..RHD..GL200601-200812

SIDE LIFT-UP SEAT (OVERSEAS),GREGE,TRIM4#

main58810-28370-E0iACR50,GSR50..LHD..GL200601-200812

GREGE,TRIM4#

main58810-28370-E0iACR50,GSR50..LHD..GL200601-200812

SIDE LIFT-UP SEAT (OVERSEAS),GREGE,TRIM4#

main58810-28400-E0iACR50..RHD..GL200812-201205

GREGE,TRIM4#

main58810-28400-E0iACR50..RHD..GL200812-201205

SIDE LIFT-UP SEAT,GREGE,TRIM4#

main58810-28460-A0iACR50,GSR50..RHD..GL201204-201602

SHELL,TRIM0#

sub58810-28570

main58810-28460-C1iACR50..AERAS201205-201602

BLACK,TRIM2#

sub58810-28570

main58810-28470-A0iACR50,GSR50..LHD..GL201204-201602

SHELL,TRIM0#

sub58810-28560

main58810-28470-C0iACR50..LHD..CVT;GSR50..LHD..GEN201204-201602

BLACK,TRIM2#

sub58810-28560

main58810-28540-E0iACR50,GSR50..LHD..GL200812-201204

SIDE LIFT-UP SEAT,GREGE,TRIM4#

sub58810-28541

main58810-28540-E0iACR50,GSR50..LHD..GL200812-201204

GREGE,TRIM4#

sub58810-28541

main58810-28560-A0iACR50,GSR50..LHD..GL201603-201910

SHELL,TRIM0#

main58810-28560-C0iGSR50..GEN;ACR50..LHD..CVT201603-201910

BLACK,TRIM2#

main58810-28570-A0iACR50,GSR50..RHD..GL201603-201605

SHELL,TRIM0#

main58810-28570-C0iACR50..AERAS201603-201605

BLACK,TRIM2#

main58810-28580-C0iACR50,GSR50..RHD..07S201605-201910

BLACK,TRIM2#

58820ABOX ASSY, CONSOLE COMPARTMENT

main58820-28030-A0iACR50,GSR50..GL201204-201910

SHELL,TRIM0#

main58820-28030-C0iGSR50..GL;ACR50..07S..CVT;ACR50..RHD..4FC201204-201910

BLACK,TRIM2#

main58820-28030-E0iACR50..GL;GSR50..LHD200601-201205

GREGE,TRIM4#

main58820-28030-E0iACR50..GL;GSR50..LHD200812-201205

SIDE LIFT-UP SEAT,GREGE,TRIM4#

main58820-28030-E0iACR50,GSR50..GL200601-200812

SIDE LIFT-UP SEAT (OVERSEAS),GREGE,TRIM4#

58822APANEL, CONSOLE, UPPER REAR

main58822-28020-A0iACR50,GSR50..LHD..GL201204-201910

SHELL,TRIM0#

main58822-28020-C0iACR50..AERAS;ACR50..LHD..CVT;GSR50..LHD..GEN201204-201910

BLACK,TRIM2#

main58822-28020-E0iACR50..GL;GSR50..LHD200812-201205

SIDE LIFT-UP SEAT,GREGE,TRIM4#

main58822-28020-E0iACR50..GL;GSR50..LHD200601-201205

GREGE,TRIM4#

main58822-28020-E0iACR50,GSR50..GL200601-200812

SIDE LIFT-UP SEAT (OVERSEAS),GREGE,TRIM4#

58833ACOVER, CONSOLE, UPPER

main58833-28040iACR50,GSR50..GL..(GCC,GEN)200601-200812

SIDE LIFT-UP SEAT (OVERSEAS)

main58833-28070iACR50..GL;GSR50..LHD200812-201205

SIDE LIFT-UP SEAT

main58833-28090-E0iGSR50..GEN;ACR50..LHD..CVT201204-201910

BROWN,TRIM0#,2#

main58833-28090-E0iACR50..LHD..CVT;GSR50..LHD..GEN201204-201910

BROWN,TRIM0#

main58833-28090-E0iACR50..AERAS201205-201605

BROWN,TRIM2#

main58833-28100-C0iACR50,GSR50..RHD..07S201605-201910

BLACK MC.,TRIM2#

58839ACOVER, CONSOLE BOX HOLE

main58839-28050-A0iACR50,GSR50..GL201204-201910

SHELL,TRIM0#

sub58839-28050

main58839-28050-C0iACR50..AERAS;ACR50..LHD..CVT;GSR50..LHD..GEN201204-201910

BLACK,TRIM2#

sub58839-28050

main58839-28050-E0iACR50..GL;GSR50..LHD200601-201205

GREGE,TRIM4#

sub58839-28050

main58839-28050-E0iACR50..GL;GSR50..LHD200812-201205

SIDE LIFT-UP SEAT,GREGE,TRIM4#

sub58839-28050

main58839-28050-E0iACR50,GSR50..GL200601-200812

SIDE LIFT-UP SEAT (OVERSEAS),GREGE,TRIM4#

sub58839-28050

58839BCOVER, CONSOLE BOX HOLE, NO.2

main58839-28060-A0iACR50,GSR50..LHD..GL201204-201910

SHELL,TRIM0#

sub58839-28060

main58839-28060-C0iGSR50..GL;ACR50..07S..CVT;ACR50..RHD..4FC201204-201910

BLACK,TRIM2#

sub58839-28060

main58839-28060-E0iGSR50..RHD..GL200812-201205

SIDE LIFT-UP SEAT,GREGE,TRIM4#

sub58839-28060

main58839-28060-E0iACR50,GSR50..GL200601-201205

GREGE,TRIM4#

sub58839-28060

main58839-28060-E0iACR50,GSR50..GL200601-200812

SIDE LIFT-UP SEAT (OVERSEAS),GREGE,TRIM4#

sub58839-28060

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-28030-A0iACR50,GSR50..LHD..GL201204-201910

SHELL,TRIM0#

main58903-28030-C0iGSR50..GL;ACR50..07S..CVT;ACR50..RHD..4FC201204-201910

BLACK,TRIM2#

main58903-28030-E0iGSR50..RHD..GL200601-201205

GREGE,TRIM4#

main58903-28030-E0iGSR50..RHD..GL200812-201205

SIDE LIFT-UP SEAT,GREGE,TRIM4#

main58903-28030-E0iACR50,GSR50..GL200601-200812

SIDE LIFT-UP SEAT (OVERSEAS),GREGE,TRIM4#

58911BPANEL, BOX, NO.1

main58911-28120-A0iACR50,GSR50..LHD..GL201204-201910

SHELL,TRIM0#

main58911-28120-C0iGSR50..GL;ACR50..07S..CVT;ACR50..RHD..4FC201204-201910

BLACK,TRIM2#

main58911-28120-E0iACR50..GL;GSR50..LHD200812-201205

SIDE LIFT-UP SEAT,GREGE,TRIM4#

main58911-28120-E0iACR50,GSR50..GL200601-201205

GREGE,TRIM4#

main58911-28120-E0iACR50,GSR50..GL200601-200812

SIDE LIFT-UP SEAT (OVERSEAS),GREGE,TRIM4#

58912DPANEL, BOX, NO.2

main58912-28010-A0iACR50,GSR50..GL201204-201910

SHELL,TRIM0#

main58912-28010-C0iACR50..AERAS;ACR50..LHD..CVT;GSR50..LHD..GEN201204-201910

BLACK,TRIM2#

main58912-28010-E0iACR50..GL;GSR50..LHD200601-201205

GREGE,TRIM4#

main58912-28010-E0iACR50..GL;GSR50..LHD200812-201205

SIDE LIFT-UP SEAT,GREGE,TRIM4#

main58912-28010-E0iACR50,GSR50..GL200601-200812

SIDE LIFT-UP SEAT (OVERSEAS),GREGE,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iACR50,GSR50..GL200601-200812

SIDE LIFT-UP SEAT (OVERSEAS)

main58959-60060iACR50..GL;GSR50..LHD200812-201205

SIDE LIFT-UP SEAT

main58959-60060iACR50,GSR50..07S201204-201910

58967ASPRING, CONSOLE DOOR STOPPER

main58967-28020iACR50..GL;GSR50..LHD200812-201205

SIDE LIFT-UP SEAT,NO.1

main58967-28020iACR50,GSR50..GL200601-201910

NO.1

main58967-28030iGSR50..RHD..GL200601-201910

NO.2

58971LOCK, CONSOLE COMPARTMENT DOOR

main58992-28040-A0iACR50,GSR50..GL201204-201910

SHELL,TRIM0#

main58992-28040-C0iACR50..AERAS;ACR50..LHD..CVT;GSR50..LHD..GEN201204-201910

BLACK,TRIM2#

main58992-28040-E0iGSR50..RHD..GL200812-201205

SIDE LIFT-UP SEAT,GREGE,TRIM4#

main58992-28040-E0iGSR50..RHD..GEN200601-201205

GREGE,TRIM4#

main58992-28040-E0iACR50,GSR50..GL200601-200812

SIDE LIFT-UP SEAT (OVERSEAS),GREGE,TRIM4#

58971DLEVER, CONSOLE COMPARTMENT DOOR LOCK

main58971-28010-A0iACR50,GSR50..LHD..GL201204-201910

SHELL,TRIM0#

main58971-28010-C0iGSR50..GL;ACR50..07S..CVT;ACR50..RHD..4FC201204-201910

BLACK,TRIM2#

main58971-28010-E0iGSR50..RHD..GEN200601-201205

GREGE,TRIM4#

main58971-28010-E0iACR50,GSR50..GL200601-200812

SIDE LIFT-UP SEAT (OVERSEAS),GREGE,TRIM4#

main58971-28010-E0iACR50..GL;GSR50..LHD200812-201205

SIDE LIFT-UP SEAT,GREGE,TRIM4#

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-28030iACR50..RHD..GL200812-201205

SIDE LIFT-UP SEAT

main58991-28030iACR50,GSR50..RHD..07S201204-201910

main58991-28030iACR50,GSR50..RHD..GL200601-200812

SIDE LIFT-UP SEAT (OVERSEAS)

main58992-28030iACR50,GSR50..LHD..GL201204-201910

main58992-28030iACR50,GSR50..LHD..GL200601-200812

SIDE LIFT-UP SEAT (OVERSEAS)

main58992-28030iACR50,GSR50..LHD..GL200812-201204

SIDE LIFT-UP SEAT

7455

5557410010SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010

5878828020BRACKET, JACK HANDLE SUPPORT

main58788-28020

9016730010

main90167-30010

9155380616

main91553-80616

9356014010

main93560-14010

9356855012

main93568-55012

22 parts on this diagram · 1 diagram in section
