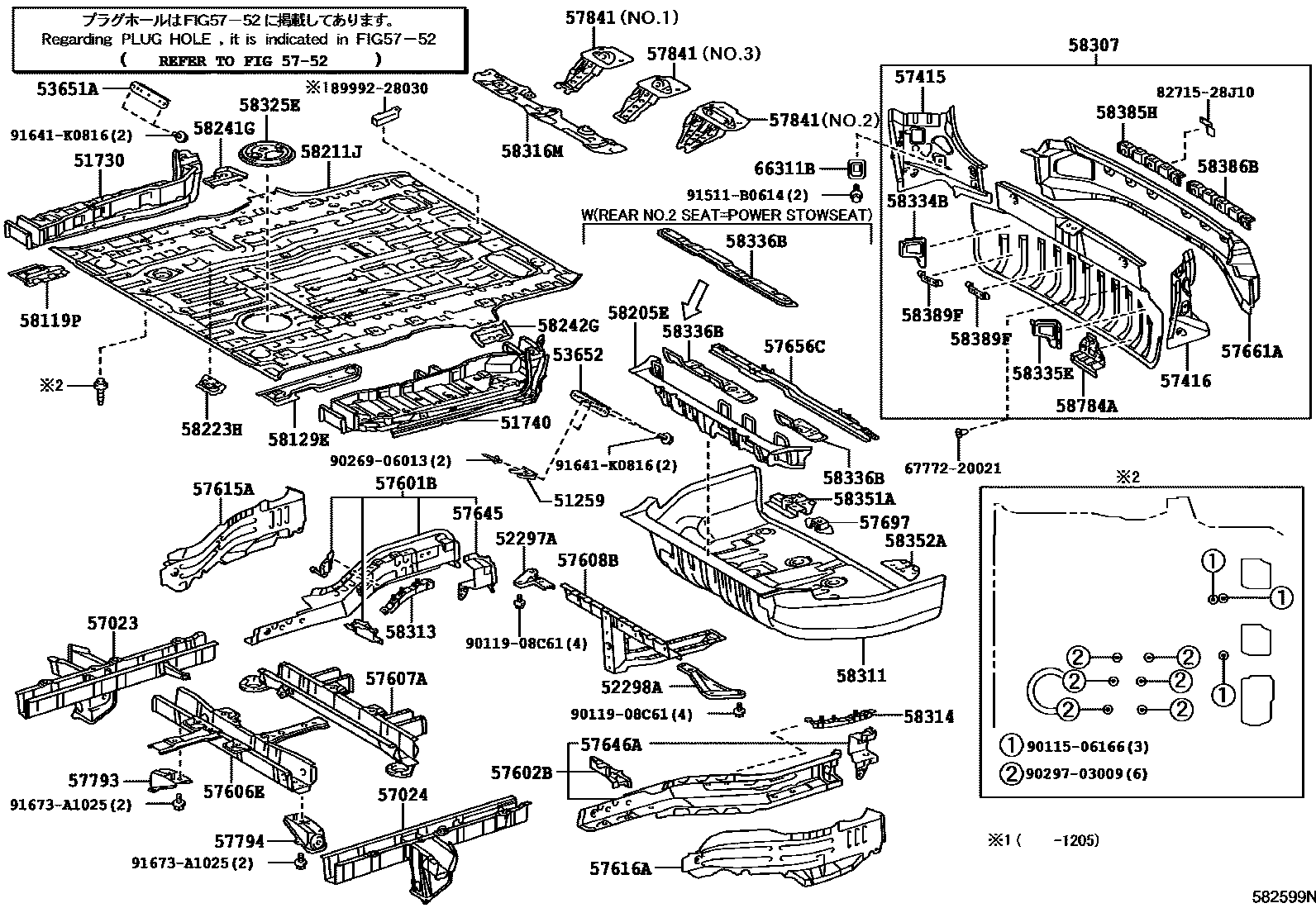

51259PROTECTOR, REAR SUSPENSION MEMBER EDGE

main51259-28010i200812-201204

51730STEP ASSY, REAR FLOOR, RH

main51730-28110supersedes 51730-28120i200601-200812

main51730-28120supersedes 51730-28110i201204-201605

HEADLAMP-DISCHARGE & AFS; SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

51740STEP ASSY, REAR FLOOR, LH

main51740-28110i201605

main51740-28120i200812-201204

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH); SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

52297ABRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-28010i200601-200812

52298ABRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-28010i200601-200812

53651ABRACE, REAR SUSPENSION, UPPER RH

main53651-28010i200601-200812

53652BRACE, REAR SUSPENSION, UPPER LH

main53651-28010i200601-200812

57023MEMBER SUB-ASSY, REAR SIDE, RH

main57023-28480i201204-201409

main57023-28490i201204-201605

57024MEMBER SUB-ASSY, REAR SIDE, LH

main57024-28490i200601-200812

main57024-28500i201605

57415RAIL, FLOOR SIDE, REAR RH

main57415-28120i200812-201205

57416RAIL, FLOOR SIDE, REAR LH

main57416-28110i201204-201409

5752HOLE PLUG

→ Go to FIG 57-52

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-28090i200812-201205

main57601-28100i200601-200812

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-28080i201605-201906

main57602-28090i200812-201205

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-28800i200601-200812

main57606-28810i201605

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-28420i200812-201204

main57607-28430i201204-201605

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-28230i200812-201204

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-28060i200601-200812

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-28050i201605-201906

57645REINFORCEMENT, REAR SIDE MEMBER, RH

main57645-28070i200601-200812

main57801-28050i200601-200812

57646AREINFORCEMENT, REAR SIDE MEMBER, LH

main57646-28040i200601-200812

main57802-28020i200601-200812

57656CMEMBER, REAR FLOOR CROOS, NO.5

main57656-28060i201204-201605

main57656-28070supersedes 57656-28060i200812-201204

57661APANEL, REAR FLOOR REAR CROSS, OUTER

main57661-28030i201605

57697RETAINER, REAR SEAT CUSHION

main57697-28020×2i201003-201204

57793BRACKET, REAR SUSPENSION ARM, REAR RH NO.1

main57793-28030i200601-200812

main57793-28031i201605

57794BRACKET, REAR SUSPENSION ARM, REAR LH NO.1

main57794-28030i200812-201107

main57794-28031i201204-201605

57841REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH

main57841-28050×2i201204-201605

NO.1

main57841-28070supersedes 57841-28110i201205-201409

NO.2

main57841-28080i201204-201605

BEIJING SPEC&SPARE TIRE-GROUND TIRE&REAR NO.2 SEAT-WITH(TUMBLE ONLY)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,NO.1; CHINA SPEC&SPARE TIRE-GROUND TIRE&REAR NO.2 SEAT-WITH(TUMBLE ONLY)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,NO.1; NO.1

main57841-28090i200812-201204

NO.2

main57841-28100supersedes 57841-28110i201204-201605

BEIJING SPEC&SPARE TIRE-GROUND TIRE&REAR NO.2 SEAT-WITH(TUMBLE ONLY)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,NO.3; CHINA SPEC&SPARE TIRE-GROUND TIRE&REAR NO.2 SEAT-WITH(TUMBLE ONLY)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,NO.3; NO.3

main57841-28110supersedes 57841-28100i201204-201605

NO.2

58119PPLATE, FRONT FLOOR SIDE, RH

main58119-28030i201605

58129EPLATE, FRONT FLOOR SIDE, LH

main58129-28030i201204-201605

58205EREINFORCE SUB-ASSY, REAR SEAT HINGE

main58205-28020i201008-201205

main58205-28030supersedes 58205-28040i201205-201409

main58205-28040supersedes 58205-28020i201605

58211JPAN, CENTER FLOOR

main58211-28041i201605

main58211-28091i201204-201409

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main58211-28101supersedes 58211-28041i201605

SRS AIR BAG-*DRS & *PAS & *CUSA & SIDE & KNEE

main58211-28111i201205-201605

main58211-28270i201204-201605

main58211-28280supersedes 58211-28270i201605

main58211-28030i200706-200708

TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE TIRE-T145 90D16&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS&REAR NO.2 SEAT-WITH(CENTER ARM REST & STOW)

main58211-28031supersedes 58211-28041i201011-201205

SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(POWER STOW); SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(STOW)

main58211-28040supersedes 58211-28101i200601-200708

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS; HEAD LAMP-DISCHARGE + AFS

main58211-28090i200706-200708

TAIWAN SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SPARE TIRE-T145 90D16&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS&REAR NO.2 SEAT-WITH(CENTER ARM REST & STOW)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main58211-28100supersedes 58211-28101i200601-200708

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE; HEAD LAMP-DISCHARGE + AFS&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main58211-28120supersedes 58211-28061i200601-200708

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main58211-28121supersedes 58211-28061i200812-201204

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main58211-28190i200706-200708

HONG KONG SPEC&SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & POWER STOW); HONG KONG SPEC&SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & STOW)

main58211-28191i200709-200812

HONG KONG SPEC&SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & POWER STOW); HONG KONG SPEC&SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & STOW); SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & POWER STOW); SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & STOW); TAIWAN SPEC&SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & STOW)

main58211-28201i200812-201204

EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN&SRS AIR BAG-WITH(DRIVER & PASSENGER); EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN&SRS AIR BAG-WITH(DRIVER & PASSENGER); GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN&SRS AIR BAG-WITH(DRIVER & PASSENGER); GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN&SRS AIR BAG-WITH(DRIVER & PASSENGER); HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN&SRS AIR BAG-WITH(DRIVER & PASSENGER); HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN&SRS AIR BAG-WITH(DRIVER & PASSENGER); JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN&SRS AIR BAG-WITH(DRIVER & PASSENGER); JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN&SRS AIR BAG-WITH(DRIVER & PASSENGER); PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN&SRS AIR BAG-WITH(DRIVER & PASSENGER); PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN&SRS AIR BAG-WITH(DRIVER & PASSENGER); SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN&SRS AIR BAG-WITH(DRIVER & PASSENGER); SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN&SRS AIR BAG-WITH(DRIVER & PASSENGER); VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN&SRS AIR BAG-WITH(DRIVER & PASSENGER); VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN&SRS AIR BAG-WITH(DRIVER & PASSENGER)

main58211-28210i200706-200708

HONG KONG SPEC&SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & POWER STOW)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE; HONG KONG SPEC&SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & STOW)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main58211-28211supersedes 58211-28101i200709-200812

HONG KONG SPEC&SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & POWER STOW)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE; HONG KONG SPEC&SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & STOW)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE; SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & POWER STOW)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE; SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & STOW)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE; TAIWAN SPEC&SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & STOW)&SRSAIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main58211-28220supersedes 58211-28201i200601-200708

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main58211-28221i200812-201204

EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN; EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN; GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN; GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN; HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN; HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN; JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN; JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN; PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN; PHILIPPINES SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN; SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN; SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN; SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE; VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN; VENEZUELA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main58211-28230i200601-200708

TAIWAN SPEC&SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & STOW)

main58211-28231i200812-201205

SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(STOW)

main58211-28240supersedes 58211-28111i200611-200708

SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & STOW)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

main58211-28241i200709-200812

SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & STOW)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE; TAIWAN SPEC&SPARE TIRE-T145 90D16&REAR NO.2 SEAT-WITH(CENTER ARM REST & STOW)&SRSAIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

58223HREINFORCEMENT, FLOOR PANEL SIDE, RH

main58223-28030i200812-201205

58241GPANEL, FLOOR SIDE, RH

main58241-28010i200601-200708

58242GPANEL, FLOOR SIDE, LH

main58242-28010i200601-200708

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-28110i200812-201205

58311PAN, REAR FLOOR

main58311-2J870i200601-200812

58313PANEL, REAR FLOOR SIDE, RH

main58313-28040i200601-200812

58314PANEL, REAR FLOOR SIDE, LH

main58314-28020i200601-200812

58316MRETAINER, REAR SEAT ANCHOR

main58316-28060i201204-201605

BEIJING SPEC&SPARE TIRE-GROUND TIRE&REAR NO.2 SEAT-WITH(TUMBLE ONLY)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE; CHINA SPEC&SPARE TIRE-GROUND TIRE&REAR NO.2 SEAT-WITH(TUMBLE ONLY)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-28090i200601-200812

58334BPLATE, REAR FLOOR CROSSMEMBER, CENTER RH

main58334-28010i200812-201204

58335EPLATE, REAR FLOOR CROSSMEMBER, CENTER LH

main58335-28030i201605

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-28040i201008-201205

RH

main58336-28050supersedes 58337-28030i201605

REAR NO.2 SEAT-WITH(POWER STOW)

main58337-28030i201008-201205
