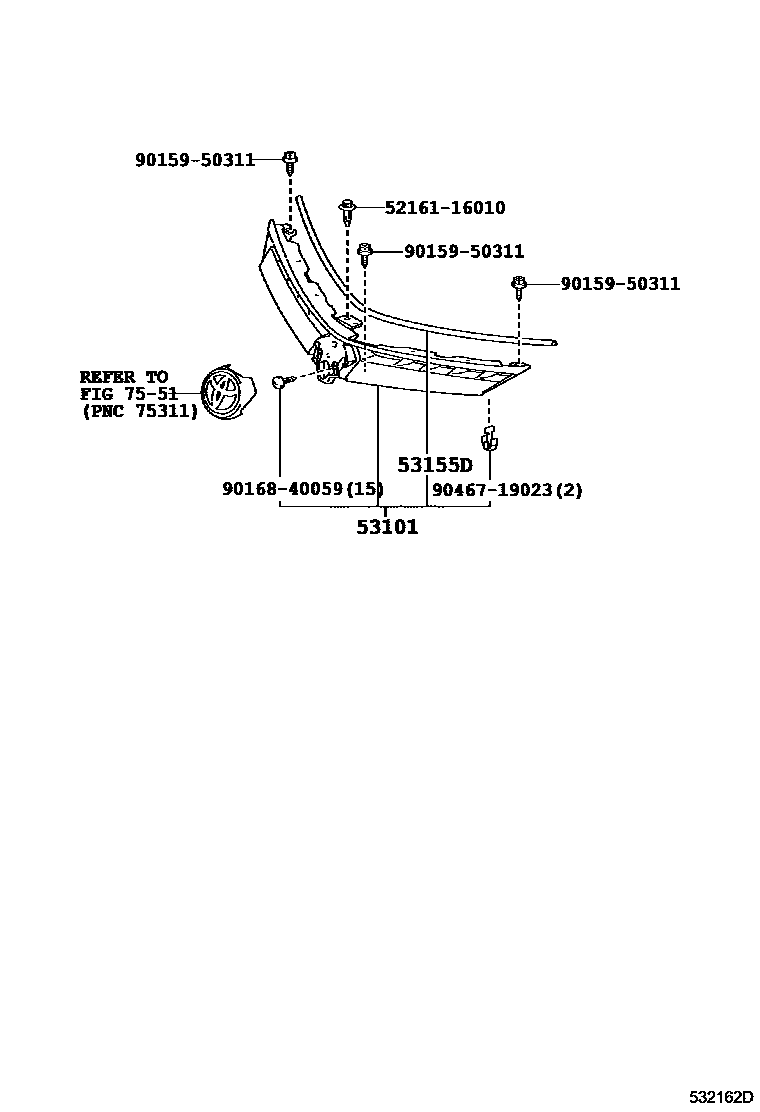

RADIATOR GRILLE

0001 1 0002 1 0003 1 0004 1

53101GRILLE SUB-ASSY, RADIATOR

main53101-28260iACR50,GSR50200601-200812

NO PAINT REQ.

main53101-28381-A0iACR50..AERAS201205-201605

WHITE PEARL CS.,070

main53101-28381-B0iACR50..AERAS201205-201605

SILVER ME.,1F7

main53101-28381-B1iACR50..AERAS201205-201605

ICE TITANIUM M.M.,1H4

main53101-28381-C0iACR50..AERAS201205-201605

BLACK,202

main53101-28381-D0iACR50..AERAS201205-201605

DEEP RED M.M.,3R9

main53101-28381-J0iACR50..AERAS201205-201605

GRAYISH BLUE M.M.,8V5

main53101-28470-A0iACR50..ARL;GSR50..RHD200812-201205

SUPER WHITE 2,040

main53101-28470-A1iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201210

WHITE PEARL CS.,070

main53101-28470-B1iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201210

SILVER ME.,1F7

main53101-28470-B2iACR50..ARL;GSR50..RHD200812-201205

MEDIUM SILVER ME.,1F8

main53101-28470-B3iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201210

ICE TITANIUM M.M.,1H4

main53101-28470-C0iACR50..ARL;GSR50..RHD200812-201205

BLACK,202

main53101-28470-D0iACR50..ARL;GSR50..RHD200812-201205

DK. RED M.M.,3Q3

main53101-28470-D1iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201210

DEEP RED M.M.,3R9

main53101-28470-F0iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201210

SILKY GOLD M.M.,5A4

main53101-28470-J0iACR50..ARL;GSR50..RHD200812-201205

DK.BLUE MC.,8S6

main53101-28470-K0iACR50..ARL;GSR50..RHD200812-201205

LT.PURPLE M.M.,9AE

main53101-28471-A0iACR50,GSR50..DLX,GL201211-201301

SUPER WHITE 2,040

main53101-28471-A1iACR50,GSR50..DLX,GL201211-201301

WHITE PEARL CS.,070

main53101-28471-B1iACR50,GSR50..DLX,GL201211-201301

SILVER ME.,1F7

main53101-28471-B3iACR50,GSR50..DLX,GL201211-201301

ICE TITANIUM M.M.,1H4

main53101-28471-C0iACR50,GSR50..DLX,GL201211-201301

BLACK,202

main53101-28471-D1iACR50,GSR50..DLX,GL201211-201301

DEEP RED M.M.,3R9

main53101-28471-F0iACR50,GSR50..DLX,GL201211-201301

SILKY GOLD M.M.,5A4

main53101-28472-A0iGSR50;ACR50..DLX;ACR50..GL..GCC;ACR50..LHD..CVT201605

SUPER WHITE 2,040

main53101-28472-A1iACR50,GSR50..DLX,GL201301-201605

WHITE PEARL CS.,070

main53101-28472-B1iACR50,GSR50..DLX,GL201605

SILVER ME.,1F7

main53101-28472-B3iACR50,GSR50..DLX,GL201605

ICE TITANIUM M.M.,1H4

main53101-28472-C0iACR50,GSR50..DLX,GL201301-201605

BLACK,202

main53101-28472-D1iACR50,GSR50..DLX,GL201301-201605

DEEP RED M.M.,3R9

main53101-28472-D2iACR50,GSR50..DLX,GL201605

RED M.M.,3R3

main53101-28472-E0iACR50,GSR50..DLX,GL201409-201605

DARK SHERRY M.M.,4W4

main53101-28472-F0iACR50,GSR50..DLX,GL201301-201409

SILKY GOLD M.M.,5A4

main53101-28580iACR50..AERAS201605-201906

PLATED

53155DSEAL, RADIATOR GRILLE, NO.1

main53397-28040iACR50,GSR50200601-200812

main53397-28070iACR50..ARL;GSR50..RHD200812-201205

main53397-28090iACR50..AERAS201605-201906

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9015950311

main90159-50311

9016840059

main90168-40059

9046719023

main90467-19023

7 parts on this diagram · 4 diagrams in section
