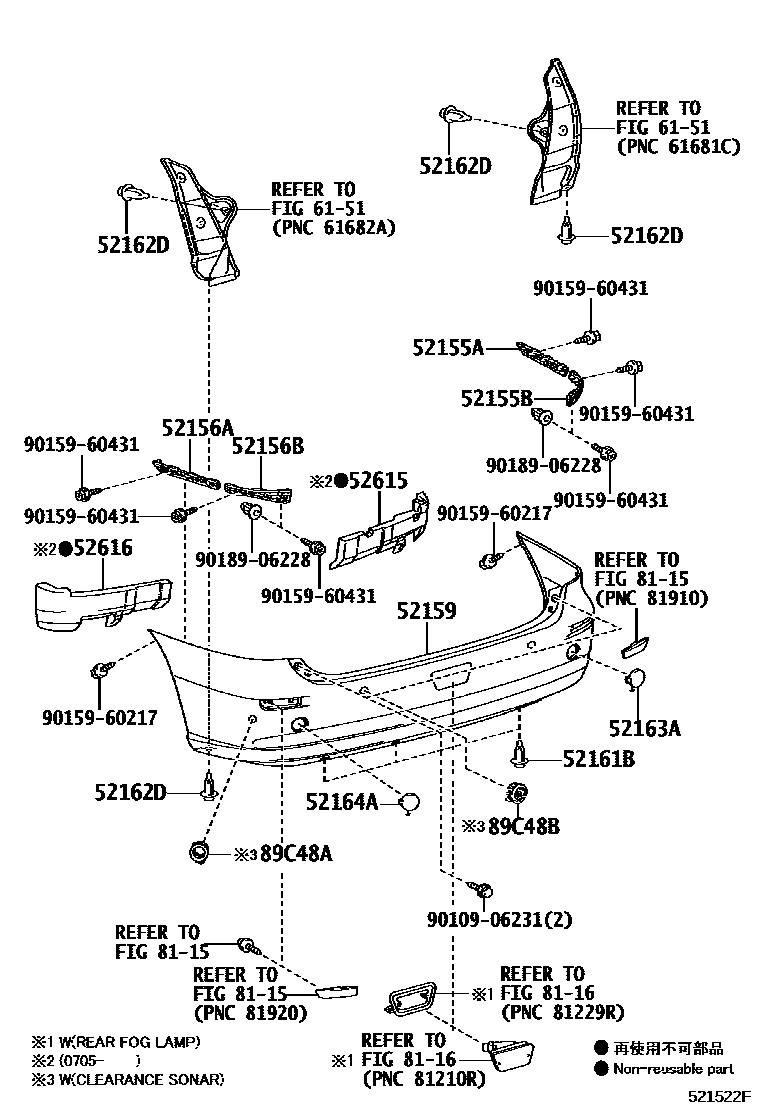

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-28080iGSR50..RHD..GEN201204-201409

52155BSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52155-28090iACR50,GSR50..DLX,GL201605

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-28050iACR50,GSR50200601-200812

52156BSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52156-28060iACR50,GSR50200601-200812

52159COVER, REAR BUMPER

main52159-28914iGSR50..RHD;GSR50..GCC;ACR50..4FC..(GCC,GEN);ACR50..RHD..CVT..(DLX,GL)201204-201605

PAINT REQ.

main52159-28953supersedes 52159-28957iGSR50..GEN;ACR50..LHD..CVT201409-201510

PAINT REQ.,FIG.84-17

main52159-28915supersedes 52159-28914iACR50..RHD..GEN;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-201204

PAINT REQ.,CLEARANCE SONAR-WITH

main52159-28916iACR50,GSR50..LHD..GL..GEN; ACR50..LHD..DLX..GEN200812-201204

PAINT REQ.,CLEARANCE SONAR-WITHOUT; PAINT REQ.,TAIWAN SPEC

main52159-28917supersedes 52159-28916iACR50,GSR50..LHD..GL..GEN200601-200706

PAINT REQ.,CLEARANCE SONAR-WITH(CLEARANCE & BACK SONAR)

main52159-28952iGSR50..DLX201204-201409

PAINT REQ.,CLEARANCE SONAR-WITH

main52159-28954supersedes 52159-28920iACR50..AERAS201304-201605

PAINT REQ.,CLEARANCE SONAR-WITH

main52159-28957supersedes 52159-28916iACR50..GCC; GSR50..GEN;ACR50..LHD..CVT201605

PAINT REQ.; PAINT REQ.,CLEARANCE & BACK SONAR-WITH

main52159-28958iGSR50..GL..ARL;ACR50..LHD..4FC..GEN;ACR50..RHD..(DLX,GL)201605

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

main52159-28959supersedes 52159-28920iACR50..AERAS201605-201906

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

52161BPIECE, REAR BUMPER

main52161-16010×3iACR50,GSR50200601-200812

52162DPIECE, REAR BUMPER

main52161-16010×4iGSR50..RHD..GEN201204-201409

52163APLATE, REAR BUMPER, RH

main52163-28030-A0iACR50..ARL;GSR50..RHD200812-201205

SUPER WHITE 2,040

main52163-28030-A1iACR50..ARL;GSR50..RHD200812-201205

WHITE PEARL CS.,070

main52163-28030-B0iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201605

SILVER ME.,1F7

main52163-28030-B1iACR50..ARL;GSR50..RHD200812-201205

MEDIUM SILVER ME.,1F8

main52163-28030-B3iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201605

ICE TITANIUM M.M.,1H4

main52163-28030-C0iACR50,GSR50200601-200812

BLACK,202

main52163-28030-D0iGSR50..LHD;ACR50..GCC,GEN200812-201204

DK. RED M.M.,3Q3

main52163-28030-D1iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201605

DEEP RED M.M.,3R9

main52163-28030-D2iACR50,GSR50..DLX,GL201605

RED M.M.,3R3

main52163-28030-E0iACR50,GSR50..DLX,GL201605

DARK SHERRY M.M.,4W4

main52163-28030-F0iACR50..ARL;GSR50..RHD200812-201205

SILKY GOLD M.M.,5A4

main52163-28030-J0iACR50..ARL;GSR50..RHD200812-201205

DK.BLUE MC.,8S6

main52163-28030-J1iACR50,GSR50200601-200812

LT.BLUE M.M.,8S7

main52163-28030-K0iGSR50..LHD;ACR50..GCC,GEN200812-201204

LT.PURPLE M.M.,9AE

52164APLATE, REAR BUMPER, LH

main52164-28020-A0iACR50..ARL;GSR50..RHD200812-201205

SUPER WHITE 2,040

main52164-28020-A1iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201605

WHITE PEARL CS.,070

main52164-28020-B0iACR50..ARL;GSR50..RHD200812-201205

SILVER ME.,1F7

main52164-28020-B1iGSR50..LHD;ACR50..GCC,GEN200812-201204

MEDIUM SILVER ME.,1F8

main52164-28020-B3iACR50,GSR50..DLX,GL201605

ICE TITANIUM M.M.,1H4

main52164-28020-C0iACR50,GSR50200601-200812

BLACK,202

main52164-28020-D0iACR50..ARL;GSR50..RHD200812-201205

DK. RED M.M.,3Q3

main52164-28020-D1iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201605

DEEP RED M.M.,3R9

main52164-28020-D2iACR50,GSR50..DLX,GL201605

RED M.M.,3R3

main52164-28020-E0iACR50,GSR50..DLX,GL201409-201605

DARK SHERRY M.M.,4W4

main52164-28020-F0iGSR50..LHD;ACR50..GCC,GEN200812-201204

SILKY GOLD M.M.,5A4

main52164-28020-J0iACR50..ARL;GSR50..RHD200812-201205

DK.BLUE MC.,8S6

main52164-28020-J1iACR50,GSR50200601-200812

LT.BLUE M.M.,8S7

main52164-28020-K0iGSR50..LHD;ACR50..GCC,GEN200812-201204

LT.PURPLE M.M.,9AE

52615ABSORBER, REAR BUMPER ENERGY

main52615-28040iGSR50..LHD;ACR50..GCC,GEN200812-201204

main52615-28050iACR50..AERAS201205-201301

main52615-28051iACR50..AERAS201302-201605

52616ABSORBER, REAR BUMPER ENERGY, LH

main52616-28010iACR50..ARL;GSR50..RHD200812-201205

main52616-28020iACR50..AERAS201205-201301

main52616-28021iACR50..AERAS201302-201605

6151SIDE MEMBER

→ Go to FIG 61-51

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8116REAR FOG LAMP

→ Go to FIG 81-16

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-28100-A0×2iACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-201205

CLEARANCE SONAR-WITH,SUPER WHITE 2,040

main89348-28100-A1×2iACR50,GSR50..LHD..GL..GEN200812-201204

CLEARANCE SONAR-WITHOUT,WHITE PEARL CS.,070; WHITE PEARL CS.,070

main89348-28100-B0×2iACR50,GSR50..LHD..GL..GEN200706-200812

CLEARANCE SONAR-WITHOUT,SILVER ME.,1F7; SILVER ME.,1F7

main89348-28100-B1×2iACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200812-201205

CLEARANCE SONAR-WITH,MEDIUM SILVER ME.,1F8

main89348-28100-C0×2iACR50,GSR50..LHD..GL..GEN200706-200812

BLACK,202; CLEARANCE SONAR-WITHOUT,BLACK,202

main89348-28100-D0×2iACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200601-200812

CLEARANCE SONAR-WITH(CLEARANCE & BACK SONAR),DK. RED M.M.,3Q3

main89348-28100-F0×2iACR50,GSR50..LHD..GL..GEN200601-200706

CLEARANCE SONAR-WITH(CLEARANCE & BACK SONAR),SILKY GOLD M.M.,5A4

main89348-28100-J0×2iACR50,GSR50..LHD..GL..GEN200812-201204

CLEARANCE SONAR-WITHOUT,DK.BLUE MC.,8S6; DK.BLUE MC.,8S6

main89348-28100-J1×2iACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200601-200812

CLEARANCE SONAR-WITH(CLEARANCE & BACK SONAR),LT.BLUE M.M.,8S7

main89348-28100-K0×2iACR50,GSR50..LHD..GL..GEN200812-201204

CLEARANCE SONAR-WITHOUT,LT.PURPLE M.M.,9AE; LT.PURPLE M.M.,9AE

main89348-33060-A0×2iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201209

CLEARANCE SONAR-WITH,SUPER WHITE 2,040

main89348-33060-A2×2iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201209

CLEARANCE SONAR-WITH,WHITE PEARL CS.,070

main89348-33060-B4×2iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201209

CLEARANCE SONAR-WITH,SILVER ME.,1F7

main89348-33060-C0×2iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201209

CLEARANCE SONAR-WITH,BLACK,202

main89348-33060-F3×2iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201209

CLEARANCE SONAR-WITH,SILKY GOLD M.M.,5A4

main89348-33060-P6×2iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201209

CLEARANCE SONAR-WITH,ICE TITANIUM M.M.,1H4

main89348-33060-X0×2iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201209

CLEARANCE SONAR-WITH,BORDEAUX M.M,3R9

main89348-33100-A0×2iGSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN201210-201409

CLEARANCE SONAR-WITH,SUPER WHITE 2,040

main89348-33100-A1×2iGSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN201210-201409

CLEARANCE SONAR-WITH,WHITE PEARL CS.,070

main89348-33100-B0×2iGSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN201210-201409

CLEARANCE SONAR-WITH,SILVER ME.,1F7

main89348-33100-B9×2iGSR50..GCC;GSR50..RHD..GL;ACR50..LHD..4FC;ACR50..RHD..(DLX,GL)201210-201605

CLEARANCE SONAR-WITH,ICE TITANIUM M.M.,1H4

main89348-33100-C4×2iGSR50..GEN;ACR50..LHD..CVT201510-201605

BEIJING SPEC,BLACK,202; CHINA SPEC,BLACK,202

main89348-33100-D5×2iGSR50..GEN;ACR50..LHD..CVT201510-201605

BEIJING SPEC,BORDEAUX M.M,3R9; CHINA SPEC,BORDEAUX M.M,3R9

main89348-33100-E9×2iGSR50..GEN;ACR50..LHD..CVT201510-201605

BEIJING SPEC,DARK SHERRY M.M.,4W4; CHINA SPEC,DARK SHERRY M.M.,4W4

main89348-33100-F1×2iACR50,GSR50..DLX,GL201210-201409

CLEARANCE SONAR-WITH,SILKY GOLD M.M.,5A4

main89348-33100-J9×2iACR50..AERAS201304-201605

CLEARANCE SONAR-WITH,GRAYISH BLUE M.M.,8V5

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-28090-A0×2iACR50,GSR50..LHD..GL..GEN200706-200812

CLEARANCE SONAR-WITHOUT,SUPER WHITE 2,040; SUPER WHITE 2,040

main89348-28090-A1×2iACR50,GSR50..LHD..GL..GEN200706-200812

CLEARANCE SONAR-WITHOUT,WHITE PEARL CS.,070; WHITE PEARL CS.,070

main89348-28090-B0×2iACR50,GSR50..LHD..GL..GEN200601-200706

CLEARANCE SONAR-WITH(CLEARANCE & BACK SONAR),SILVER ME.,1F7

main89348-28090-B1×2iACR50,GSR50..LHD..GL..GEN200812-201204

CLEARANCE SONAR-WITHOUT,MEDIUM SILVER ME.,1F8; MEDIUM SILVER ME.,1F8

main89348-28090-C0×2iACR50,GSR50..LHD..GL..GEN200706-200812

BLACK,202; CLEARANCE SONAR-WITHOUT,BLACK,202

main89348-28090-D0×2iACR50,GSR50..LHD..GL..GEN200706-200812

CLEARANCE SONAR-WITHOUT,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3

main89348-28090-F0×2iACR50,GSR50..LHD..GL..GEN200706-200812

CLEARANCE SONAR-WITHOUT,SILKY GOLD M.M.,5A4; SILKY GOLD M.M.,5A4

main89348-28090-J0×2iACR50,GSR50..LHD..GL..GEN200812-201204

CLEARANCE SONAR-WITHOUT,DK.BLUE MC.,8S6; DK.BLUE MC.,8S6

main89348-28090-J1×2iACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN200601-200812

CLEARANCE SONAR-WITH(CLEARANCE & BACK SONAR),LT.BLUE M.M.,8S7

main89348-28090-K0×2iACR50,GSR50..LHD..GL..GEN200812-201204

CLEARANCE SONAR-WITHOUT,LT.PURPLE M.M.,9AE; LT.PURPLE M.M.,9AE

main89348-71010-A0×2iGSR50..GEN;ACR50..LHD..CVT201510-201605

BEIJING SPEC,SUPER WHITE 2,040; CHINA SPEC,SUPER WHITE 2,040

main89348-71010-A1×2iGSR50..GEN;ACR50..LHD..CVT201510-201605

BEIJING SPEC,WHITE PEARL CS.,070; CHINA SPEC,WHITE PEARL CS.,070

main89348-71010-B5×2iGSR50..GEN;ACR50..LHD..CVT201510-201605

BEIJING SPEC,SILVER ME.,1F7; CHINA SPEC,SILVER ME.,1F7

main89348-71010-C0×2iGSR50..DLX;ACR50..LHD..CVT;GSR50..LHD..GEN201204-201409

CLEARANCE SONAR-WITH,BLACK,202

main89348-71010-D5×2iGSR50..GEN;ACR50..LHD..CVT201510-201605

BEIJING SPEC,BORDEAUX M.M,3R9; CHINA SPEC,BORDEAUX M.M,3R9

main89348-71010-E9×2iACR50..LHD..4FC;ACR50..RHD..(DLX,GL);GSR50..GL..(ARL,GCC)201409-201605

CLEARANCE SONAR-WITH,DARK SHERRY M.M.,4W4

main89348-71010-F1×2iGSR50;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)201204-201409

CLEARANCE SONAR-WITH,SILKY GOLD M.M.,5A4

main89348-71010-J5×2iACR50..AERAS201304-201605

CLEARANCE SONAR-WITH,GRAYISH BLUE M.M.,8V5

main89348-71010-P2×2iGSR50..GCC;GSR50..RHD..GL;ACR50..4FC..(GCC,GEN);ACR50..RHD..CVT..(DLX,GL)201204-201605

CLEARANCE SONAR-WITH,ICE TITANIUM M.M.,1H4

9010906231

main90109-06231

9015960217

main90159-60217

9015960431

main90159-60431

9018906228

main90189-06228

20 parts on this diagram · 2 diagrams in section
