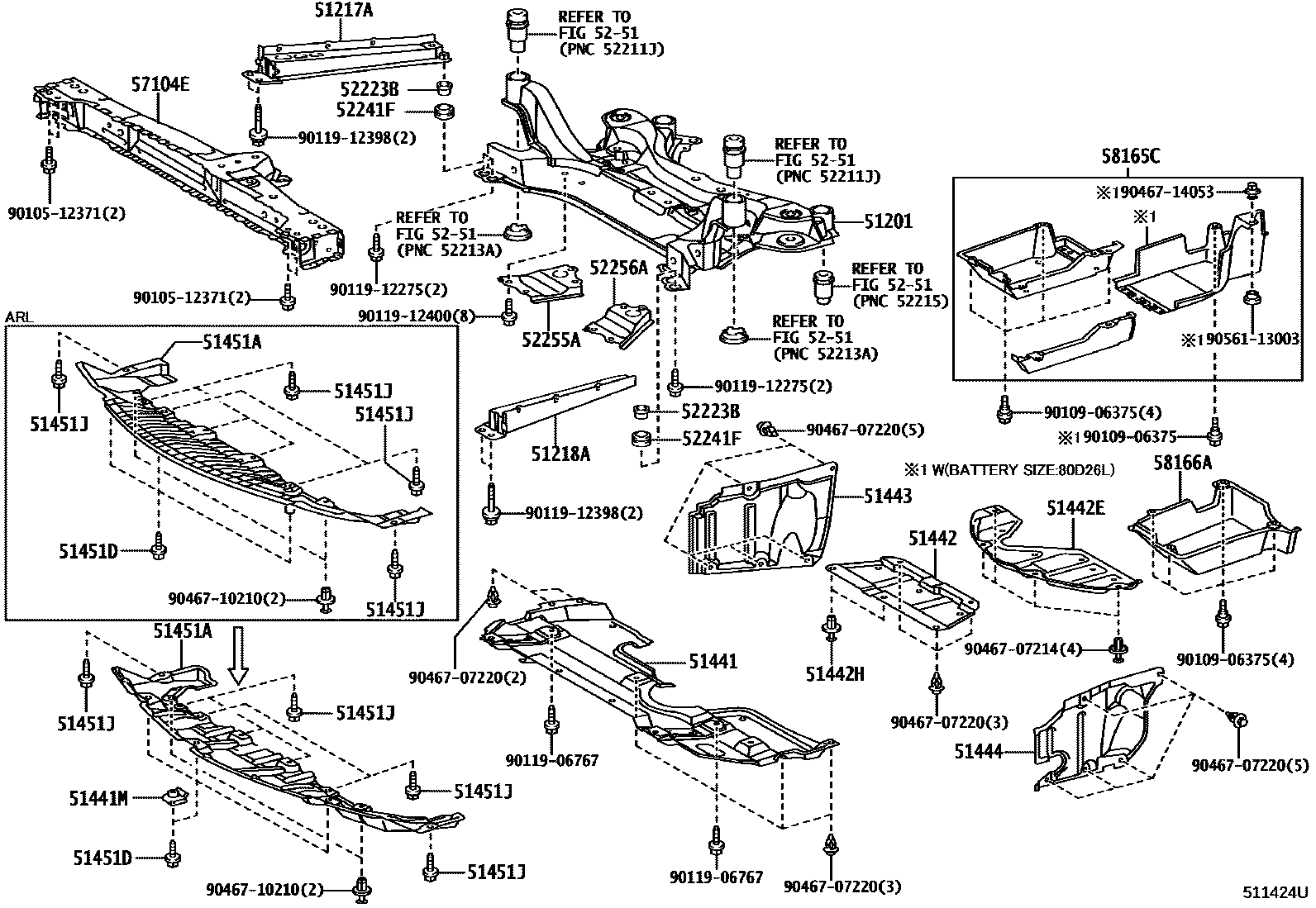

SUSPENSION CROSSMEMBER & UNDER COVER
51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51441COVER, ENGINE UNDER, NO.1
51441MNUT
51442COVER, ENGINE UNDER, NO.2
51442ECOVER, ENGINE UNDER, NO.2
51442HCLIP, ENGINE UNDER COVER, NO.2
51443COVER, ENGINE UNDER, REAR RH
51444COVER, ENGINE UNDER, REAR LH
51451ACOVER, ENGINE UNDER, CENTER
51451DSCREW, NO.1
51451JBOLT, NO.1
52223BSPACER, FRONT SUSPENSION MEMBER MOUNTIONG, LOWER
52241FCUSHION, FRONT SUSPENSION MEMBER MOUNTING, LWR
52255ABRACE, FRONT SUSPENSION MEMBER, FRONT RH
52256ABRACE, FRONT SUSPENSION MEMBER, FRONT LH
5251CAB MOUNTING & BODY MOUNTING
57104EMEMBER SUB-ASSY, FRONT CROSS
58165CCOVER, FRONT FLOOR, RH
main50819-28010supersedes 50819-28020iACR50,GSR50..LHD..GL..GEN; ACR50,GSR50..RHD;ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN; ACR50..LHD..GL..GEN200601-200812
EL SALVADOR SPEC; GUATEMALA SPEC; HONDURAS SPEC; JORDAN SPEC; PHILIPPINES SPEC; TAIWAN SPEC
COLD AREA SPEC
58166ACOVER, FRONT FLOOR, LH
9010512371
main90105-12371
9010906375
main90109-06375
9011906767
main90119-06767
9011912275
main90119-12275
9011912398
main90119-12398
9011912400
main90119-12400
9046707214
main90467-07214
9046707220
main90467-07220
9046710210
main90467-10210
9046714053
main90467-14053
9056113003
main90561-13003
32 parts on this diagram · 2 diagrams in section
