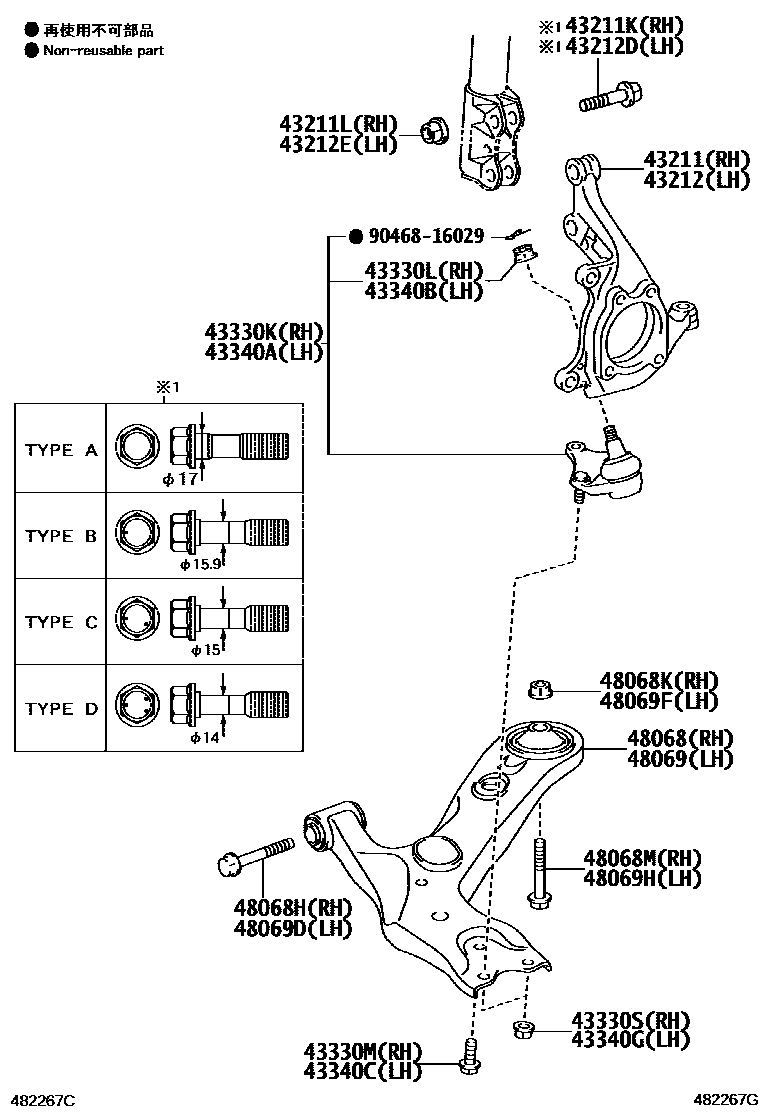

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-28140iACR50,GSR50200601-200812

main43211-78010iGSR50..RHD..GEN201405-201409

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17008×2iGSR50..RHD..GEN201204-201409

OD=17,TYPE A:REFER ILLUST.

main90105-17012×2iACR50..AERAS201709-201906

OD=17,TYPE A:REFER ILLUST.

main90105-17013iACR50,GSR50200601-200812

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iGSR50..LHD;ACR50..GCC,GEN200812-201204

OD=15,TYPE C:REFER ILLUST.

main90105-17015iACR50..AERAS201605-201906

OD=14,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17001×2iACR50,GSR50200601-200812

main90178-17002×2iGSR50..RHD..GEN201204-201409

43212KNUCKLE, STEERING, LH

main43212-28120iACR50,GSR50200601-200812

main43212-78010iGSR50..RHD..GEN201405-201409

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17008×2iACR50,GSR50201605-201709

OD=17,TYPE A:REFER ILLUST.

main90105-17012×2iACR50,GSR50..DLX,GL201709

OD=17,TYPE A:REFER ILLUST.

main90105-17013iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iGSR50..RHD..GEN201204-201409

OD=15,TYPE C:REFER ILLUST.

main90105-17015iGSR50..LHD;ACR50..GCC,GEN200812-201204

OD=14,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17001×2iACR50,GSR50200601-200812

main90178-17002×2iACR50,GSR50..DLX,GL201605

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-49095iACR50,GSR50200601-200812

main43330-49215iACR50..AERAS201805-201906

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14011iACR50,GSR50200601-200812

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12346iACR50,GSR50200601-200812

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019×2iACR50,GSR50200601-200812

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-49095iACR50,GSR50200601-200812

main43330-49215iACR50,GSR50..DLX,GL201805

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14011iACR50,GSR50200601-200812

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12346iACR50,GSR50200601-200812

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019×2iGSR50..LHD;ACR50..GCC,GEN200812-201204

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-28140iACR50,GSR50200601-200812

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16090iGSR50..RHD..GEN201301-201409

main91554-L1690iACR50,GSR50200601-200812

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90178-16006iACR50,GSR50200601-200812

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-16090iACR50,GSR50201301-201605

main91554-L1690iACR50,GSR50200601-200812

main90105-12208×2iGSR50..GEN201605-201709

BEIJING SPEC; CHINA SPEC

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-28140iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16090iACR50,GSR50..DLX,GL201605

main91554-L1690iACR50,GSR50200601-200812

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90178-16006iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-16090iACR50,GSR50201301-201605

main91554-L1690iGSR50..LHD;ACR50..GCC,GEN200812-201204

main90105-12208×2iACR50..LHD..CVT201605-201811

BEIJING SPEC; CHINA SPEC

9046816029

main90468-16029

23 parts on this diagram · 1 diagram in section
