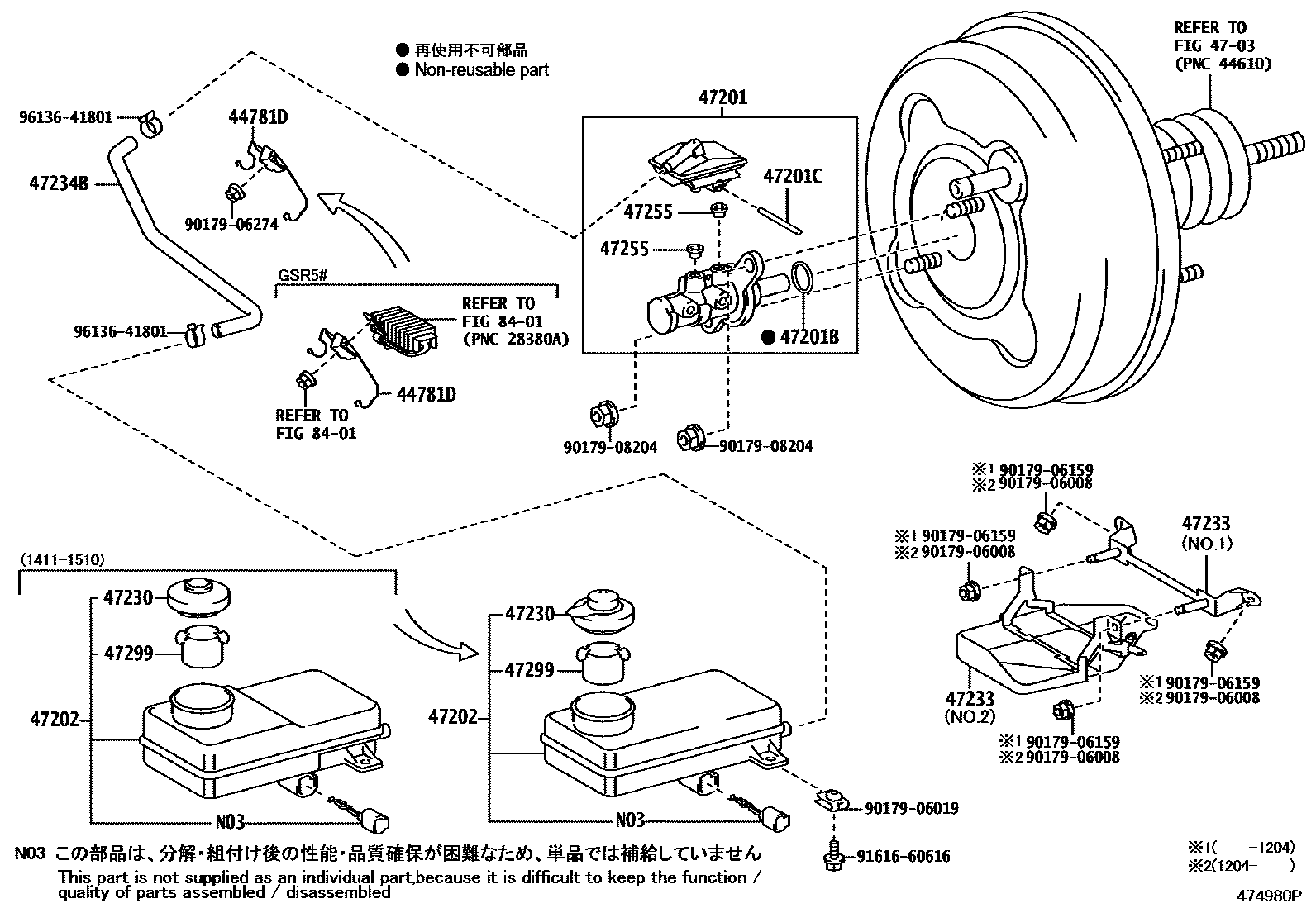

44781DBRACKET, RESERVOIR HOSE

main44781-28020i200601-200812

main44781-28030i201605

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-28660supersedes 47201-28670i200812-201205

VSC-WITH

main47201-28661supersedes 47201-28671i201212-201409

VSC-WITH

main47201-28670i201204-201209

main47201-28671i201210-201605

main47201-28680supersedes 47201-28690i201204-201301

VSC-WITH

main47201-28681supersedes 47201-28691i201302-201409

VSC-WITH

main47201-28690supersedes 47201-28680i201204-201211

main47201-28691i201212-201605

main47201-58041i201409-201602

main47201-58042i201605

main47201-58051i201409-201602

main47201-58052i201603-201605

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001i200601-200812

47201CRING PIN, BRAKE MASTER CYLINDER

main90015-AE401i200601-200812

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-28300i200601-200812

main47220-58020i200812-201204

main47220-58021i201411-201510

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28240i200601-200812

main47230-58021i201411-201510

47233BRACKET, RESERVOIR

main47233-28130i201605

NO.1

main47234-28190i201204-201605

NO.2

47234BTUBE, RESERVOIR, NO.1

main47234-28160i201204-201409

main47234-28170i201605

47255GROMMET, MASTER CYLINDER RESERVOIR

main90015-AT001×2i201204-201605

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110i201605-201906

main47299-58021i201411-201510

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017906008

main90179-06008

9017906019

main90179-06019

9017906159

main90179-06159

9017906274

main90179-06274

9017908204

main90179-08204

9161660616

main91616-60616

9613641801

main96136-41801
