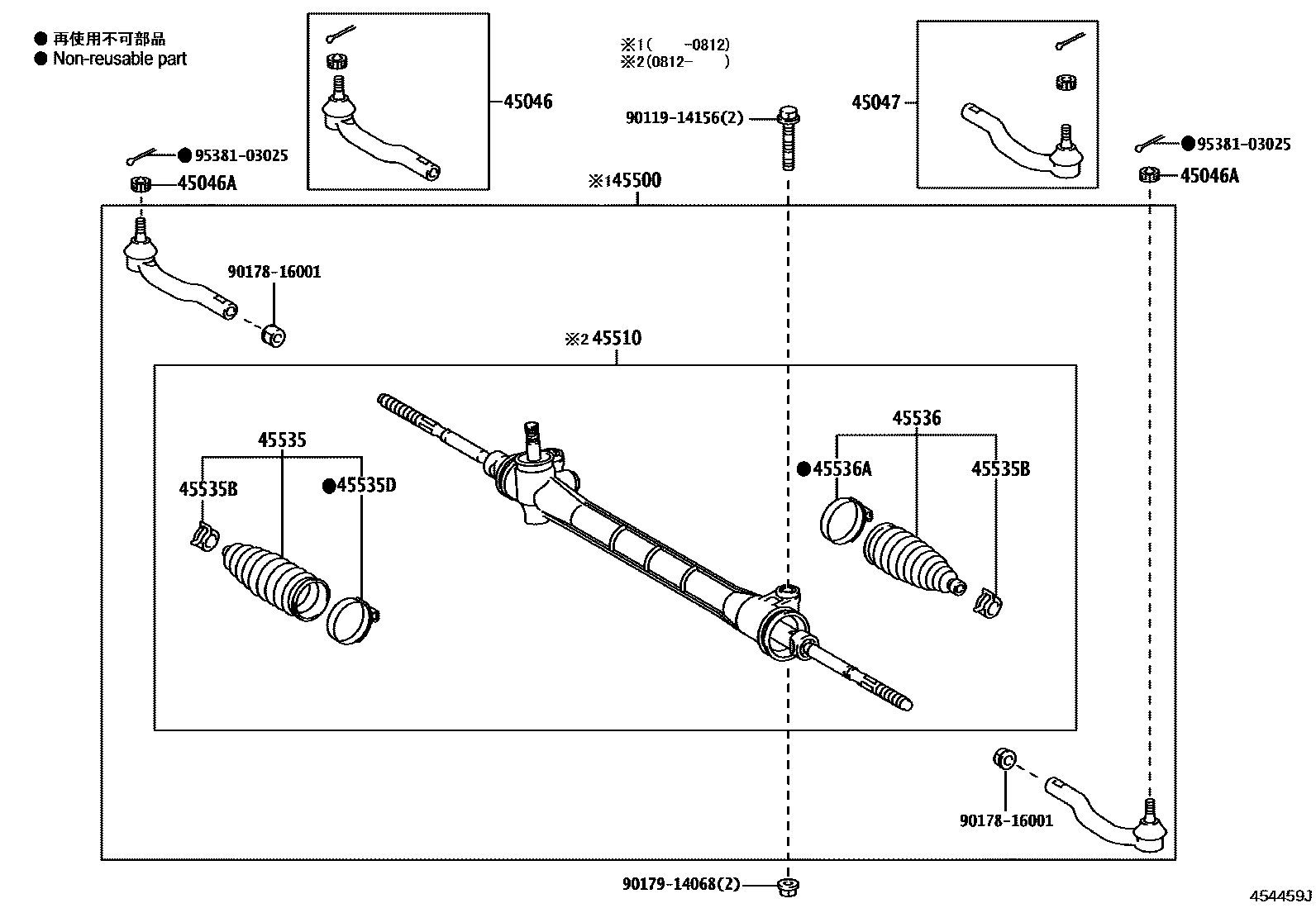

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-29515iACR50,GSR50200601-200812

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iACR50,GSR50200601-200812

45047END SUB-ASSY, TIE ROD, LH

main45047-29195iACR50..ARL;GSR50..RHD200812-201205

45500LINK ASSY, STEERING

main45500-28080iACR50,GSR50..RHD200601-200812

main45500-28100iACR50,GSR50..LHD200601-200812

45510GEAR ASSY, STEERING

main45510-28160iACR50..ARL;GSR50..RHD200812-201205

main45510-28161iACR50..AERAS201605-201906

main45510-28170iACR50..AERAS201205-201605

main45510-28180iACR50,GSR50..LHD200812-201204

main45510-28181iACR50,GSR50..LHD201605

45535BOOT, STEERING RACK, NO.1

main45535-59005iGSR50..LHD;ACR50..GCC,GEN200812-201204

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iACR50,GSR50200601-200812

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-47010iACR50,GSR50200601-200812

45536BOOT, STEERING RACK, NO.2

main45535-59005iACR50,GSR50200601-200812

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-47010iACR50,GSR50200601-200812

9011914156

main90119-14156

9017816001

main90178-16001

9017914068

main90179-14068

9538103025

main95381-03025

14 parts on this diagram · 2 diagrams in section
