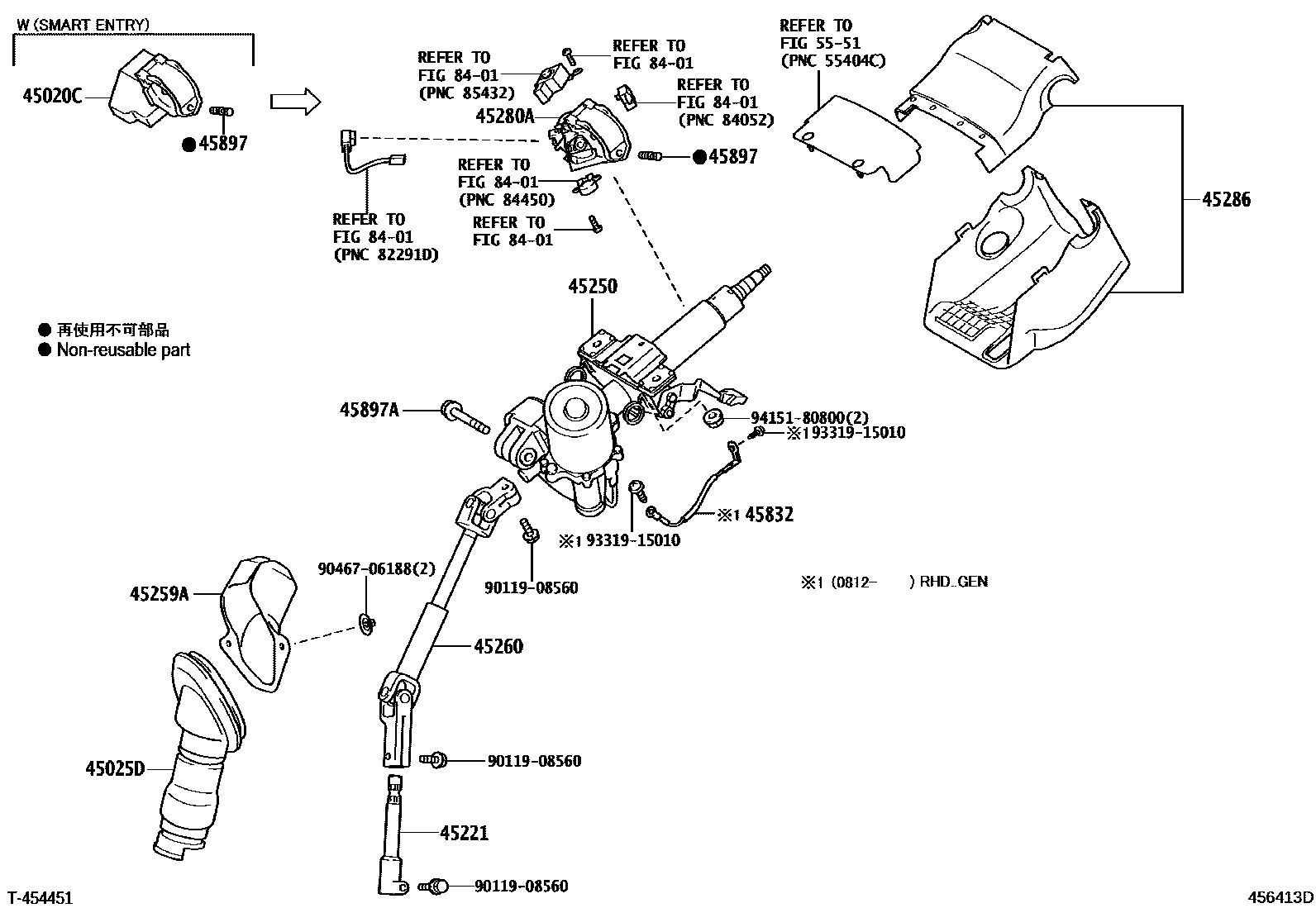

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45221SHAFT, STEERING INTERMEDIATE
45250COLUMN ASSY, STEERING
HEADLAMP-DISCHARGE & AFS
HEADLAMP-HALOGEN
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
DK.GRAY,TRIM1#
GREGE,TRIM4#
SHELL,TRIM0#
BLACK,TRIM2#
SHELL,TRIM0#
BLACK,TRIM1#
main45286-28906-E0supersedes 45286-28907-E0iACR50..GL..GCC; GSR50..LHD;ACR50..CVT..GL;ACR50..LHD..GL..GEN200812-201204
GREGE,TRIM4#; HEADLAMP-DISCHARGE & AFS,GREGE,TRIM4#
DK.GRAY,TRIM1#
BLACK,TRIM1#
GREGE,TRIM4#
SHELL,TRIM0#
BLACK,TRIM2#
SHELL,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
SHELL,TRIM0#
BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD),GREGE,TRIM4#
45832CABLE, TILT STEERING SUPPORT BOND
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
5551INSTRUMENT PANEL & GLOVE COMPARTMENT
8401SWITCH & RELAY & COMPUTER
9011908560
main90119-08560
9046706188
main90467-06188
9331915010
main93319-15010
9415180800
main94151-80800
17 parts on this diagram · 3 diagrams in section
