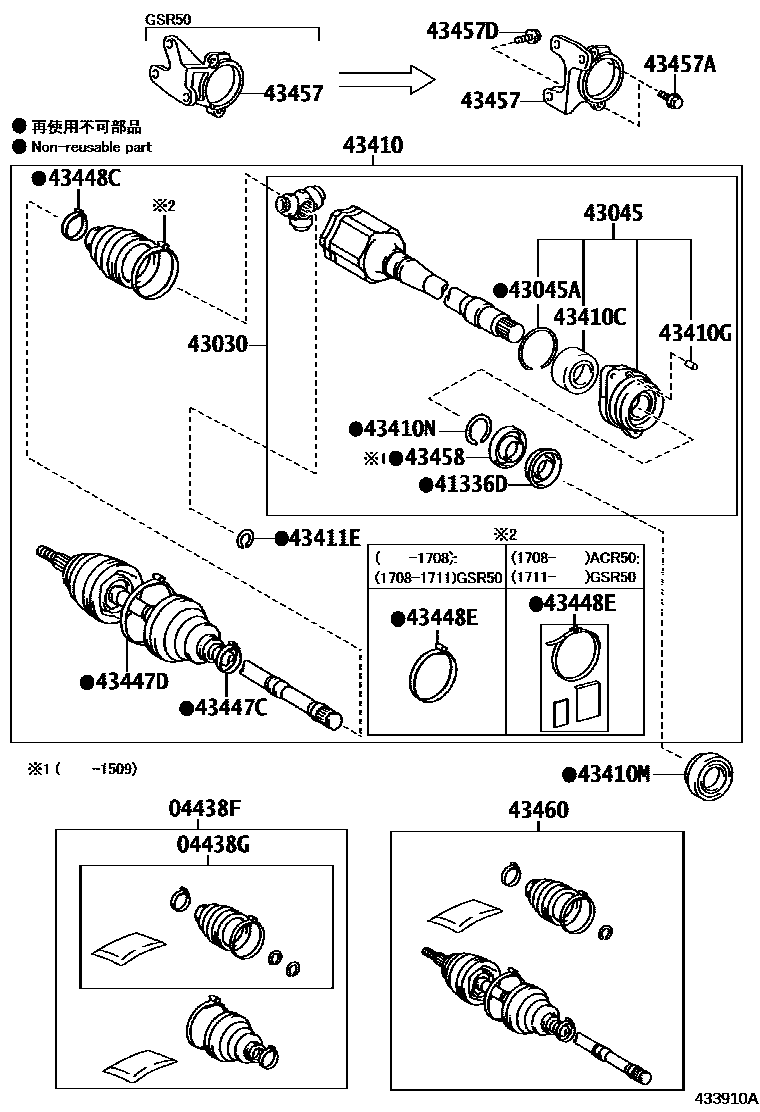

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-28110iACR50200601-200609

main04427-33120iACR50..DLX,GL201708

main04427-42161iGSR50201711

sub04427-42162

main04427-44050iACR50..CVT;ACR50..4FC..(GCC,GEN)201204-201605

sub04427-44052

main04428-42120iGSR50200611-200812

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-33040iACR50200601-200609

main04437-33090iGSR50201711

main04438-42180iGSR50..LHD;ACR50..GCC,GEN200812-201204

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iGSR50..LHD;ACR50..GCC,GEN200812-201204

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-28070iACR50..AERAS201708-201906

main43030-28100iGSR50201711

main43030-42040iGSR50..ARL,GCC;GSR50..LHD..GEN201204-201605

main43030-44021iACR50..CVT;ACR50..4FC..(GCC,GEN)201204-201605

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-64020iGSR50..LHD;ACR50..GCC,GEN200812-201204

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main90520-69002iACR50..ARL;GSR50..RHD200812-201205

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-42140iACR50..ARL200812-201205

main43410-42141iACR50..DLX,GL201708

main43410-42160iGSR50..RHD200812-201205

main43410-42161iGSR50201711

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-41003iGSR50..LHD;ACR50..GCC,GEN200812-201204

43410GPIN, STRAIGHT (FOR FRONT DRIVE SHAFT)

main90250-06003iGSR50..RHD..GEN201204-201409

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40026iACR50..CVT201204-201303

main90311-40029iGSR50200611-200812

main90311-40031iACR50..4FC..(GCC,GEN)201204-201310

*344

main90311-40038iGSR50..RHD..GEN201212-201409

main90311-40041iACR50..CVT..(DLX,GL)201605

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-38015iACR50,GSR50..DLX,GL201605

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iACR50,GSR50200601-200812

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42100iACR50..ARL200812-201205

main42345-42120iGSR50..RHD..GEN201204-201409

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42090iACR50..ARL200812-201205

main42345-42110iGSR50..ARL,GCC;GSR50..LHD..GEN201204-201605

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-33120iACR50..DLX,GL201708

main42345-42010iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iACR50,GSR50200601-200812

main42345-33140iACR50..DLX,GL201708

43457BRACKET, DRIVE SHAFT BEARING

main43457-42030iGSR50200611-200812

main43457-42090iACR50..CVT;ACR50..4FC..(GCC,GEN)201204-201605

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361×2iACR50..AERAS201605-201906

*10-1.25PX22-19.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iACR50,GSR50200601-200812

43458COVER, FRONT DRIVE SHAFT DUST

main43458-12010iACR50..ARL;GSR50..RHD200812-201205

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-49655iGSR50..LHD200812-201204

sub43470-49656

main43470-49665iACR50..ARL200812-201205

sub43470-49666

main43470-80412iACR50..AERAS201708-201906

main43470-80459iGSR50201711

21 parts on this diagram · 2 diagrams in section
