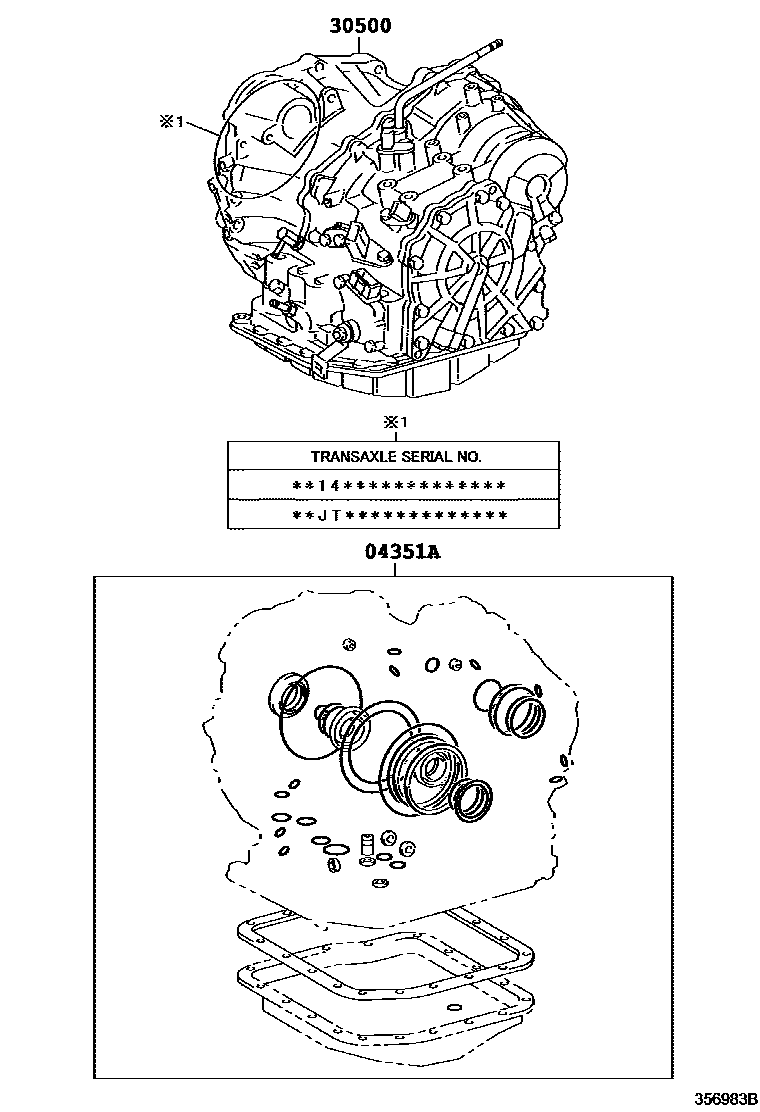

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1U241E 0002 1U660E

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-28160iACR50200601-200703

main04351-28200iACR50200703-200812

main04351-33400iGSR50200611-200812

main04351-33401iGSR50..RHD201106-201205

main04351-33402iGSR50201605-201811

main04351-33404iGSR50201811

main04351-42051iACR50..4FC201310-201605

*346

main04351-48150iACR50200812-201002

main04351-48151iACR50..4FC201002-201106

main04351-48152iACR50..ARL201106-201205

main04351-48153iACR50..4FC201302-201310

*199

30500TRANSAXLE ASSY, AUTOMATIC

main30500-28140iACR50200601-200609

U241E

main30500-28141iACR50..ARL200812-201205

U241E

main30500-28160iGSR50201605

U660E

main30500-28200iACR50..4FC201310-201605

U241E,*346

2 parts on this diagram · 2 diagrams in section
