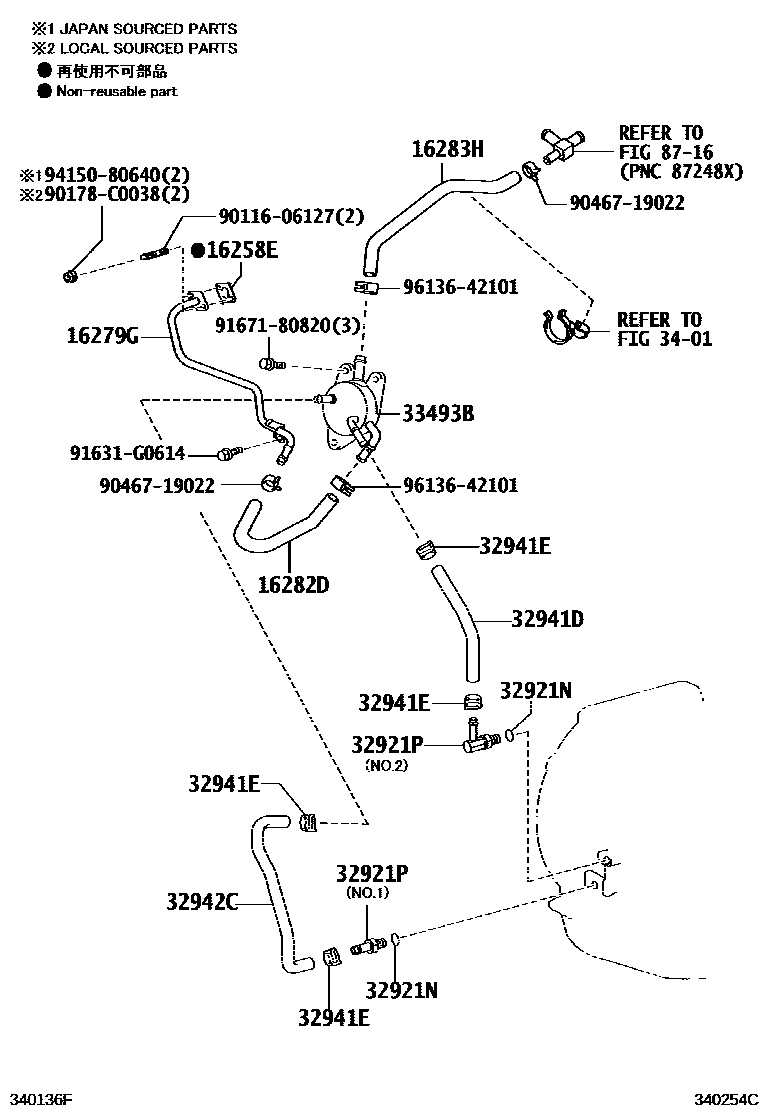

OIL COOLER & TUBE(CVT)
16258EGASKET(FOR WATER BY-PASS PIPE)
*195; 2AZ-FE,*195
2AZ-FE,*194
16279GPIPE, WATER BY-PASS, NO.3
16282DHOSE, WATER BY-PASS, NO.5
16283HHOSE, WATER BY-PASS, NO.6
SINGAPORE SPEC
32921NRING, O(FOR OIL COOLER TUBE UNION)
32921PUNION(FOR OIL COOLER TUBE)
NO.1
NO.2
NO.2
32941DHOSE, OIL COOLER INLET
NO.1; SINGAPORE SPEC,NO.1
NO.2
NO.3; SINGAPORE SPEC,NO.3
NO.4; SINGAPORE SPEC,NO.4
32941ECLIP(FOR OIL COOLER TUBE)
main90466-16004×16iACR50..(AERAS,DLX)..GEN; ACR50..CVT..GL;ACR50..CVT..ARL; ACR50..DLX..GEN201204-201605
NO.1 & NO.2; SINGAPORE SPEC
32942CHOSE, OIL COOLER OUTLET, NO.1
NO.4
NO.1; SINGAPORE SPEC,NO.1
NO.2; SINGAPORE SPEC,NO.2
NO.3; SINGAPORE SPEC,NO.3
3401TRANSAXLE ASSY(CVT)
8716HEATING & AIR CONDITIONING - WATER PIPING
9011606127
main90116-06127
90178C0038
main90178-C0038
9046719022
main90467-19022
91631G0614
main91631-G0614
9167180820
main91671-80820
9415080640
main94150-80640
9613642101
main96136-42101
