33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-28020-A0supersedes 33504-28030-A0i201204-201605

SHELL,TRIM0#; STEERING WHEEL-4-SPOKE & URETHANE,SHELL,TRIM0#

main33504-28020-B0i200601-200812

DK.GRAY,TRIM1#

main33504-28020-C0supersedes 33504-74020-C5i200812-201205

BLACK,TRIM1#

main33504-28020-E0i200601-200812

GREGE,TRIM4#

main33504-28030-C0i201204-201605

BLACK,TRIM2#

main33504-28040-A0supersedes 33504-28020-A0i201204-201605

SHELL,TRIM0#; STEERING WHEEL-4-SPOKE & WOOD & LEATHER,SHELL,TRIM0#

main33504-28040-C5i201605

BLACK & BROWN 22BN119,TRIM2#

main33504-28040-E1i200601-200812

GREGE,TRIM4#; STEERING WHEEL-4-SPOKE & WOOD & LEATHER,GREGE,TRIM4#

main33504-28040-E3supersedes 33504-28020-E0i200812-201204

GREGE & YELLOW BROWN,TRIM4#; STEERING WHEEL-4-SPOKE & WOOD & LEATHER,GREGE & YELLOW BROWN,TRIM4#

main33504-28060-C0i201605

BLACK,TRIM2#; STEERING WHEEL-3-SPOKE & URETHANE,BLACK,TRIM2#

main33504-28100-C0i201605

BLACK/LIGHT BROWN,TRIM2#

main33504-74020-C5i201605-201906

BLACK,TRIM2#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-28010i200601-200812

main33560-28020supersedes 33560-28010i201003-201204

main33560-28030i200812-201204

HEADLAMP-HALOGEN

main33560-28040i200812-201204

HEADLAMP-DISCHARGE & AFS

main33560-28120i201605-201906

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-28050i200812-201204

main35971-28060i201204-201605

35974HOUSING, POSITION INDICATOR, LOWER

main35974-28050i200812-201204

main35974-28060i201605

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-28040i200812-201204

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-28010i200601-200812

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8542637010CLAMP, OVER DRIVE SOLENOID

main85426-37010

9011908C43

main90119-08C43

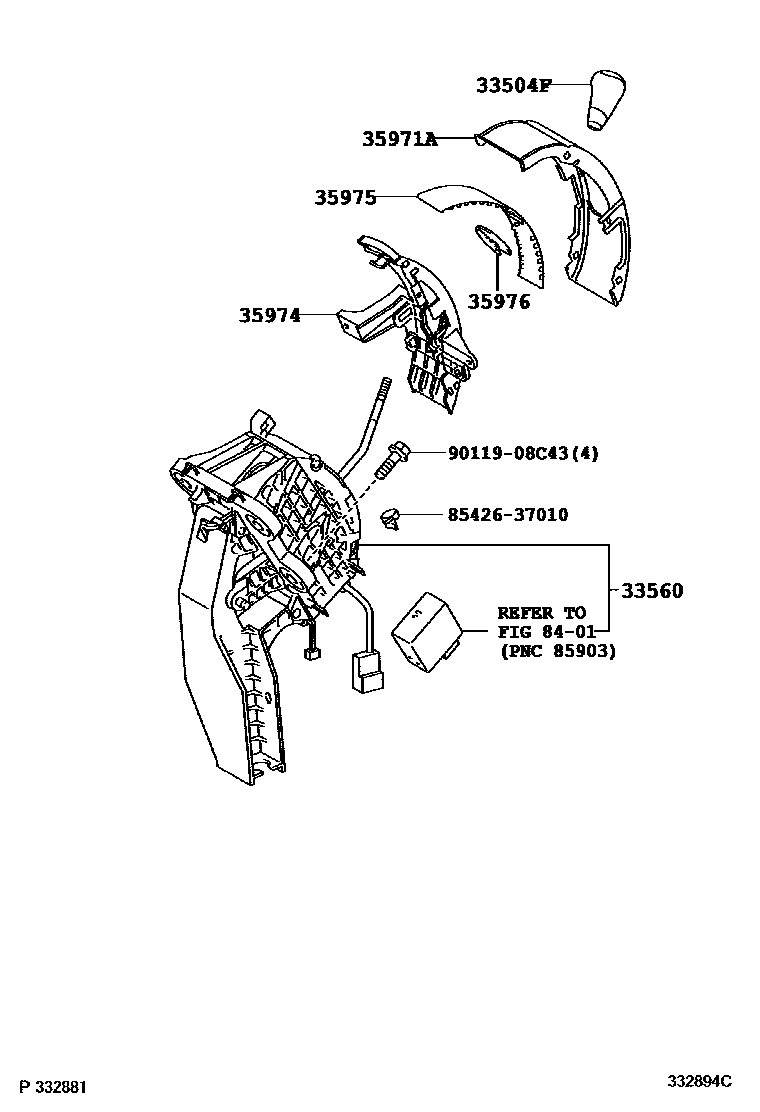

SHIFT LEVER & RETAINER
