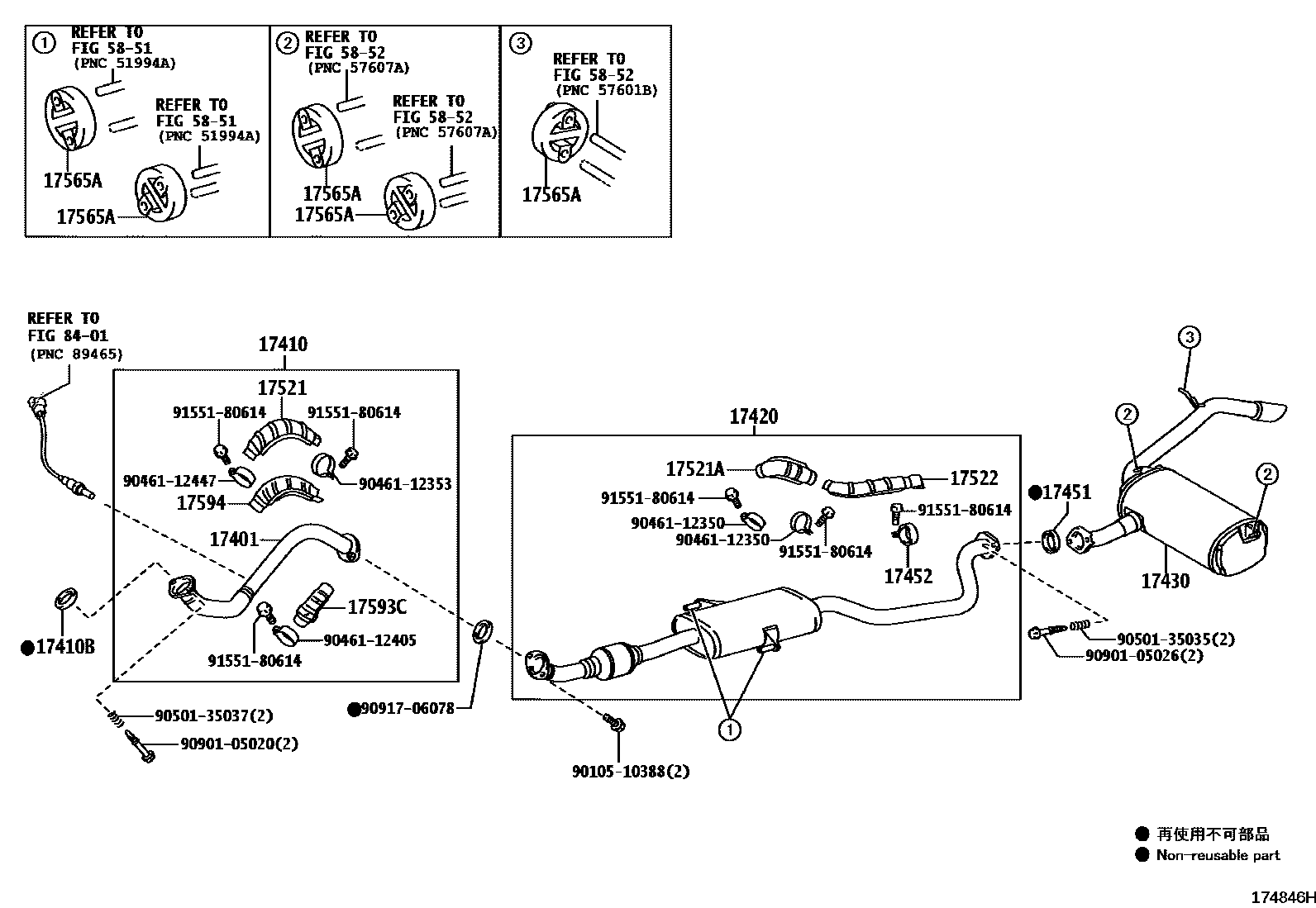

EXHAUST PIPE
17401PIPE SUB-ASSY, EXHAUST, FRONT
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
main17420-28630supersedes 17420-28860i2AZFE..ACR50..GCC;2AZFE..ACR50..RHD..4FC..GEN;2AZFE..ACR50..LHD..DLX..GEN; 2AZFE..ACR50..LHD..GL..GEN200812-201204
EL SALVADOR SPEC; GUATEMALA SPEC; HONDURAS SPEC; JORDAN SPEC; PHILIPPINES SPEC; TAIWAN SPEC; VENEZUELA SPEC
BEIJING SPEC; CHINA SPEC
17430PIPE ASSY, EXHAUST, TAIL
main17430-28780supersedes 17430-28870i2AZFE..ACR50..RHD;2AZFE..ACR50..GCC;2AZFE..ACR50..LHD..DLX..GEN200601-200812
BEIJING SPEC; CHINA SPEC
BEIJING SPEC; CHINA SPEC
BEIJING SPEC; CHINA SPEC
BEIJING SPEC; CHINA SPEC
17451GASKET, EXHAUST PIPE
17452CLAMP, EXHAUST PIPE
17521PROTECTOR, EXHAUST PIPE, FRONT NO.1
17521APROTECTOR, EXHAUST PIPE, UPPER NO.1
17522PROTECTOR, EXHAUST PIPE, UPPER NO.2
17565ASUPPORT, EXHAUST PIPE, NO.4
17593CPROTECTOR, EXHAUST PIPE, LOWER NO.1
17594PROTECTOR, EXHAUST PIPE, NO.2
5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER
5852REAR FLOOR PANEL & REAR FLOOR MEMBER
8401SWITCH & RELAY & COMPUTER
9010510388
main90105-10388
9046112350
main90461-12350
9046112353
main90461-12353
9046112405
main90461-12405
9046112447
main90461-12447
9050135035
main90501-35035
9050135037
main90501-35037
9090105020
main90901-05020
9090105026
main90901-05026
9091706078
main90917-06078
9155180614
main91551-80614
27 parts on this diagram · 2 diagrams in section
