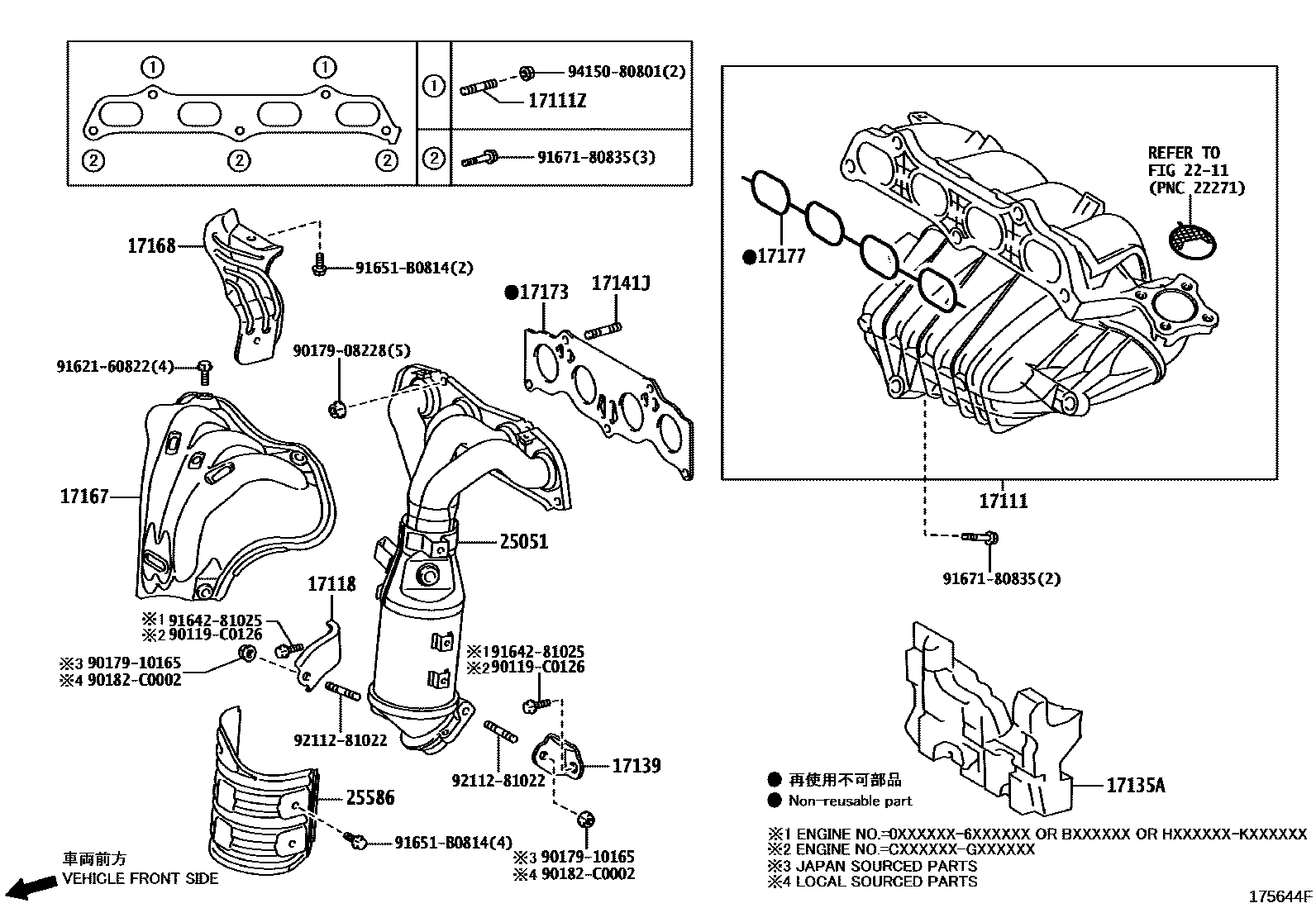

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17111-31141i2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN200611-201605

main17120-28170i2AZFE..ACR50200601-201112

sub17120-28171

main17120-28171i2AZFE..ACR50..DLX,GL201201-201906

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026i2AZFE..ACR50..(AERAS,DLX)..GEN201204-201605

2AZ-FE,*194

main90126-08026i2AZFE..ACR50200601-201605

*195

main90126-08026i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)201204-201605

2AZ-FE,*195

main90126-08026i2AZFE..ACR50..AERAS201605-201906

17118STAY, MANIFOLD

main17118-28080i2AZFE..ACR50200601-201605

*195

main17118-28080i2AZFE..ACR50..(AERAS,DLX)..GEN201204-201605

SINGAPORE SPEC&2AZ-FE,*195

main17118-28080i2AZFE..ACR50..(AERAS,DLX)..GEN201204-201605

2AZ-FE,*195

main17118-28080i2AZFE..ACR50..(AERAS,DLX)..GEN201204-201605

2AZ-FE,*194

main17118-28080i2AZFE..ACR50..AERAS201605-201906

main17118-31040i2GRFE..GSR50200611-201605

17135AINSULATOR, INTAKE MANIFOLD, NO.1

main17135-28011i2AZFE..ACR50200601-201906

17139STAY, MANIFOLD, NO.2

main17139-28050i2AZFE..ACR50200601-201605

*195

main17139-28050i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)201204-201605

SINGAPORE SPEC&2AZ-FE,*195

main17139-28050i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)201204-201605

2AZ-FE,*194

main17139-28050i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)201204-201605

2AZ-FE,*195

main17139-28050i2AZFE..ACR50..AERAS201605-201906

17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)

main90126-08037i2AZFE..ACR50200601-201605

*195

main90126-08037i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)201204-201605

2AZ-FE,*194

main90126-08037i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)201204-201605

2AZ-FE,*195

main90126-08037i2AZFE..ACR50..AERAS201605-201906

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-28060i2AZFE..ACR50200601-201605

*195

main17167-28060i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)201204-201605

SINGAPORE SPEC&2AZ-FE,*195

main17167-28060i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)201204-201605

2AZ-FE,*195

main17167-28060i2AZFE..ACR50..AERAS201605-201906

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-0H050i2AZFE..ACR50..CVT201101-201204

(L),*195

main17168-0H050i2AZFE..ACR50..CVT201101-201204

2AZ-FE,(L),*195

main17168-28030i2AZFE..ACR50..ARL200601-201605

*195

main17168-28030i2AZFE..ACR50..CVT201007-201204

(J),*195

main17168-28030i2AZFE..ACR50..CVT201007-201204

2AZ-FE,(J),*195

main17168-28030i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)201204-201605

SINGAPORE SPEC&2AZ-FE,*195

main17168-28030i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)201204-201605

2AZ-FE,*195

main17168-28030i2AZFE..ACR50..AERAS201605-201906

main17168-31020i2GRFE..GSR50200611-200703

sub17168-31021

main17168-31021i2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN200704-201605

sub17168-31050

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-28010i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)200601-201605

*195

main17173-28010i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)201204-201605

SINGAPORE SPEC&2AZ-FE,*195

main17173-28010i2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)201204-201605

2AZ-FE,*195

main17173-28010i2AZFE..ACR50..AERAS201605-201906

main17173-31020i2GRFE..GSR50200611-201605

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-28010i2AZFE..ACR50200601-201112

sub17177-28031

main17177-28031i2AZFE..ACR50..ARL201201-201906

main17177-31040i2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN200611-201605

2211

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-0H140i2AZFE..ACR50..CVT201101-201204

(L),*195

main25051-0H140i2AZFE..ACR50..CVT201101-201204

2AZ-FE,(L),*195

main25051-28340i2AZFE..ACR50..4FC..(GCC,GEN)200601-201605

*114=TOYOTA/28340/Y,*195

main25051-28340i2AZFE..ACR50..4FC201605

*114=TOYOTA/28340/Y

main25051-28360i2AZFE..ACR50200601-200901

*114=TOYOTA/28360/Y,*195

sub25051-28340

main25051-28470i2AZFE..ACR50..(AERAS,DLX)..GEN201204-201605

2AZ-FE,*195

main25051-28470i2AZFE..ACR50..DLX..GEN201204-201605

*195

main25051-28470i2AZFE..ACR50..DLX..GEN201204-201605

SINGAPORE SPEC&2AZ-FE,*195

main25051-28470i2AZFE..ACR50..CVT201007-201204

2AZ-FE,(J),*195

main25051-28470i2AZFE..ACR50..CVT201007-201204

(J),*195

main25051-28500i2AZFE..ACR50..DLX..GEN201204-201605

*195

main25051-28500i2AZFE..ACR50..DLX..GEN201204-201605

SINGAPORE SPEC,*195

main25051-28500i2AZFE..ACR50..AERAS201605-201906

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-0H050i2AZFE..ACR50..CVT201101-201204

(L),*195

main25586-0H050i2AZFE..ACR50..CVT201101-201204

2AZ-FE,(L),*195

main25586-28090i2AZFE..ACR50..DLX..GEN201204-201605

2AZ-FE,*195

main25586-28090i2AZFE..ACR50200601-201605

*195

main25586-28090i2AZFE..ACR50..4FC..(GCC,GEN)201007-201204

(J),*195

main25586-28090i2AZFE..ACR50..4FC..(GCC,GEN)201007-201204

2AZ-FE,(J),*195

main25586-28090i2AZFE..ACR50..DLX,GL201605-201906

main25586-28090i2AZFE..ACR50..(AERAS,DLX)..GEN201204-201605

SINGAPORE SPEC&2AZ-FE,*195

90119C0126

main90119-C0126

9017908228

main90179-08228

9017910165

main90179-10165

90182C0002

main90182-C0002

9162160822

main91621-60822

9164281025

main91642-81025

91651B0814

main91651-B0814

9167180835

main91671-80835

9211281022

main92112-81022

9415080801

main94150-80801

23 parts on this diagram · 3 diagrams in section
