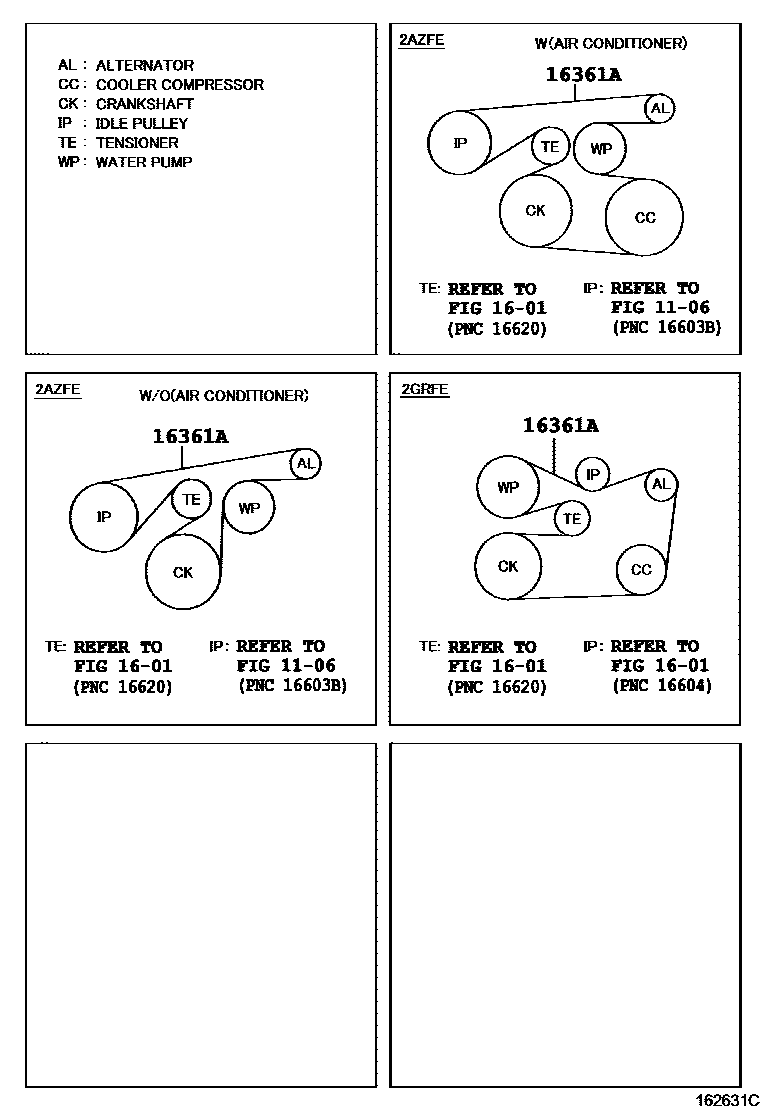

V-BELT

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02652i200812-201204

*195,BANDO; MALAYSIA SPEC&FRONT AIR CONDITIONER-DOP KIT; SINGAPORE SPEC&FRONT AIR CONDITIONER-DOP KIT

main90916-02653i200812-201205

*195,MITSUBOSHI

main99367-C1550i201204-201409

main99367-K1550i201611

main90916-02596i200601-200812

MALAYSIA SPEC; SINGAPORE SPEC

main90916-02599i201204-201605

2AZ-FE,*194
