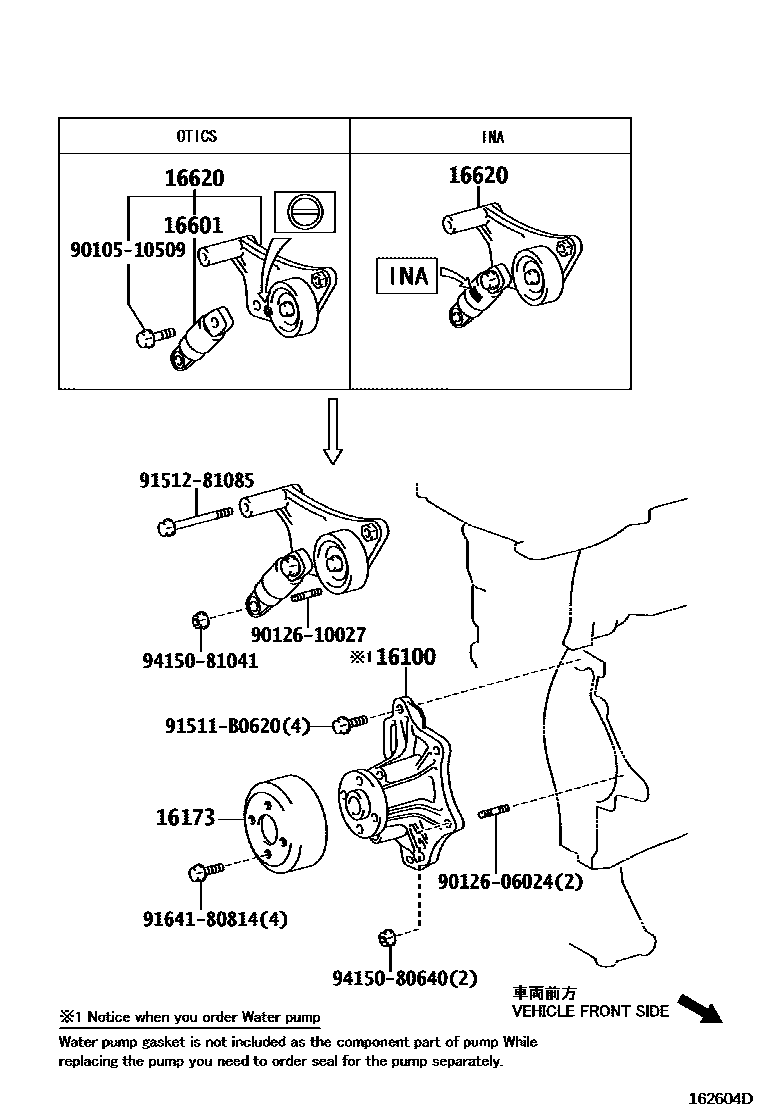

WATER PUMP

0001 1*195 0002 1*195 0003 1*194 0005 1 0006 1

16100PUMP ASSY, ENGINE WATER

main16100-28040i2AZFE..ACR50200601-200701

*195

main16100-28041i2AZFE..ACR50..(AERAS,DLX)..GEN; 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)201204-201605

*195; 2AZ-FE,*195

main16100-39455i2GRFE..GSR50200812-200903

main16100-39456i2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN201204-201605

main16100-0H040i2AZFE..ACR50..(AERAS,DLX)..GEN201204-201605

2AZ-FE,*194

16173PULLEY, WATER PUMP

main16173-28020i2AZFE..ACR50..GCC,GEN200812-201204

*195

main16173-31010i2GRFE..GSR50..RHD..GEN201204-201409

main16173-0H040i2AZFE..ACR50..CVT201003-201204

2AZ-FE,*194

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16601-28020i2AZFE..ACR50200601-200610

*195,OTICS

main16601-28021i2AZFE..ACR50200610-200804

*195,OTICS

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0H020i2AZFE..ACR50200804-200812

*195

main16620-0H021i2AZFE..ACR50..DLX,GL201605

main16620-28040i2AZFE..ACR50200601-200610

*195

main16620-28041i2AZFE..ACR50200610-200804

*195

main16620-31040i2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN201204-201605

9010510509

main90105-10509

9012606024

main90126-06024

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

12 parts on this diagram · 5 diagrams in section
