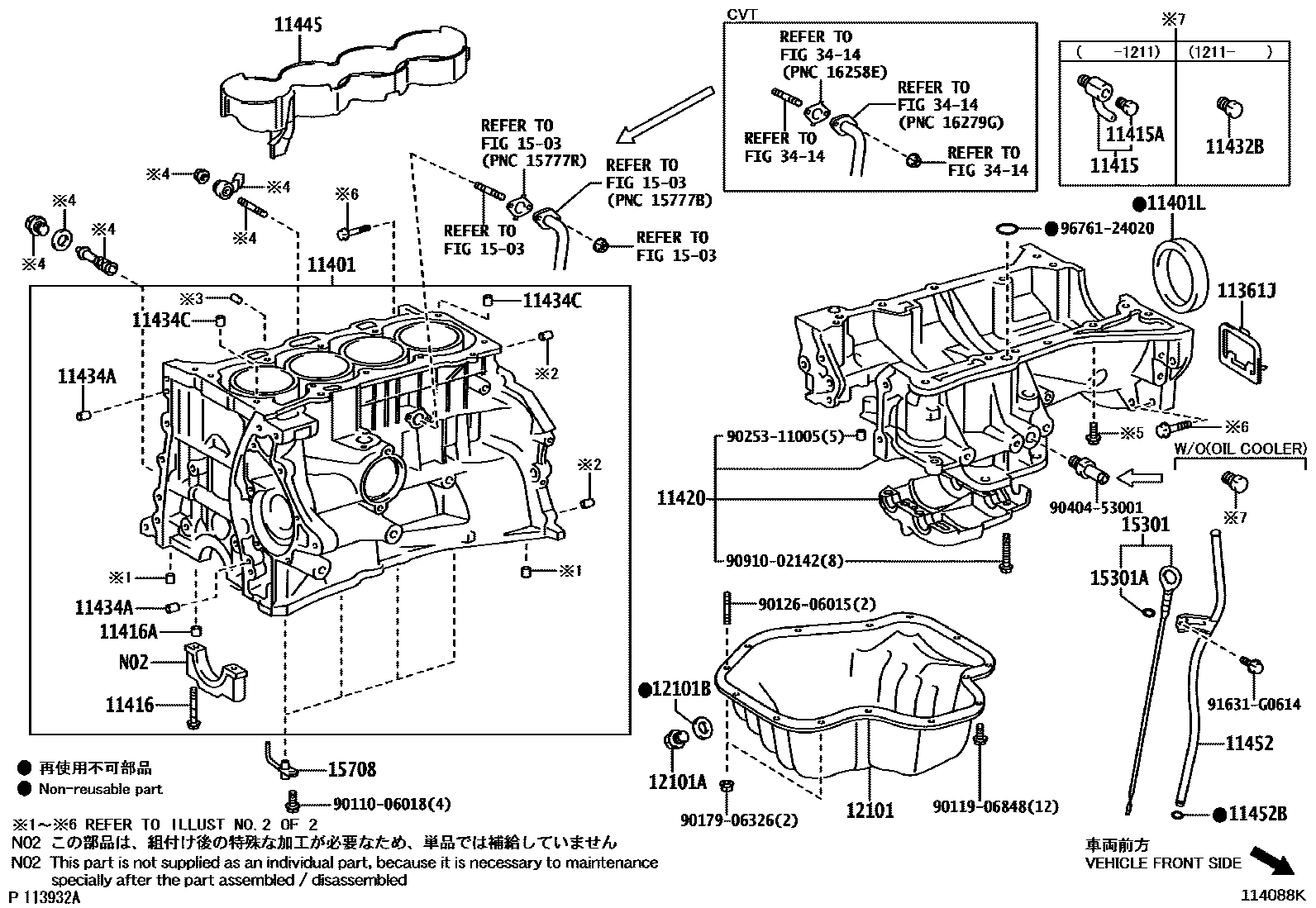

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11401BLOCK SUB-ASSY, CYLINDER
main11410-29345i2AZFE..ACR50..(AERAS,DLX)..GEN; 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN)201204-201212
*195; 2AZ-FE,*195
*195; 2AZ-FE,*195
2AZ-FE,*194
2AZ-FE,*194
11401LSEAL, ENGINE REAR OIL
*195
*195
2AZ-FE,*194
2AZ-FE,*194
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
LH,TYPE A:REF.ILL.
*195; 2AZ-FE,*195
RH
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*195
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
*195
(L),*195
2AZ-FE,(L),*194
11420CRANKCASE ASSY, STIFFENING
(L),*195
(L),*195; 2AZ-FE,(L),*194; 2AZ-FE,(L),*195
*195
(J),*195; 2AZ-FE,(J),*194
11432BPLUG, W/HEAD TAPER SCREW, NO.2
*195; 2AZ-FE,*195; SINGAPORE SPEC&2AZ-FE,*195; SINGAPORE SPEC,*195
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
L=18,OD=8,*195
L=18,OD=8,2AZ-FE,(L),*194
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=18,OD=8
L=12,OD=14
11445SPACER, CYLINDER BLOCK WATER JACKET
*195
2AZ-FE,*194
11452GUIDE, OIL LEVEL GAGE
*195
2AZ-FE,*194
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
*195
2AZ-FE,(L),*194
12101PAN SUB-ASSY, OIL
2AZ-FE,(L),*194
12101APLUG(FOR OIL PAN DRAIN)
main90341-12012i2AZFE..ACR50..(AERAS,DLX)..GEN; 2AZFE..ACR50..CVT;2AZFE..ACR50..4FC..(GCC,GEN); 2GRFE..GSR50..ARL,GCC;2GRFE..GSR50..LHD..GEN201204-201605
*195; 2AZ-FE,*194; 2AZ-FE,*195
12101BGASKET(FOR OIL PAN DRAIN PLUG)
*195
2AZ-FE,(L),*194
1503ENGINE OIL COOLER
15301GAGE SUB-ASSY, OIL LEVEL
*195
2AZ-FE,*194
2AZ-FE,*194
15301ARING, O(FOR OIL LEVEL GAGE)
*195
15708NOZZLE SUB-ASSY, OIL, NO.1
*195
*195
3414OIL COOLER & TUBE(CVT)
9011006018
main90110-06018
9011906848
main90119-06848
9012606015
main90126-06015
9017906326
main90179-06326
9025311005
main90253-11005
9040453001
main90404-53001
9091002142
main90910-02142
91631G0614
main91631-G0614
9676124020
main96761-24020
31 parts on this diagram · 7 diagrams in section
