SHORT BLOCK ASSEMBLY

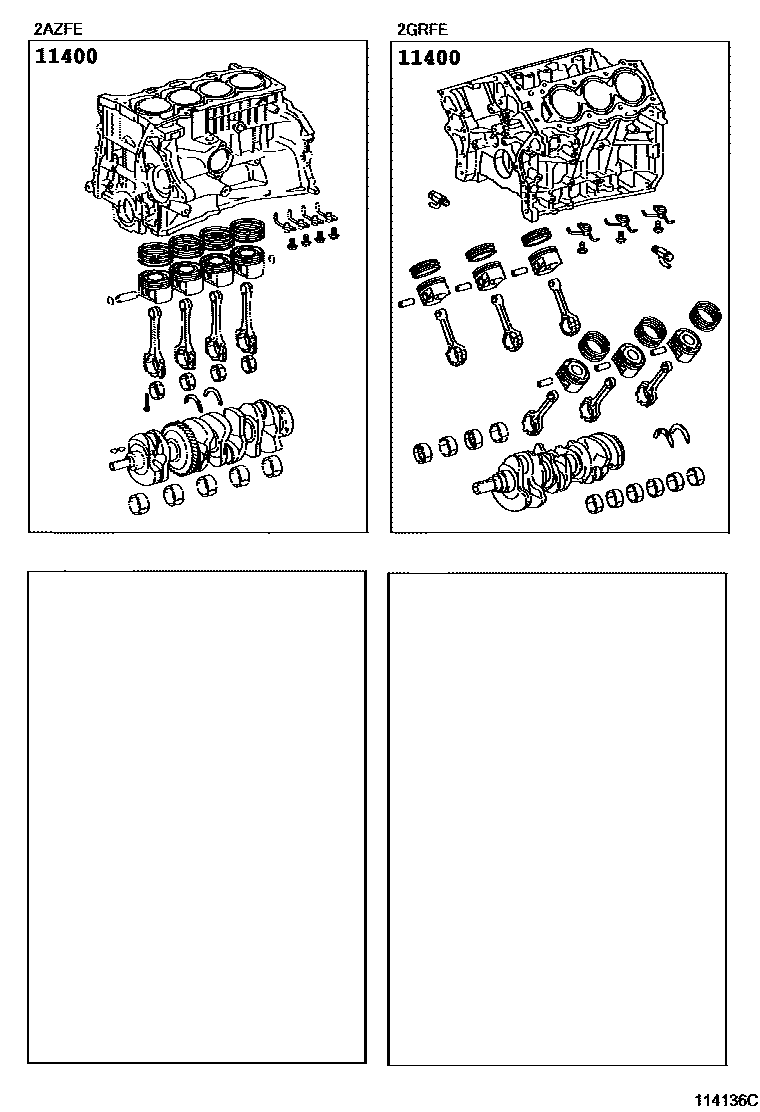

Parts diagram

11400BLOCK ASSY, SHORT

main11400-28400i200601-200812

main11400-28510i201605

main11400-31160i200611-200703

main11400-31161i200812-200905

main11400-31163i201204-201210

main11400-31360i201210-201407

main11400-39115i201605

main11400-0H190supersedes 11400-28510i201204-201605

2AZ-FE,*194

1 parts on this diagram · 1 diagram in section
