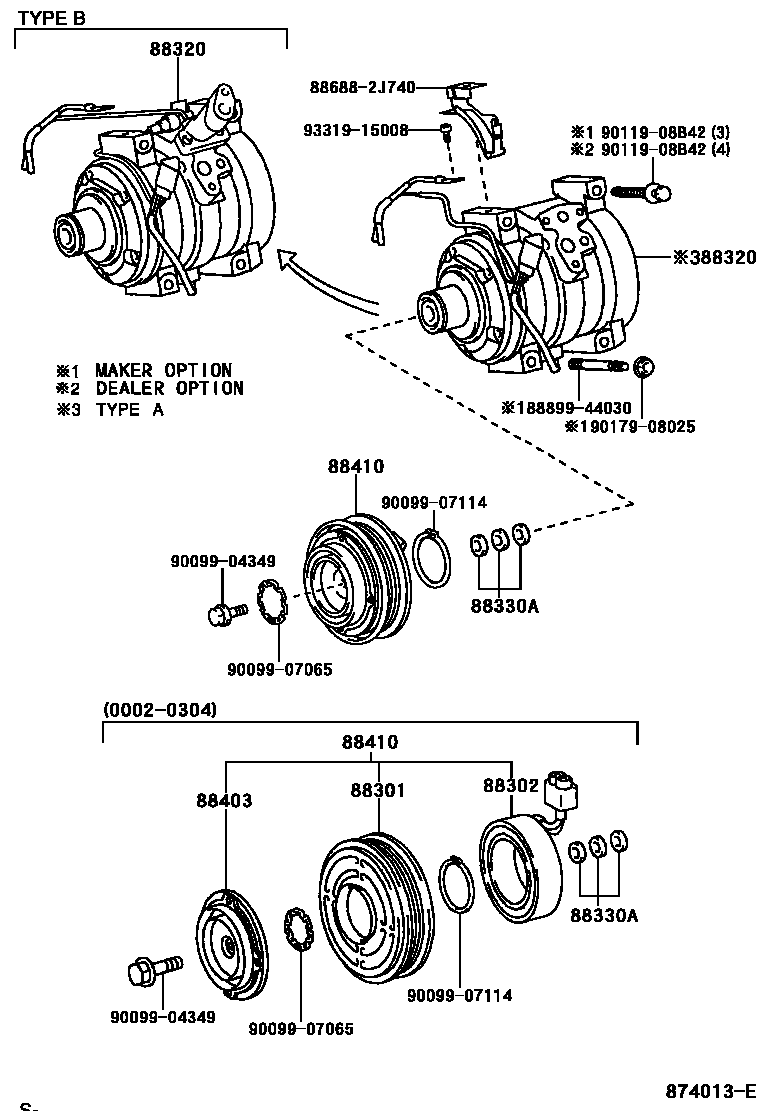

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-28090iACR30200002-200304

main88412-28100iCLR30200102-200304

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-44010iACR30,CLR30200002-200304

88320COMPRESSOR ASSY, COOLER

main88320-28350iACR30..ARL,EUR,GEN; ACR30..GCC200304-200308

main88320-28370iCLR30200102-200304

main88320-28371iCLR30200307-200601

main88320-28390iACR30..GCC200105-200304

TYPE B:REFER TO ILLUSTRATION

main88320-28391iACR30..GCC200307-200601

TYPE B:REFER TO ILLUSTRATION

main88320-28410iACR30200308-200601

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iACR30,CLR30200002-200304

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-28030iCLR30200102-200304

main88403-32010iACR30200002-200304

88410CLUTCH ASSY, MAGNET

main88410-28200iACR30200002-200304

main88410-28250iCLR30200102-200304

main88410-28260iCLR30200304-200601

main88410-35400iACR30200304-200601

886882J740BRACKET, COOLER DIAPHRAGM

main88688-2J740

8889944030COVER, EVAPORATOR

main88899-44030

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

9017908025

main90179-08025

9331915008

main93319-15008

14 parts on this diagram · 3 diagrams in section
