HORN

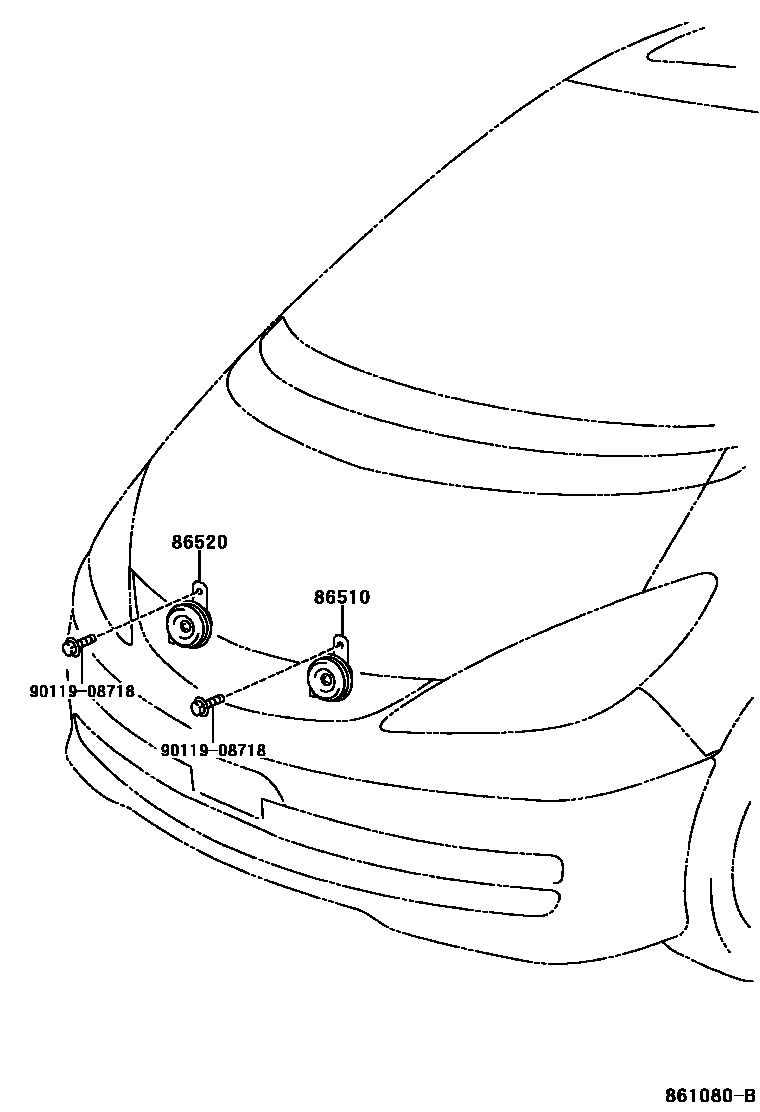

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-28120i200304

CHINA SPEC

main86510-28130i200002-200304

main86510-33170i200002-200304

CHINA SPEC

86520HORN ASSY, LOW PITCHED

main86520-28170i200304

CHINA SPEC

main86520-28180i200304

main86520-35100i200002-200304

CHINA SPEC

9011908718

main90119-08718

3 parts on this diagram · 1 diagram in section
