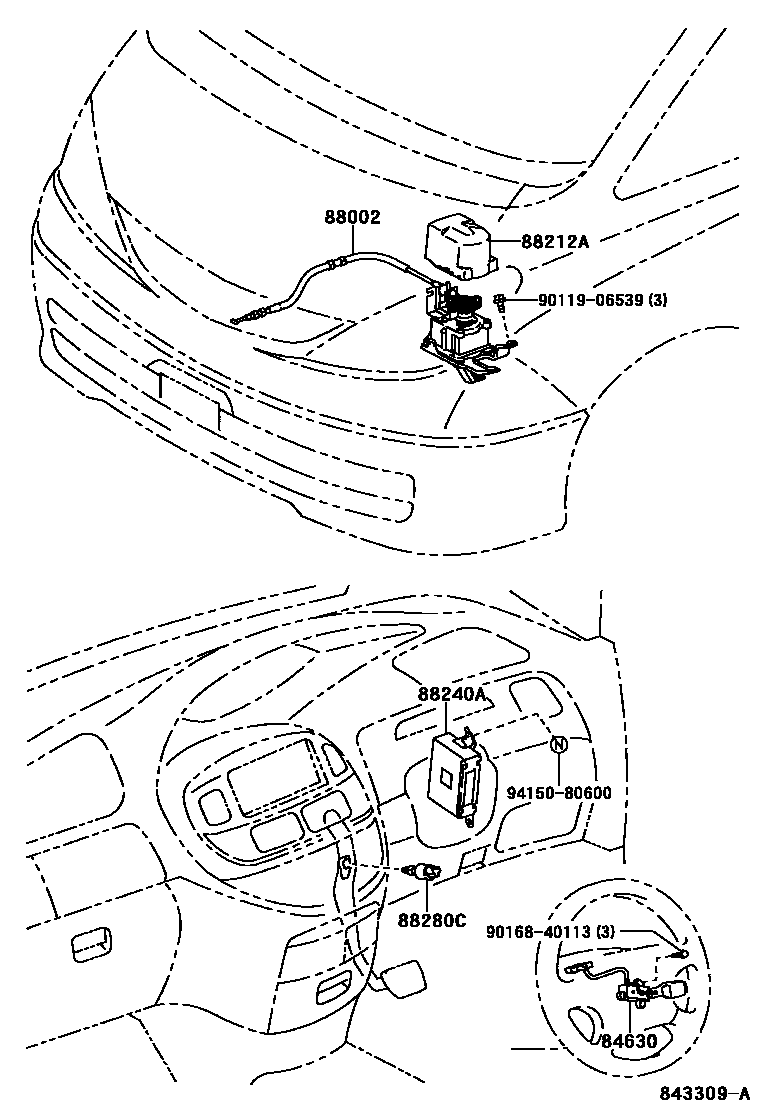

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1 0003 1 0004 1

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-28070iACR30..GL..GEN;ACR30,CLR30..ARL,EUR,GCC200002-200304

main84632-34010iACR30,CLR30200304-200409

main84632-34011iACR30,CLR30200409-200601

88002CRUISE CONTROL(AUTO DRIVE) SET

main88002-28110iACR30..GL..GEN;ACR30..ARL,EUR,GCC200002-200304

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-33010iACR30..GL..GEN;ACR30..ARL,EUR,GCC200002-200304

88240ACOMPUTER ASSY, DISTANCE CONTROL

main88240-28200iACR30..RHD200002-200304

main88240-28210iACR30..GL..GEN;ACR30..LHD..(EUR,GCC)200002-200304

88280CSWITCH ASSY, CLUTCH

main88280-14030iACR30,CLR30..MTM200002-200304

9011906539

main90119-06539

9016840113

main90168-40113

9415080600

main94150-80600

8 parts on this diagram · 4 diagrams in section
