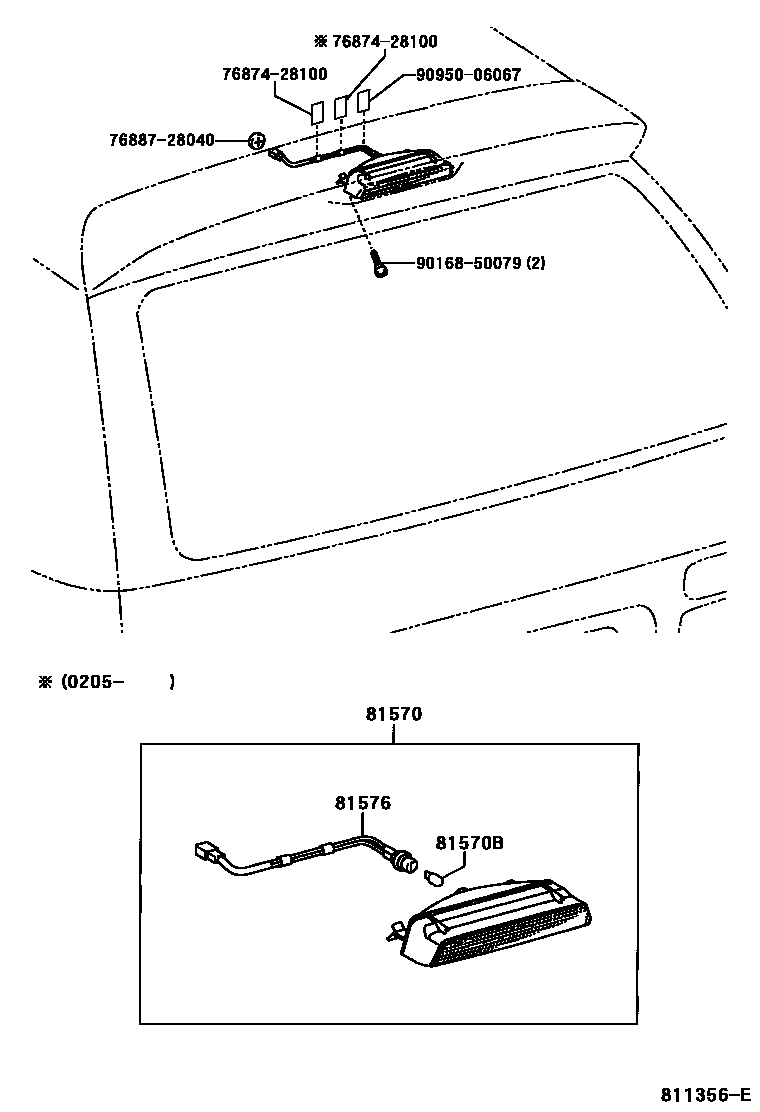

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-28180iACR30,CLR30200002-200304

81570BBULB (FOR CENTER STOP LAMP)

main90981-11055iACR30,CLR30200002-200304

12V 16W

main90981-11059iACR30,CLR30..08S..MTM200304-200404

12V 16W

81576SOCKET & WIRE, CENTER STOP LAMP

main81576-28180iACR30,CLR30200002-200304

7687428100PROTECTOR, REAR SPOILER, NO.3

main76874-28100

7688728040SEAL, REAR SPOILER

main76887-28040

9016850079

main90168-50079

9095006067

main90950-06067

7 parts on this diagram · 1 diagram in section
