ASH RECEPTACLE

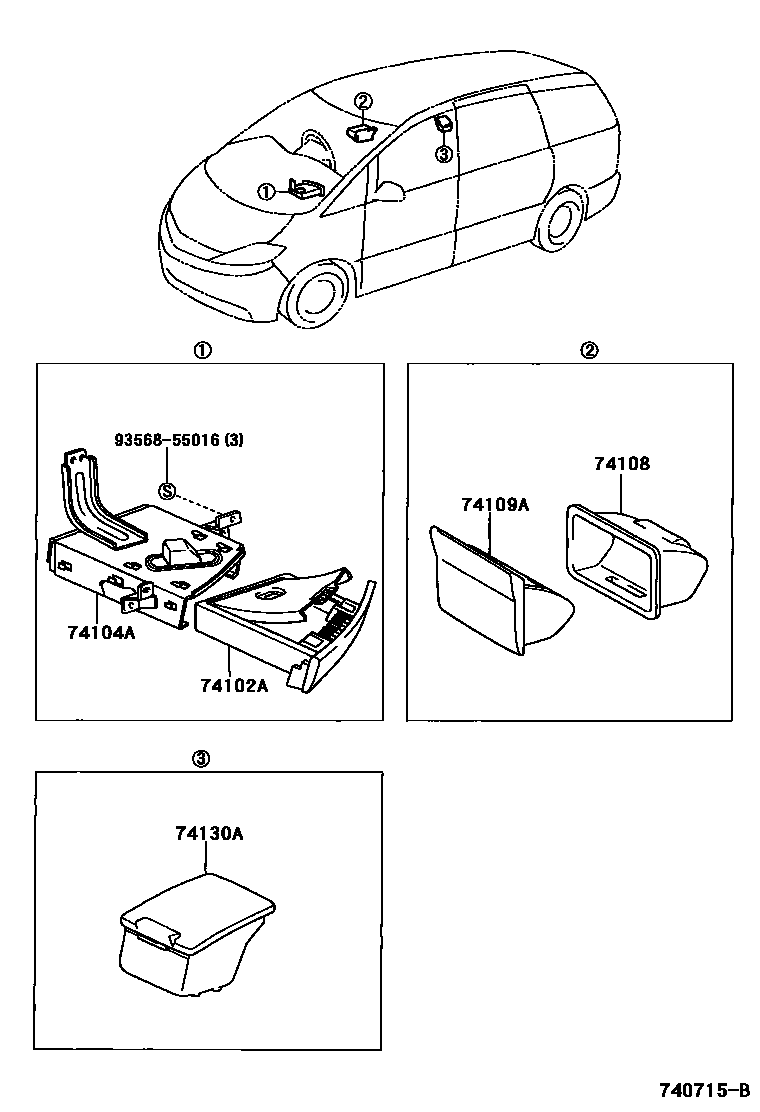

Parts diagram

74102ARECEPTACLE ASSY, FRONT ASH

main74102-28060-B0i200002-200304

LT. BLUISH GRAY,TRIM11

main74102-28060-B1i200002-200304

MD.CHARCOAL,TRIM12

main74102-28060-B2i200304-200401

MD.GRAY,TRIM1#

main74102-28070-B0i200002-200304

LT. BLUISH GRAY,TRIM11

main74102-28070-B1i200002-200304

MD.CHARCOAL,TRIM12

main74102-28070-B2i200304-200401

MD.GRAY,TRIM1#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-28100i200002-200304

main74104-28110i200304-200401

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-28010i200002-200304

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-28010-B0i200002-200304

LT. BLUISH GRAY,TRIM11

main74109-28010-B1i200002-200304

MD.CHARCOAL,TRIM12

main74109-28010-B4i200304-200601

MD.GRAY,TRIM1#

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-28020-B0i200102-200304

TRIM = TYPE A-*104,LT. BLUISH GRAY,TRIM11

main74130-28020-B1i200105-200304

MD.CHARCOAL,TRIM12

main74130-28020-B2i200102-200304

TRIM = TYPE A-*104,BLUISH GRAY,TRIM11; TRIM = TYPE G-*104,BLUISH GRAY,TRIM11

main74130-28020-B3i200304-200601

MD.GRAY,TRIM1#

9356855016

main93568-55016

6 parts on this diagram · 1 diagram in section
