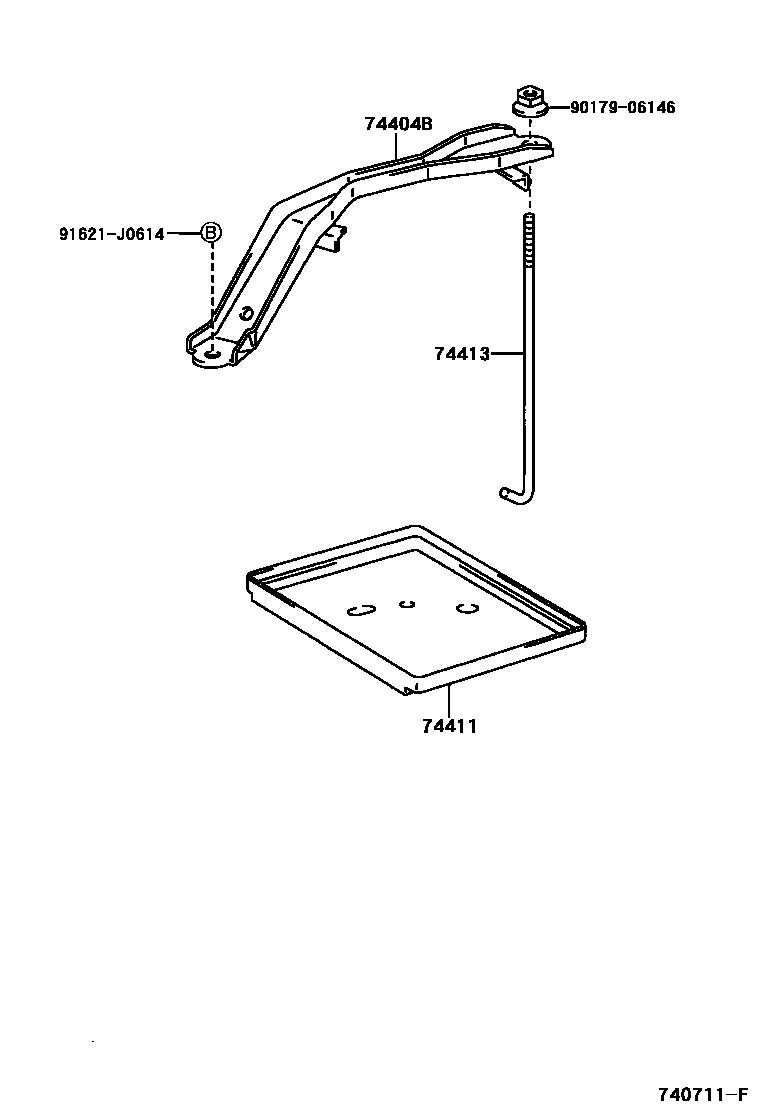

BATTERY CARRIER

74404BCLAMP SUB-ASSY, BATTERY

main74404-28110iACR30..ARL,EUR,GEN200002-200405

W(55D23L BATTERY)

main74404-28110iCLR30;ACR30..GCC200102-200304

main74404-28120iACR30..ARL,EUR200002-200304

W(46B24L BATTERY)

74411CARRIER, BATTERY

main74431-20090iACR30..ARL,EUR200002-200304

W(46B24L BATTERY)

main74431-20100iCLR30200102-200304

main74431-28010iACR30..GCC200105-200304

main74431-28010iACR30..ARL,EUR,GEN200002-200405

W(55D23L BATTERY)

74413BOLT, BATTERY CLAMP

main74451-10060iACR30,CLR30200002-200304

9017906146

main90179-06146

91621J0614

main91621-J0614

5 parts on this diagram · 1 diagram in section
