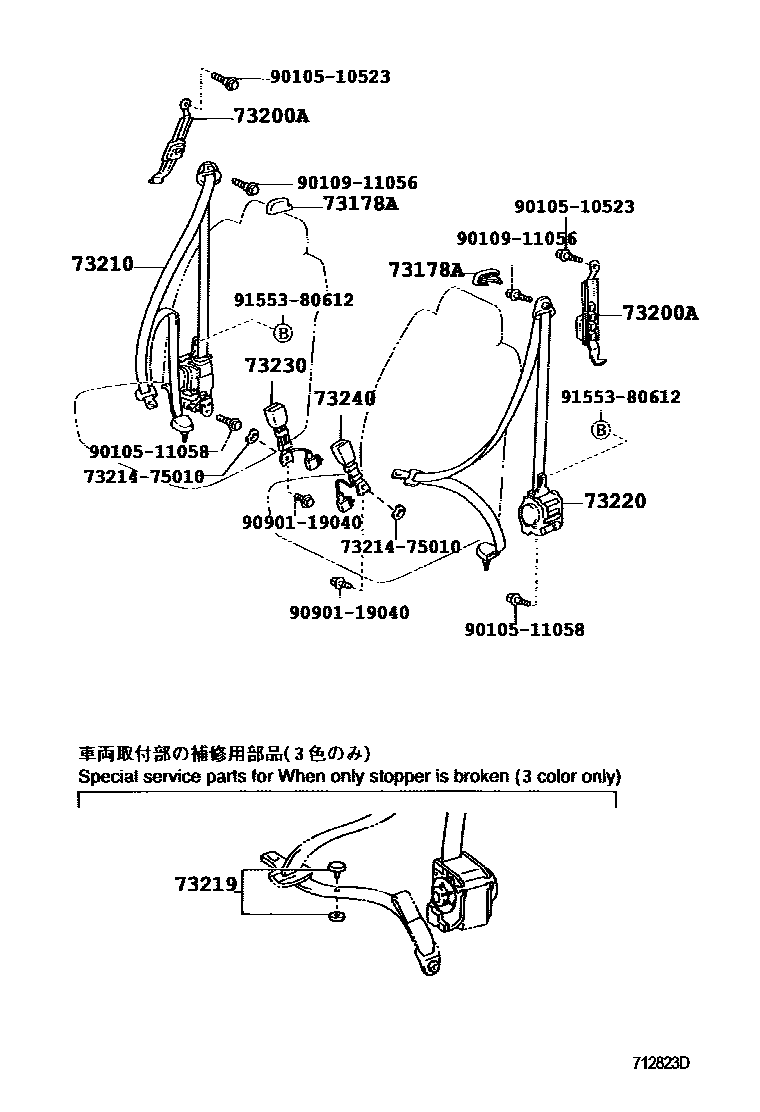

SEAT BELT

0001 1FRONT 0002 1REAR NO.1 0004 1REAR NO.1 0005 1REAR NO.1 0006 1REAR NO.1(TURN SEAT) 0007 1REAR NO.2

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33010-B2×2iACR30200002-200006

LT.BLUISH GRAY,TRIM11

main73178-33010-B5×2iACR30200002-200006

MD.CHARCOAL,TRIM12

main73178-33020-B1×2iACR30,CLR30200006-200304

MD.CHARCOAL,TRIM12

main73178-33020-B2×2iACR30,CLR30200006-200304

LT. BLUISH GRAY,TRIM11

main73178-33020-B3×2iACR30,CLR30200304-200601

LT.GRAY,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-28030-B0×2iACR30,CLR30200002-200304

LT. BLUISH GRAY,TRIM11

main73200-28030-B1×2iACR30,CLR30200002-200304

MD.CHARCOAL,TRIM12

main73200-28030-B2×2iACR30,CLR30200304-200601

LT.GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-28670-B0iACR30200002-200006

BLUISH GRAY,TRIM11

main73210-28670-B1iACR30200002-200006

GRAY,TRIM12

main73210-28690-B0iACR30,CLR30200006-200304

BLUISH GRAY,TRIM11

main73210-28690-B1iACR30,CLR30200006-200304

GRAY,TRIM12

main73210-28750-C1iACR30..06S..ATM;ACR30,CLR30..LHD..MTM; ACR30..LHD..07S..ATM..EUR200304-200311

BLACK,TRIM1#

main73210-28760-C1iACR30..GEN200305-200408

CHINA SPEC,BLACK,TRIM1#

main73210-28761-C1iACR30..GEN200408-200601

CHINA SPEC,BLACK,TRIM1#

main73210-28770-C0iACR30,CLR30..LHD..EUR200311-200601

BLACK,TRIM1#

73219STOPPER, TONGUE PLATE

main73219-33010iACR30..08S..ATM;ACR30,CLR30..06S,07S200304

BLACK

main73219-33020iACR30,CLR30..08S..MTM200304-200405

GRAY

main73219-33030iACR30,CLR30..08S..MTM200304-200405

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-28630-B0iACR30200002-200006

BLUISH GRAY,TRIM11

main73220-28630-B1iACR30200002-200006

GRAY,TRIM12

main73220-28650-B0iACR30,CLR30200006-200304

BLUISH GRAY,TRIM11

main73220-28650-B1iACR30,CLR30200006-200304

GRAY,TRIM12

main73220-28710-C1iACR30,CLR30..RHD..MTM; ACR30..RHD..ATM..EUR200304-200311

BLACK,TRIM1#

main73220-28720-C1iACR30..GEN200305-200408

CHINA SPEC,BLACK,TRIM1#

main73220-28721-C1iACR30..GEN200408-200601

CHINA SPEC,BLACK,TRIM1#

main73220-28730-C0iACR30..08S..ATM..EUR200311-200405

BLACK,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-28230-B0iACR30..ARL,GCC200002-200304

BLUE GRAY,TRIM11

main73230-28230-B1iACR30..ARL,GCC200002-200304

DK.CHARCOAL,TRIM12

main73230-28240-B0iACR30,CLR30..EUR,GEN200002-200304

BLUE GRAY,TRIM11

main73230-28240-B1iACR30,CLR30..EUR,GEN200002-200304

DK.CHARCOAL,TRIM12

main73230-28360-B0iCLR30;ACR30..08S..MTM;ACR30..(06S,07S)..EUR200311-200601

DK.GRAY,TRIM1#

main73230-28370-B0iACR30..(07S,08S)..ATM..EUR; ACR30..06S..ATM;ACR30,CLR30..MTM200304-200311

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-28240-B0iACR30,CLR30200002-200304

BLUE GRAY,TRIM11

main73230-28240-B1iACR30,CLR30200002-200304

DK.CHARCOAL,TRIM12

main73230-28360-B0iACR30..08S..ATM..EUR200311-200405

DK.GRAY,TRIM1#

main73230-28370-B0iACR30..(07S,08S)..ATM..EUR; ACR30..06S..ATM;ACR30,CLR30..MTM200304-200311

DK.GRAY,TRIM1#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511058

main90105-11058

9010911056

main90109-11056

9090119040

main90901-19040

9155380612

main91553-80612

13 parts on this diagram · 6 diagrams in section
