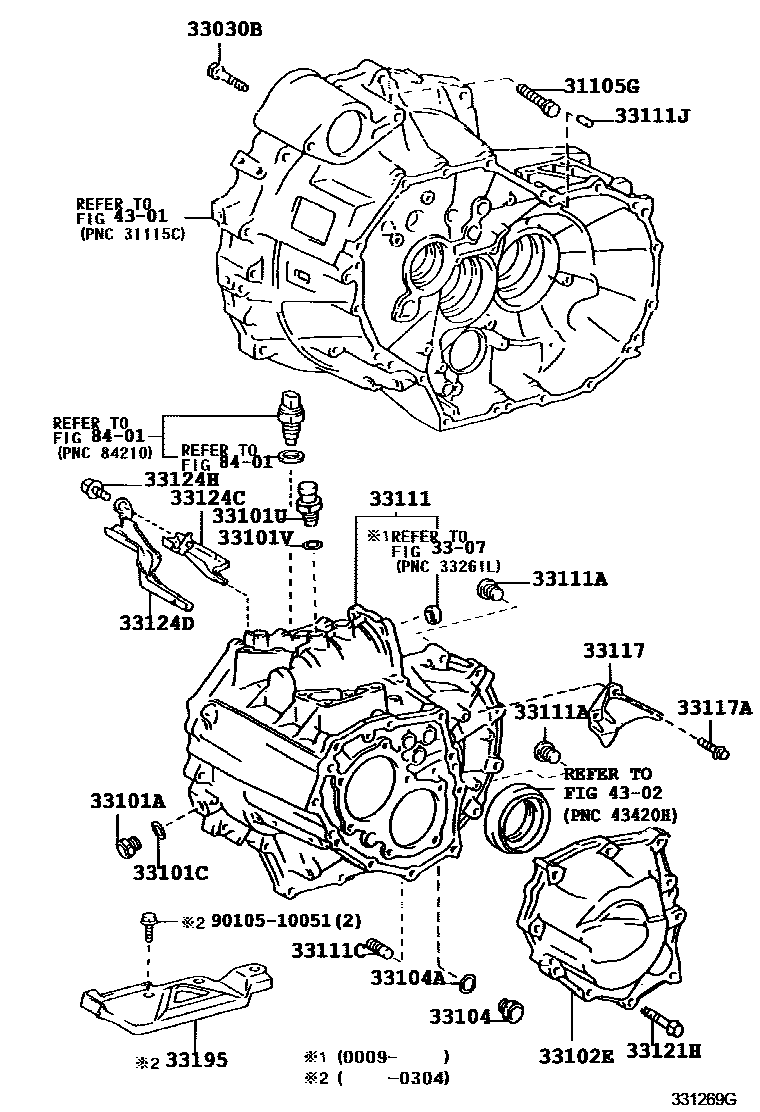

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1E352 0002 1E353

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077iCLR30..06S,07S200304

*10-1.25PX43-26

main90105-12147iACR30..MTM200002-200304

*12-1.25PX74.5-25

main90119-12168×3iCLR30200102-200304

*12-1.25PX55-30

main90119-12252×2iACR30..MTM200002-200304

*12-1.25PX60-30

main91512-61060×2iACR30..08S..MTM200304-200404

*10-1.25PX60-30

main91512-61065iACR30..MTM200002-200304

*10-1.25PX65-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08126×17iACR30,CLR30..(06S,07S)..MTM200304

*8-1.25PX45-27.5

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iACR30,CLR30..MTM200002-200304

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iACR30,CLR30..MTM200002-200304

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03148iACR30,CLR30..MTM200002-200304

33101VGASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)

main90430-18008iACR30,CLR30..MTM200002-200304

33102ECOVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12041iACR30,CLR30..MTM200002-200304

main33102-12042iACR30,CLR30..08S..MTM200306-200404

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iACR30,CLR30..MTM200002-200304

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iACR30,CLR30..MTM200002-200304

33111CASE, MANUAL TRANSMISSION

main33101-20090iACR30..MTM200301-200304

main33101-28040iACR30..MTM200009-200107

main33101-28041iACR30..MTM200107-200301

main33101-28051iCLR30200102-200107

main33101-28052iCLR30200107-200301

main33101-28060iCLR30..06S,07S200304

main33111-28050iACR30..MTM200002-200009

33111APLUG, MANUAL TRANSMISSION CASE

main90341-12004×2iACR30,CLR30..MTM200006-200304

33111CPLUG(FOR TRANSMISSION CASE)

main90340-10005iACR30..MTM200006-200304

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4iACR30,CLR30..MTM200002-200304

L=23,OD=8

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-20020iACR30,CLR30..08S..MTM200304-200404

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040×2iACR30,CLR30..MTM200002-200304

main91641-H0820×2iACR30,CLR30..08S..MTM200304-200404

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08630×10iACR30,CLR30..MTM200002-200304

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-28050iACR30,CLR30..MTM200002-200304

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-28060iACR30,CLR30..MTM200002-200304

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648×2iACR30,CLR30..MTM200002-200304

main90119-08830×2iACR30,CLR30..08S..MTM200304-200404

33195HANGER, TRANSMISSION CASE, NO.1

main33195-33020iACR30..MTM200002-200304

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510051

main90105-10051

25 parts on this diagram · 2 diagrams in section
