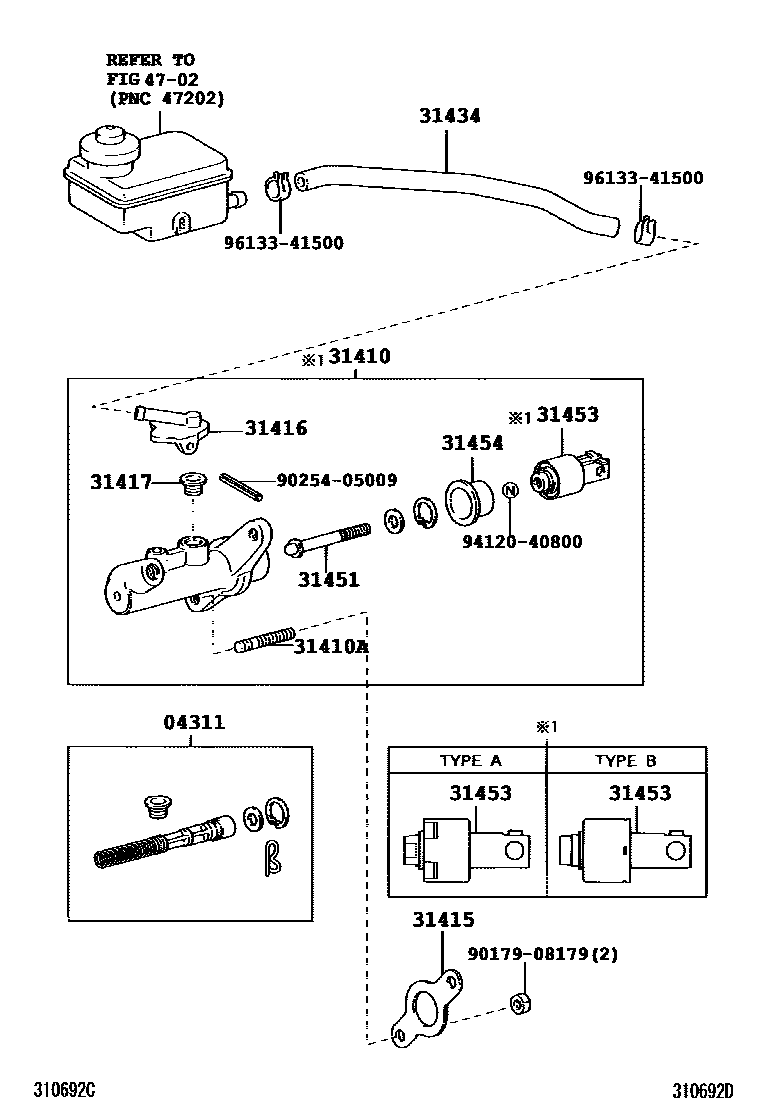

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-28030200002-200304

main04311-34020200002-200304

31410CYLINDER ASSY, CLUTCH MASTER

main31420-28140200002-200102

main31420-28141200102-200404

main31420-28150200002-200102

main31420-28151200102-200404

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08357200002-200404

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010200002-200404

31416UNION, CLUTCH MASTER CYLINDER INLET

main31416-42010200002-200404

31417GROMMET, CLUTCH RESERVOIR

main31417-35010200002-200404

31434TUBE, CLUTCH RESERVOIR

main31434-28100200002-200404

main31434-28110200002-200007

main31434-28111200007-200304

main31434-28140200102-200304

main31434-28190200304

main31434-28200200304-200404

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-36040200002-200404

main31451-42010200002-200404

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010200002-200102

main31404-28020200002-200102

main31404-35030200102-200404

main31404-44020200102-200404

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010200002-200404

main31454-16010200002-200404

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908179

main90179-08179

9025405009

main90254-05009

9412040800

main94120-40800

9613341500

main96133-41500

15 parts on this diagram · 2 diagrams in section
