Toyota PREVIA/TARAGO — CRANKSHAFT & PISTON

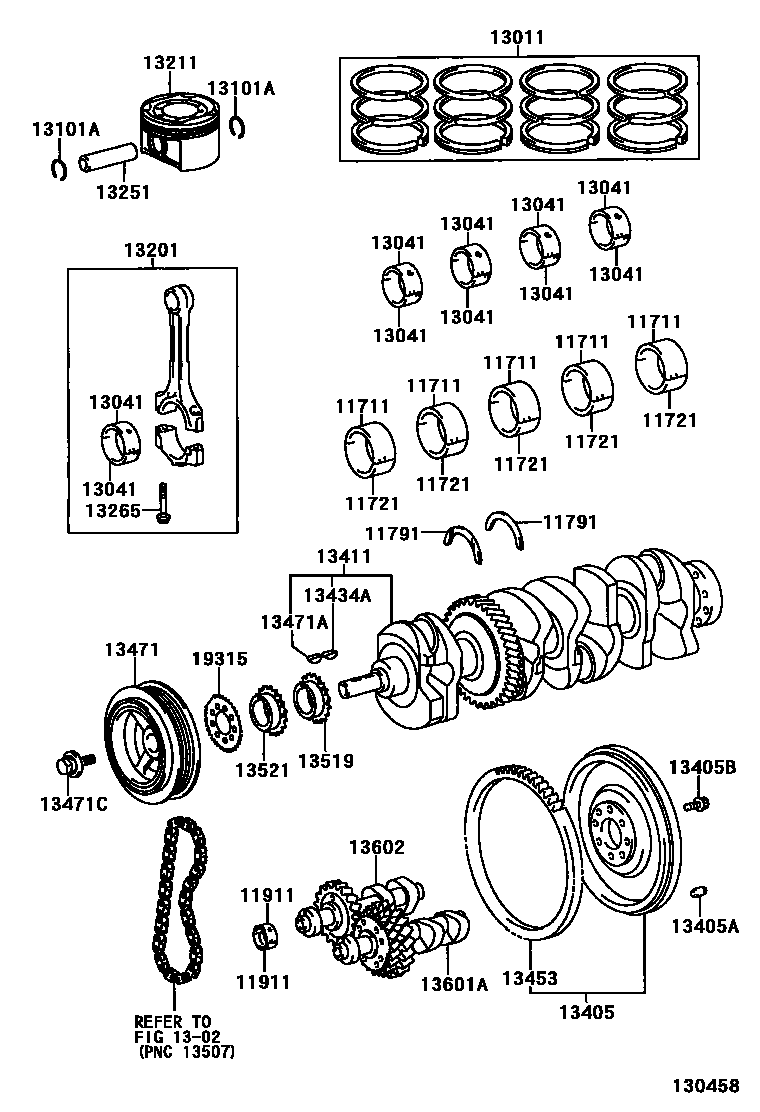

Parts diagram

11711BEARING, CRANKSHAFT

11721BEARING, CRANKSHAFT, NO.2

11791WASHER, CRANKSHAFT THRUST, UPPER

11911BEARING, BALANCESHAFT, NO.1

13011RING SET, PISTON

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

13041BEARING, CONNECTING ROD

13101PISTON SUB-ASSY, W/PIN

13101ARING, HOLE SNAP(FOR PISTON PIN)

13201ROD SUB-ASSY, CONNECTING

13211PISTON

13251PIN, PISTON

13265BOLT, CONNECTING ROD

13405FLYWHEEL SUB-ASSY

13405APIN, STRAIGHT(FOR FLYWHEEL)

13405BBOLT, FLYWHEEL SETTING

13411CRANKSHAFT

13434AKEY(FOR OIL PUMP DRIVE SPLINE)

13453GEAR, FLYWHEEL RING

13471PULLEY, CRANKSHAFT

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

13519GEAR, OIL PUMP DRIVE

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

13601ABALANCESHAFT SUB-ASSY, NO.1

13602BALANCESHAFT SUB-ASSY, NO.2

19315PLATE, CRANK ANGLE SENSOR, NO.1
